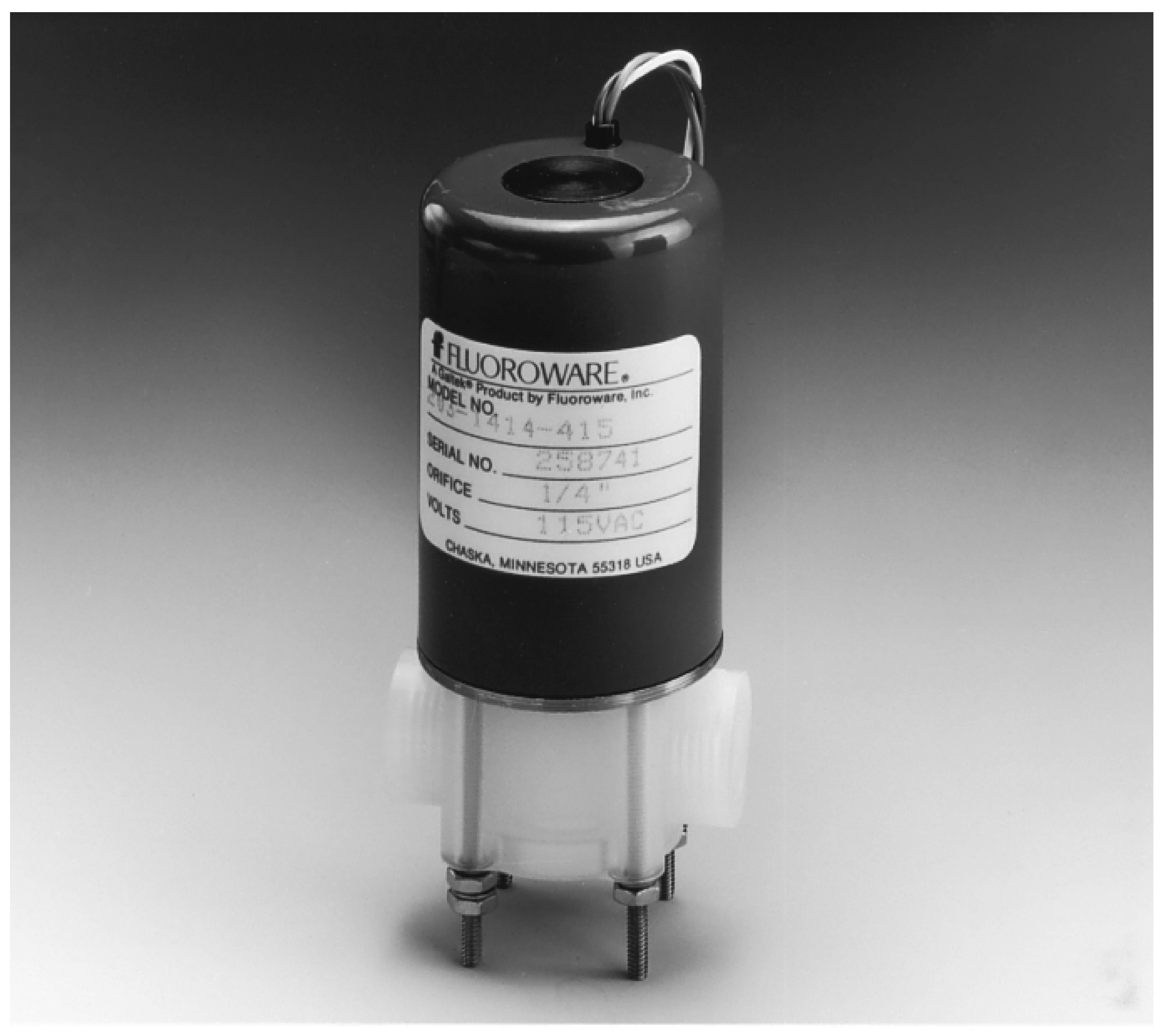

Galtek® Solenoid Valves, 1/4" Orifice, 2-way, Normally Closed

Download Image

Durable, long lasting 1/4" 2-way normally closed solenoid valves for your highly corrosive, hard to reach sampling, testing and environmental monitoring operations.

All wetted parts are PFA or Kalrez^®, offering high purity and corrosion resistance
Powerful, compact coil design
1/4" FNPT inlet and outlet port connections
Wide range of voltages available

Read More Read Less

Specify Your Part

Voltage

Electrical Housing

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Galtek® Solenoid Valves, 1/4" Orifice, 2-way, Normally Closed Applications

There are many areas our solenoid valves safely connect the CPI and Environmental industries:

Chemical Plant applications

Pilot plants to safely transport feed stocks, process chemicals an byproducts during development trials
Transport samples for process and effluent monitoring

Environmental Equipment applications

Continuous emission monitoring of stack gasses for the EPA
Groundwater monitoring
Purifying equipment used in water treatment

Specifications

Drawings

Panel Mount Instructions (see 2^nd drawing above)
Valve may be mounted to a customer supplied bracket using the 4-40 screws that extend at the base of the valve. Maximum panel thickness is 0.25" (6.4 mm).

Performance Data

Product Specifications

Pressure range	27" Hg vacuum (913 mbar) to 70 psig (483 kPa) at 0 outlet pressure. Refer to performance data.
Temperature range	0° to 100°F (-18° to 37°C), ambient, (for continuous duty) 0° to 175°F (-18° to 79°C), fluid
Flow factor	0.74 C_V (10.6 K_V)
Cycle speed	0.2 seconds
Materials	All wetted parts are PFA, with a Kalrez^® seal. Additional materials used for nonwetted parts include stainless steel.
Coil temperature	230°F (110°C) for continuous duty with ambient and fluid at 70°F (21°C).
Electrical specifications of solenoid operator	1% difference between inrush and holding current
Wire leads	Red: Voltage source, length 12" (305 mm) White: Neutral, length 12" (305 mm) Green: Ground, length 12" (305 mm)

Voltages	Inrush/Holding Current, AMPS	Watts
12 VDC	1.00	12
24 VDC	0.50	12
100 VAC - 50/60 Hz	0.15	15
115 VAC - 50/60 Hz	0.13	15
230 VAC - 50/60 Hz	0.065	15

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jul 20, 2022 Data Sheet Galtek® Solenoid Valves, 1/4" Orifice, 2-way, Normally Closed

300.8 kB

Published Jul 20, 2022 Data Sheet Galtek® Solenoid Valves, 1/4" Orifice, 2-way, Normally Closed - A4

300.9 kB

Part Numbers

Galtek® Solenoid Valves, 1/4" Orifice, 2-way, Normally Closed Part Numbers

Part Number	Voltage	Electrical Housing
203-1414-115	12 VDC	Grommet
203-1414-215	24 VDC	Grommet
203-1414-225	24 VDC	1/2" NPT conduit
203-1414-415	115 VAC	Grommet
203-1414-425	115 VAC	1/2" NPT conduit
