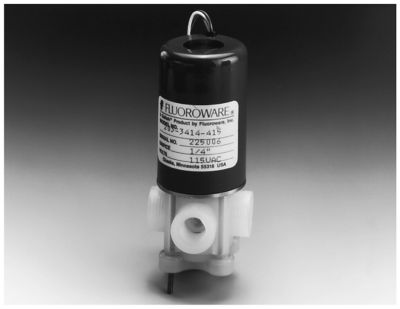

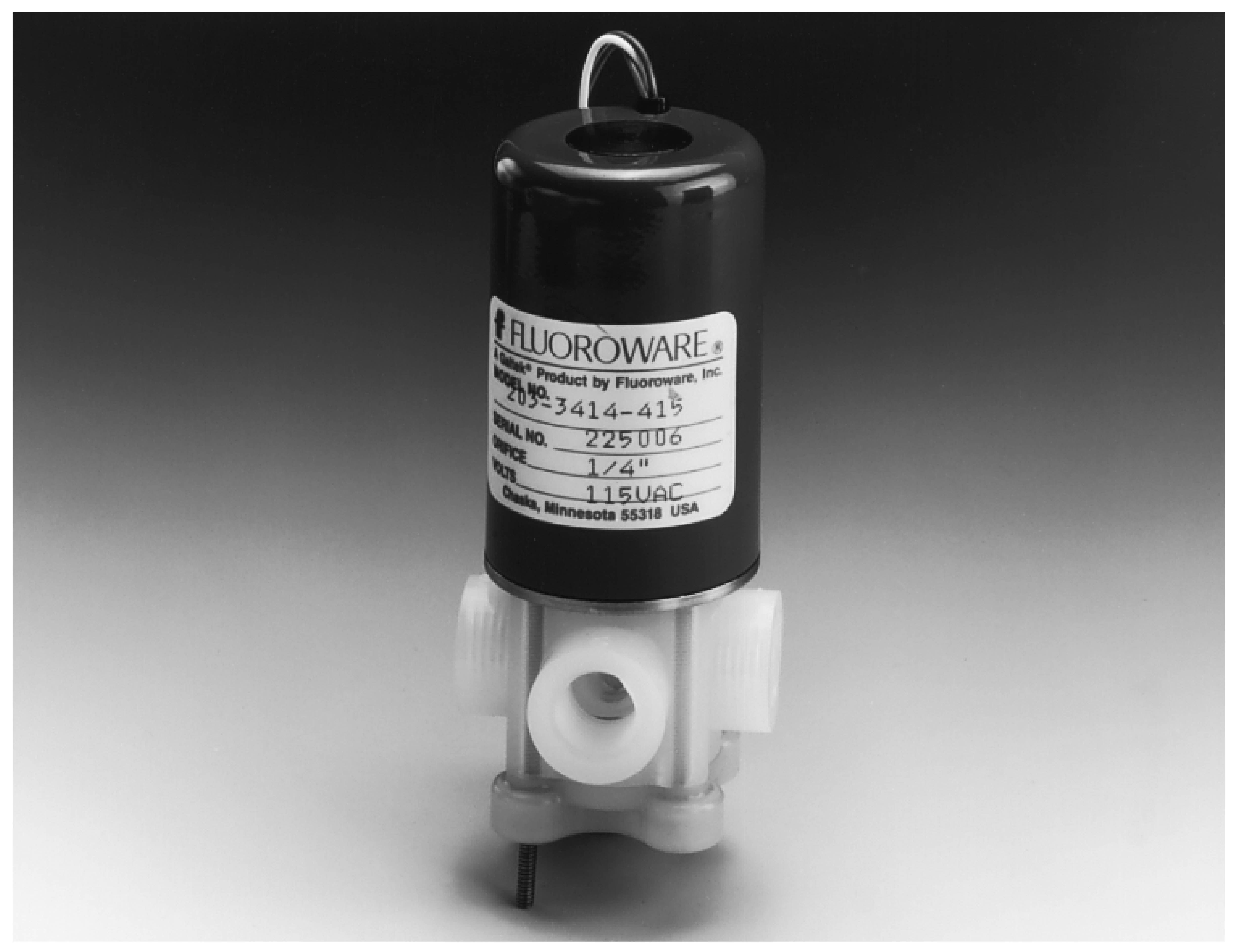

Galtek® Solenoid Valves, 1/4" Orifice, 3-way
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
There are many areas our solenoid valves safely connect the CPI and Environmental industries:
- Chemical Plant applications
- Pilot plants to safely transport feed stocks, process chemicals an byproducts during development trials
- Transport samples for process and effluent monitoring
- Environmental Equipment applications
- Continuous emission monitoring of stack gasses for the EPA
- Groundwater monitoring
- Purifying equipment used in water treatment
Specifications
| Part Number | Voltage | Housing | Port Connection |
| 203-3414-115 | 12 VDC | Grommet Electrical Housing | 1/4" FNPT |
| 203-3414-215 | 24 VDC | Grommet Electrical Housing | 1/4" FNPT |
| 203-3414-315 | 100 VAC - 50/60 Hz | Grommet Electrical Housing | 1/4" FNPT |
| 203-3414-415 | 115 VAC - 50/60 Hz | Grommet Electrical Housing | 1/4" FNPT |
| 203-3414-515 | 230 VAC - 50/60 Hz | Grommet Electrical Housing | 1/4" FNPT |
| 203-3414-225 | 24 VDC | 1/2" NPT Conduit Electrical Housing | 1/4" FNPT |
| 203-3414-425 | 115 VAC - 50/60 Hz | 1/2" NPT Conduit Electrical Housing | 1/4" FNPT |

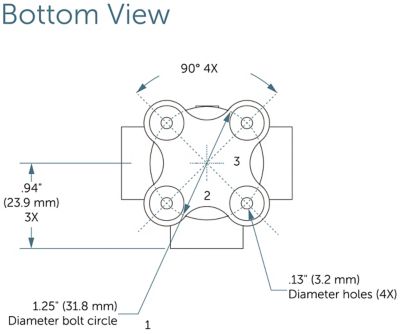

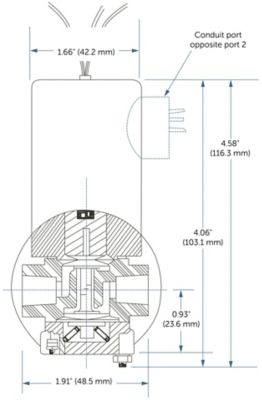

Panel Mount Instructions (see 2nd drawing above)
Valve may be mounted to a customer supplied bracket using the 4-40 screws that extend at the base of the valve. Maximum panel thickness is 0.25" (6.4 mm).
Function

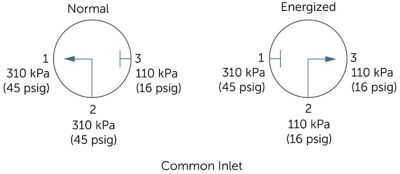

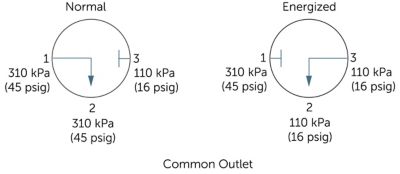

Valve can be used with either a common inlet or common outlet, (see 3rd and 4th drawings above).
Note: Flow direction from Port 1 to Port 2 with aqueous solutions not to exceed maximum delta pressure 15 psig.
| Pressure range: | 27" Hg vacuum (913 mbar) to 45 psig (310 kPa) (See functions diagrams above (3rd and 4th drawings)). | |
| Temperature range: | 0° to 100°F (-18° to 37°C), ambient for continuous duty 0° to 175°F (-18° to 79°C), fluid | |
| Flow factor: | When using inlet Port 2, 0.88 CV (12.6 KV) When using inlet Port 1 or 3, 0.76 CV (10.9 KV) | |
| Cycle speed: | .2 seconds | |
| Materials: | All wetted parts are PFA with Kalrez® seals. Additional materials used for nonwetted parts include: PVDF, Tefzel® and stainless steel. | |
| Coil temperature: | 230°F (110°C) for continuous duty with ambient and fluid at 70°F (21°C). | |
| Electrical specifications of solenoid operator: | 1% difference between inrush and holding current | |
| Wire leads: | Red: Voltage source, length 12" (305 mm) White: Neutral, length 12" (305 mm) Green: Ground, length 12" (305 mm) | |
| Voltages | Inrush/Holding Current, AMPS | Watts |
| 12 VDC | 1.00 | 12 |
| 24 VDC | .50 | 12 |
| 100 VAC - 50/60 Hz | .15 | 15 |
| 115 VAC - 50/60 Hz | .13 | 15 |
| 230 VAC - 50/60 Hz | .065 | 15 |
Successfully Opted for software Updates
| Part Number | Voltage | Electrical Housing |
|---|---|---|
| 203-3414-115 | 12 VDC | Grommet |
| 203-3414-215 | 24 VDC | Grommet |
| 203-3414-225 | 24 VDC | 1/2" NPT conduit |
| 203-3414-415 | 115 VAC- 50/60 HZ | Grommet |
| 203-3414-425 | 115 VAC- 50/60 HZ | 1/2" NPT conduit |
| 203-3414-515 | 230 VAC- 50/60 HZ | Grommet |
