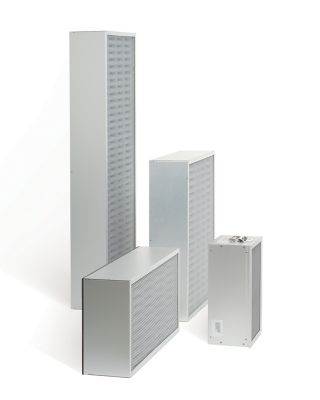

VaporSorb™ MET Chemical Filters
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- Metrology
Specifications
Materials | ||
---|---|---|
Casing: | Clear anodized aluminum | |
Media: | Application-specific blends of high performance adsorbents | |
Cover screens: | Clear anodized aluminum and polyester scrim | |
Gasket: | Closed cell polyethylene | |
Physical Performance | ||
Parameter | At | Target |
Air velocity distribution: | 9 points 0.1 m downstream of filter @ 0.5 m/s face velocity | Uniform distribution, variation ~0 |
Temperature/humidity variation: | 30 –70% RH 18°C –35°C (64°F–95°F) |
< 10% service life degradation |
Dust generation: | Particles per m3 | ISO 5-compliant |
Metal contaminants: | None detected | < 1 ng/L air |
Successfully Opted for software Updates
Part Number | Weight | Cover screens | Gasket (if used) | Depth | Height | Width |
---|---|---|---|---|---|---|
ESI005619-01 | 15.8 kg (35 lbs) | No | Yes | 149.8 mm (5.9") | 546.1 mm (21.5") | 800 mm (31.5") |
ESI006313-01 | <13.6kg (30 lbs.) | No | Yes | 172 mm (6.772") | 485 mm (19.094") | 1000 mm (39.370") |
ESI006314-01 | <11.3kg (25 lbs.) | No | Yes | 172 mm (6.772") | 485 mm (19.094") | 800 mm (31.496") |
