Fluorogard® FP/FP-HP Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Industry: Semiconductor, Data Storage, Flat Panel Display, Bulk Chemical, LED
- Process: Wet Etch and Clean, Bulk Chemical, Substrate Cleaning, Magnetic Head - Wet Etch and Clean, CDA, Organic layer printing, Bulk Gas Delivery
- Chemistry: Solvents, Aqueous Acids, Bases, Detergents, DI Water
- Installation Point: Point of Tool, Bulk, Facilities
Specifications
| Materials: | Membrane: Hydrophobic PTFE |
| Supports, core, sleeve and end caps: Polypropylene | |
| O-rings: EPDM, FKM, E-FKM | |

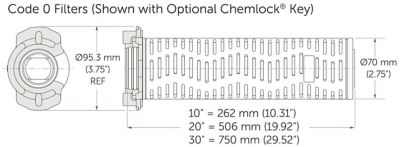

| Connections: | Code 0 (AS568-222 o-rings) |

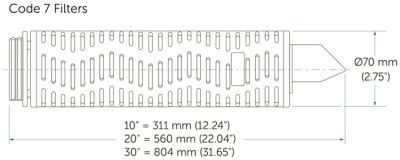

| Code 7 (AS568-226 o-rings) | |

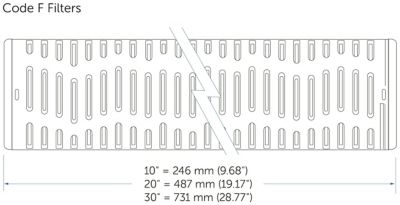

| Code F (EP, FKM gaskets) | |
| Retention rating: | 0.05, 0.10, 0.20, 0.50, 1.0, 3.0, 10.0 µm, 20 nm |
| Membrane area: | 10": 7,000 cm² (7.54 ft²) |
| 20": 14,000 cm² (15.1 ft²) | |
| 30": 21,000 cm² (22.6 ft²) | |
| Maximum operating conditions: | Maximum forward/reverse differential pressure: 0.34 MPa (3.4 bar, 50 psi) @ 25°C (77°F) |
| Maximum operating temperature: 90°C (194°F) |
FP-HP Specifications:
| Materials: | Membrane: Hydrophilic PTFE |
| For 10, 20 nm - prewet, nondewetting PTFE* | |
| Supports, core, sleeve and end caps: Polypropylene | |
| O-rings: EPDM, FKM, E-FKM | |
| Connections: | Code 0 (AS568-222 o-rings) |
| Retention rating: | 0.10, 0.20, 0.50, 1.0, 3.0, 10.0 µm, 10, 20 nm |
| Membrane area: | 10": 7,000 cm² (7.54 ft²) |
| 20": 14,000 cm² (15.1 ft²) | |
| 30": 21,000 cm² (22.6 ft²) | |
| Maximum operating conditions: | Maximum forward/reverse differential pressure: 0.34 MPa (3.4 bar, 50 psi) @ 25°C (77°F) |
| Maximum operating temperature: 90°C (194°F) | |
| * The prewet filter is enclosed in a bag containing DI water and 0.9% H₂O₂. Shelf life (prewet option) is one year. After installation is completed, drain and flush with 20 liters of DI water (per 10''). | |
