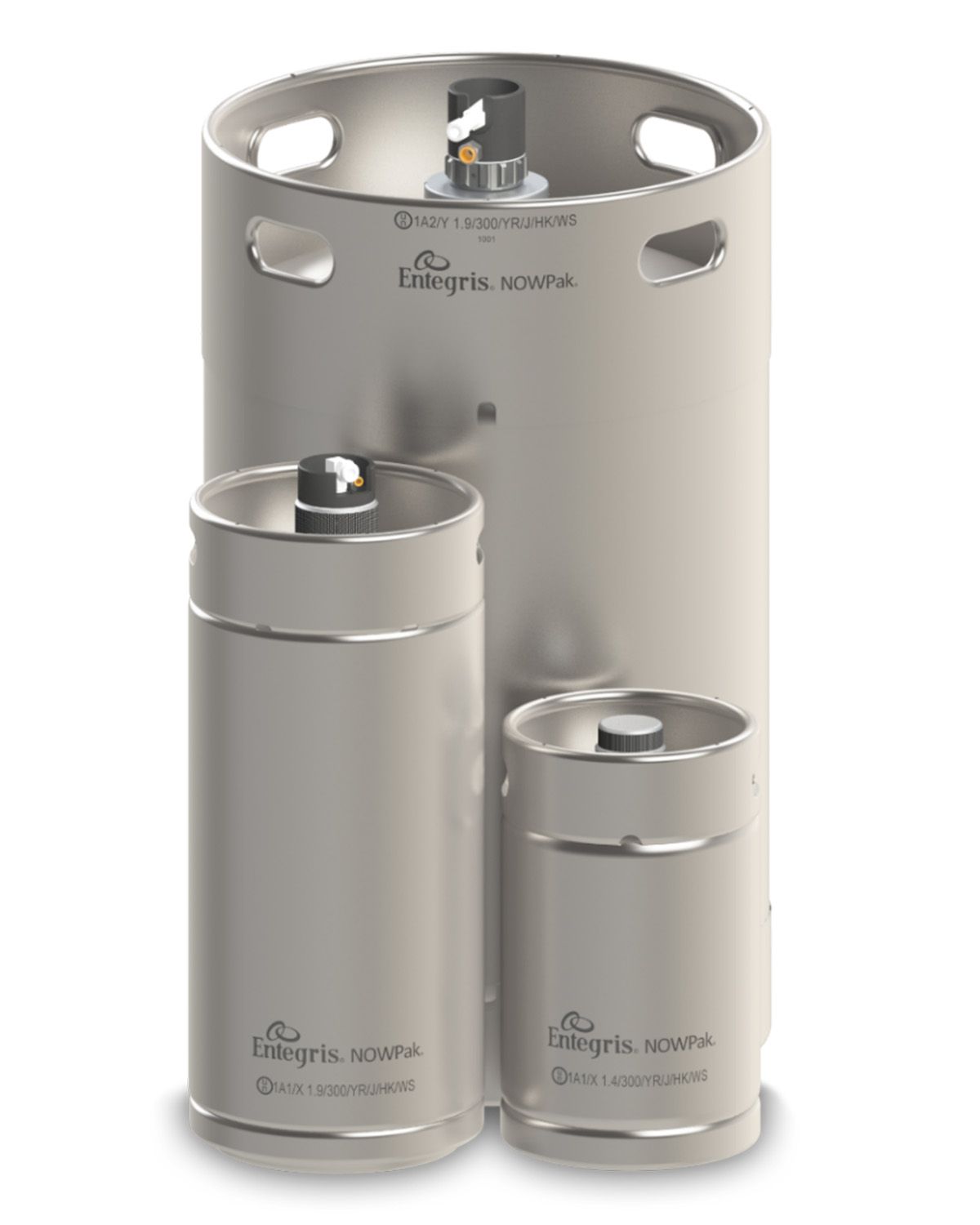

NOWPak® キャニスター
- フォトリソグラフィ材料
- 高純度の溶剤
- 製薬およびバイオ医薬品
- フラットパネルディスプレイ製造用のカラーフィルター材料
仕様書
| Part number | A (outside diameter) | B |
| NO-04 | 177 mm | 307 mm |
| NO-04-63 | 177 mm | 307 mm |
| NO-05 | 228 mm | 385 mm |
| NO-05-63 | 228 mm | 385 mm |
| NO-07 | 282 mm | 506 mm |
| NO-07-1 | 282 mm | 506 mm |
| NO-07-LE | 282 mm | 506 mm |
| NO-08 | 278 mm | 461 mm |
| NO-08A-63 | 280 mm | 461 mm |
| NO-08-63 | 278 mm | 461 mm |
| NO-09 | 228 mm | 621 mm |
| NO-09-63 | 228 mm | 621 mm |
| NO-40 | 317 mm | 714 mm |
| NO-40A | 317 mm | 714 mm |
| NO-40A-63 | 317 mm | 714 mm |
| NO-40-63 | 317 mm | 714 mm |
| NO-200 | 608 mm | 1002 mm |
| NO-200A | 608 mm | 1002 mm |
| NO-200-2 | 608 mm | 1002 mm |
ソフトウェアのバージョンアップ情報の送付が選択されました
-
NC-03
Two-piece aluminum breakseal closure, 2.5-12 UN thread, EPDM with PTFE coating closure O-ring, NA-09 type breakseal, for 4- to 40-liter canisters
-
NC-03-2
Two-piece aluminum breakseal closure, 2.5-12 UN thread, FEP-encapsulated silicone closure O-ring, NA-09 type breakseal, for 4- to 40-liter size canisters with 2.5-12 UN thread.
-
NCE-03
Two-piece aluminum breakseal closure, 2.5-12 UN thread, EPDM with PTFE coating closure O-ring, NA-49 type donut breakseal, for 4- to 40-liter canisters.
-
NC-04
Two-piece aluminum breakseal closure, 63 mm buttress thread, EPDM with PTFE coating closure O-ring, NA-09 type breakseal, for 4- to 40-liter canisters with 63 mm buttress thread.
-
NC-04-2
Two-piece aluminum breakseal closure, 63 mm buttress thread, FEP-encapsulated silicone closure O-ring, NA-09 breakseal, for 4- to 40-liter canisters with 63 mm buttress thread.
-
NCE-04
Two-piece aluminum breakseal closure, 63 mm buttress thread, EPDM with PTFE coating closure O-ring, NA-49 type donut breakseal, for for 4- to 40-liter canisters with 63 mm buttress thread.
-
NC-200-2
Two-piece aluminum breakseal closure, 4.75-4 UN thread, FEP-encapsulated silicone closure O-ring, NA-09 type breakseal, for use with liners with 2" fitment, 200-liter canisters.
-
NCE-200-2
Two-piece aluminum breakseal closure, 4.75-4 UN thread, FEP-encapsulated silicone closure O-ring, NA-49 type donut breakseal, for use with liners with a 2" fitment, 200-liter canisters.
-
NA-18
Torque wrench, 1/2" drive, for use with NA-10 torque adapter, for NC-03 and NC-04 type aluminum closures
-
NA-10
Torque adapter, 1/2" drive, for NC-03 and NC-04 type aluminum closures, works with NA-18 torque wrench
| 型番 | 製品タイプ | サイズ | キャニスターネックスレッド | プレッシャー リリーフ バルブ | Laser Etched |
|---|---|---|---|---|---|
| NO-04 | Standard | 4 L | UN 2.5-12ねじ | なし | なし |
| NO-04-63 | Standard | 4 L | 修正型のこ歯ねじ63 mm | なし | なし |
| NO-05 | Standard | 10 L | UN 2.5-12ねじ | なし | なし |
| NO-05-63 | Standard | 10 L | 修正型のこ歯ねじ63 mm | なし | なし |
| NO-07 | Standard | 20 L | 修正型のこ歯ねじ63 mm | なし | なし |
| NO-07-LE | Standard | 20 L | 修正型のこ歯ねじ63 mm | なし | あり |
| NO-08 | Standard | 19 L | UN 2.5-12ねじ | なし | なし |
| NO-08-63 | Standard | 19 L | 修正型のこ歯ねじ63 mm | なし | なし |
| NO-08A-63 | Advance | 19 L | 修正型のこ歯ねじ63 mm | なし | なし |
| NO-09-63 | Standard | 18 L | 修正型のこ歯ねじ63 mm | なし | なし |
| NO-200 | Standard | 200 L | 4.75-4のこ歯ねじ | なし | なし |
| NO-200A | Advance | 200 L | 4.75-4のこ歯ねじ | なし | なし |
| NO-200A-4 | Advance | 200 L | 4.75-4のこ歯ねじ | あり | なし |
| NO-40A | Advance | 40 L | UN 2.5-12ねじ | なし | なし |
| NO-40A-63 | Advance | 40 L | 修正型のこ歯ねじ63 mm | なし | なし |
