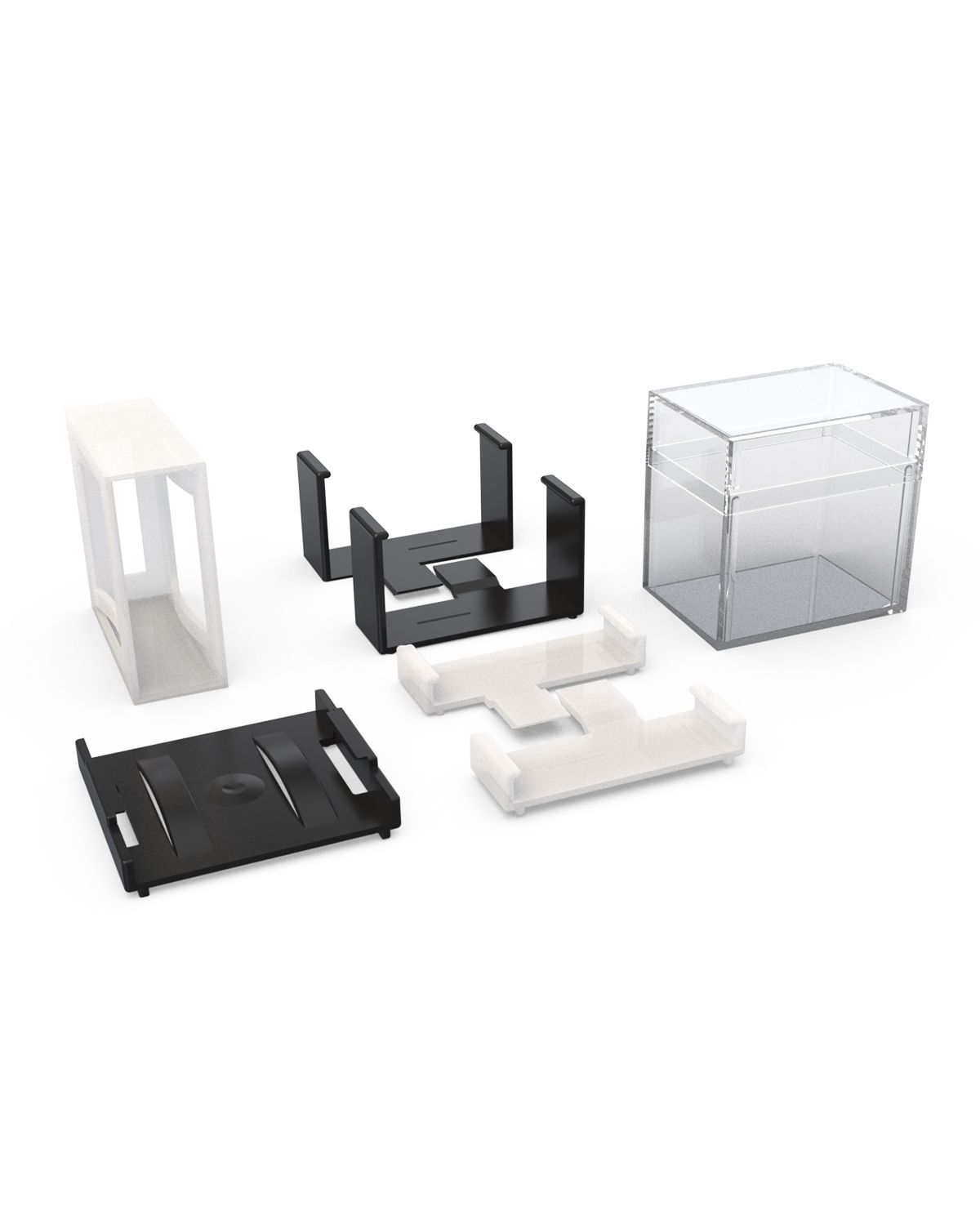

H20 Series Clips and Boxes
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
NOTE: H20T transfer clips hold two trays, stacked with faces together.
- For use with H20 Series 2" square bare die trays to ensure secure contact between trays and cover
Specifications
Chip Tray/Die Transfer Fixture |
Chip tray with die slides into bottom track of fixture. Empty tray is placed inverted over full tray. Holding the fixtures and trays, turn over, lift off fixture. The original tray with die will now be in the new tray. |
|
One-Piece Clip |
|
Pair of Clips |
|
Spring Box |
H20-SB06
|
H20-SB11
|
Successfully Opted for software Updates
Part Number | Product Type | Material | Capacity |
---|---|---|---|
E28-1216 | Clear box | Clear Styrene | 12 trays + 1 cover |
H20-04-0615 | Pair of clips | Natural polypropylene | 1 tray + 1 cover |
H20-04-61C02 | Pair of clips | STAT-PRO® 100 | 1 tray + 1 cover |
H20-041-0615 | Pair of clips | Natural polypropylene | 5 trays + 1 cover |
H20-043-0615 | Pair of clips | Natural polypropylene | 10 trays + 1 cover |
H20-043-61C02 | Pair of clips | STAT-PRO® 100 | 10 trays + 1 cover |
H20-04B-0615 | Clip | Natural polypropylene | 1 tray + 1 cover |
H20-04B-61C02 | Clip | STAT-PRO® 100 | 1 tray + 1 cover |
H20-04B-67C02 | Clip | STAT-PRO® 125 | 1 tray + 1 cover |
H20-SB06-0615 | Spring Box | Natural polypropylene | 5 trays + 1 cover |
H20-SB06-67C02 | Spring Box | STAT-PRO® 125 | 5 trays + 1 cover |
H20-SB11-0615 | Spring Box | Natural polypropylene | 10 trays + 1 cover |
H20-SB11-67C02 | Spring Box | STAT-PRO® 125 | 10 trays + 1 cover |
H20-SB13-0615 | Spring Box | Natural polypropylene | 12 trays + 1 cover |
H20T-1415 | Transfer Clip | Natural ABS | 2 trays |
H20T-66C02 | Transfer Clip | ChipSentry® | 2 trays |
NOTE: H20T transfer clips hold two trays, stacked with faces together.
