PFA Welding Rod
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Welding Information
The information on this page is an introduction to PFA and polypropylene welding techniques used by Entegris. It explains one method that can be used to join injection molded, rotomolded or extruded pieces to create a new part using PFA sheet stock or customize a part using welding rod.
Because it is PFA material, our welding rod is ideal in high purity and corrosive chemical environments. Common applications include:
- Welding PFA components
- Constructing welded assemblies
- Customizing PFA tanks
Specifications
Part Number | Size (diameter) |
AT060 | 1/16" |
AT125 | 1/8" |
Welding Equipment
To weld PFA rod, a welding tool is required. The welding tool (gun) is available from Laramy Products of Lyndonville, Vermont. There are several models available. The model best suited for use is the model #30-10. There are 17 gun tips available, and the tip most commonly used by Entegris is the NHS-1. The gun looks similar to a soldering iron but uses forced hot air to fuse rather than iron-to-material contact. Further information about the kit may be obtained from:
Laramy Products
http://laramyplasticwelders.com/
802.626.9328
Operation

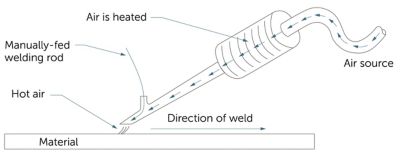

Welding is done by preheating the material with a hot air stream. The gun heats the air, but an air source must be provided by the gun. The welding rod is also preheated by the gun. When the materials are ready to be welded, the gun tip is simply run along the area where the weld is desired, feeding the welding rod manually in the process. The welding technique for PFA is similar to that used for polypropylene. However, the fusing temperature is much higher and added measures must be taken to ensure adequate ventilation.
Please contact Entegris if you have questions regarding welding PFA rod.
Warning
This information is offered as a service to our customers, but we cannot guarantee that favorable results will be obtained from the use of such information. It is intended for use by persons having technical skill, at their own discretion and risk. in addition, special precautions must be taken to ensure proper ventilation when working with fluorocarbon plastics at elevated temperatures. Further information on this subject may be obtained from The Chemours Company, https://www.chemours.com/.
