PureBond® Welding Tool Accessories
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Note: Tube cutter (213-30-1) is also available for cutting 1/4", 1/2", 3/4" and 1" pipe. To order this tool, refer to Accessories or Related Products on this page.
Replacement Insert Kit (213-28)
This kit includes replacement welding tool inserts for welding both 1/2" and 3/4" pipe.
Replacement Parts Kit (213-84)
This kit includes the following replacement welding tool parts for welding 1/4" pipe:
- Left and right replacement blades
- 1/4" gauging tool
- 1/4" thin inserts and screws
For use with our 1" and 2" benchmount PureBond welding equipment
Specifications

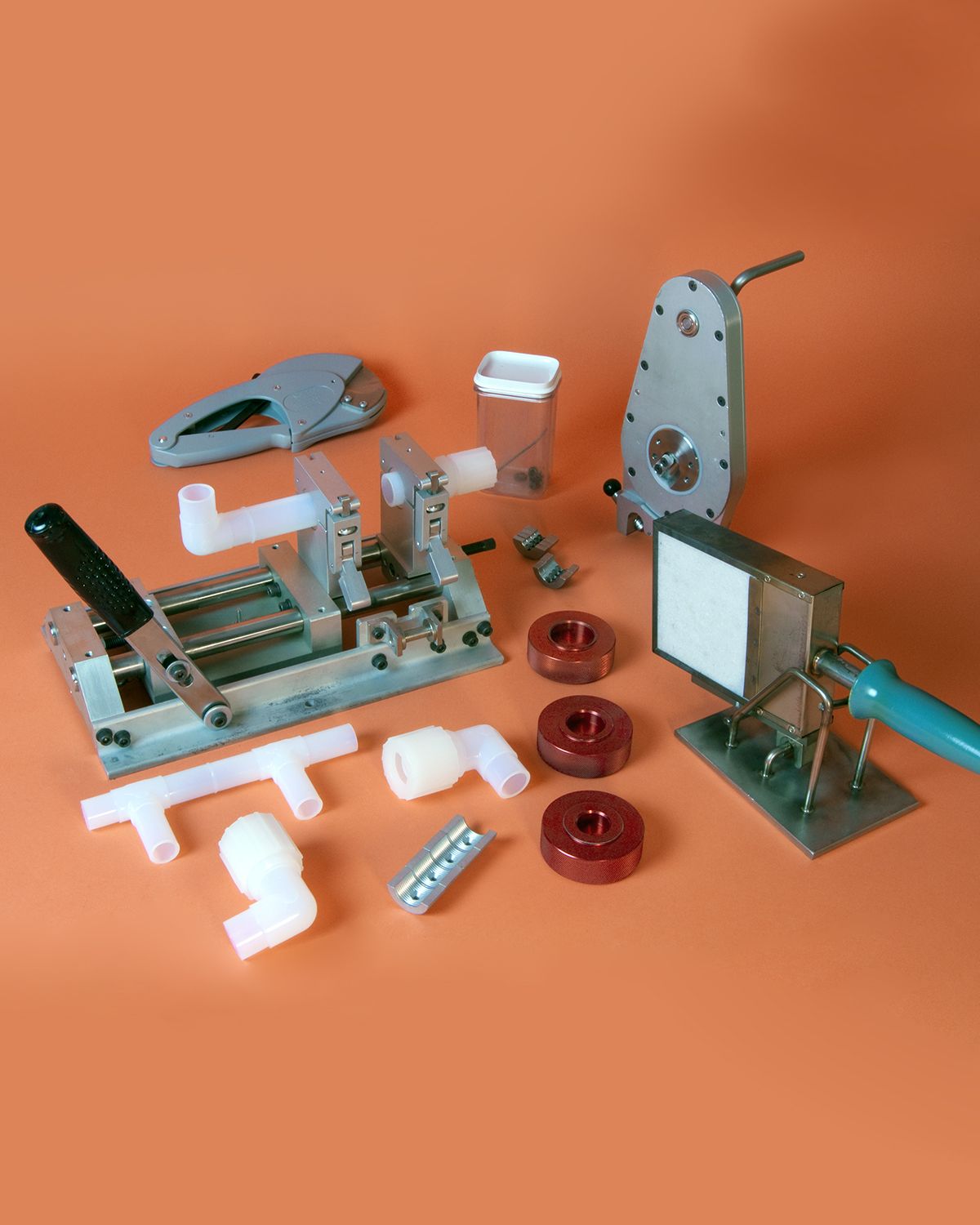

Not all PureBond welding tool accessories are shown above. Refer to the Part Number table at the bottom of this page for a complete list of available accessories.
| Part Number | Reference | Description | Part Number | Reference | Description | |
| A | Body | 1220-003 | I | 1/2" inserts - standard | ||
| 213-47 | B | 1" facing tool | 1220-004 | J | 3/4" inserts - standard | |
| 1223-014 | Right replacement blade | 213-28 | 1-kit with all parts | |||
| 1223-015 | Left replacement blade | 1220-079 | K | 1/2" inserts - thin | ||
| 213-33 | C | 1/2" gauging tool | 1220-078 | L | 3/4" inserts - thin | |
| 213-34 | D | 3/4" gauging tool | M | Heater | ||
| 213-35 | E | 1" gauging tool | 213-44 | M | 120 VAC 50/60 Hz heater | |
| 213-30-1* | F | Pipe shear with spacer plate | 213-45 | M | 100 VAC 50/60 Hz heater | |
| 213-31 | G | Heater holder | 213-46 | M | 230 VAC 50/60 Hz heater | |
| 213-48 | H | Thin clamp assembly |
*This pipe shear is also available for cutting 1/4", 1/2", 3/4", and 1" pipe. To order this tool, refer to Accessories or Related Products on this page.
Note: The PureBond welding process was developed by Entegris and is protected by patent number 4929293.
Successfully Opted for software Updates
-
213-30-1
Tube (1/8" to 1 1/2") and pipe (1/4" to 1") cutter
| Part Number | Product Type | Size | Type |
|---|---|---|---|
| 1220-003 | Inserts | 1/2" | For 1" welding tool |
| 1220-004 | Inserts | 3/4" | For 1" welding tool |
| 1220-179 | Inserts | 1/4" thin | For 1" welding tool |
| 1220-205 | Inserts | 1/2" | For 2" welding tool |
| 1220-206 | Inserts | 3/4" | For 2" welding tool |
| 1220-207 | Inserts | 1" | For 2" welding tool |
| 1220-208 | Inserts | 1 1/2" | For 2" welding tool |
| 1223-014 | Replacement blades | 1" | Right replacement |
| 1223-015 | Replacement blades | 1" | Left replacement |
| 1223-018 | Replacement blades | 2" | Single replacement blade |
| 1223-027 | Replacement chain for facing tool | 1" | For 1" welding tool |
| 1223-028 | Replacement chain for facing tool | 2" | For 2" welding tool |
| 1311-018 | Pipe shear | 2" | For 2" welding tool |
| 213-30BL | Replacement blades | 2" | Set of 2 replacement blades |
| 213-31 | Heater holder | N/A | For 1" or 2" welding tool |
| 213-33 | Gauging tool | 1/2" | For 1" or 2" welding tool |
| 213-34 | Gauging tool | 3/4" | For 1" or 2" welding tool |
| 213-35 | Gauging tool | 1" | For 1" or 2" welding tool |
| 213-36 | Gauging tool | 1 1/2" | For 2" welding tool |
| 213-47 | Facing tool | 1" | For 1" welding tool |
| 213-48 | Thin clamp assembly | 1" | For 1" welding tool |
| 213-51 | Facing tool | 2" | For 2" welding tool |
| 213-52 | Gauging tool | 2" | For 2" welding tool |
Note: Tube cutter (213-30-1) is also available for cutting 1/4", 1/2", 3/4" and 1" pipe. To order this tool, refer to Accessories or Related Products on this page.
Replacement Insert Kit (213-28)
This kit includes replacement welding tool inserts for welding both 1/2" and 3/4" pipe.
Replacement Parts Kit (213-84)
This kit includes the following replacement welding tool parts for welding 1/4" pipe:
- Left and right replacement blades
- 1/4" gauging tool
- 1/4" thin inserts and screws
