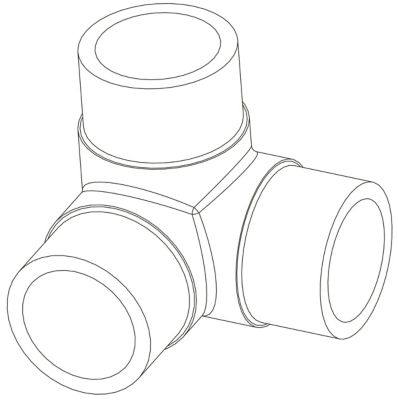

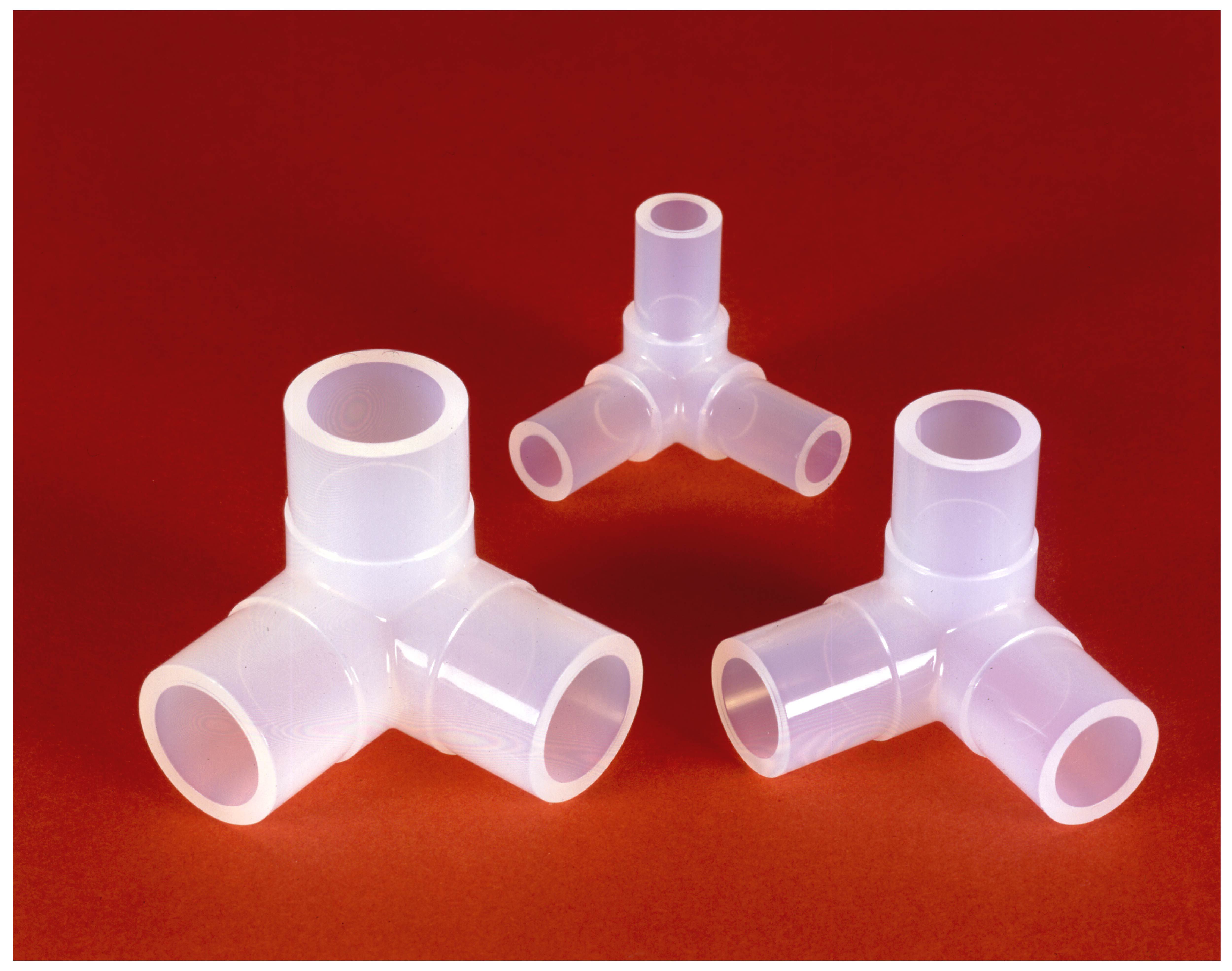

PureBond® Elbow Tee
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
Injection molded from PFA HP Plus material, this high performance material saves time and installation costs in these applications:
- Withstands the rigors of chemical blends containing fluorosurfactants found in process tools and chemical dispense modules within semiconductor applications
- Cleaning, lithography and chemical distribution applications used in data storage, flat panel and LED markets
Specifications

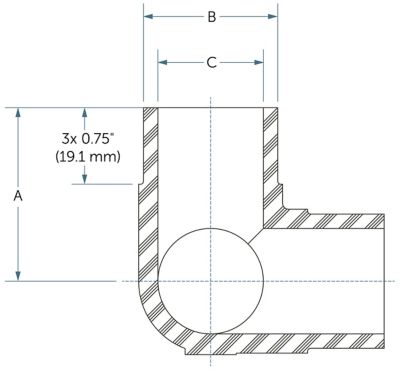

| Part Number | Pipe Size | Orifice | Dimensions | ||
| A | B | C | |||
| WET4SP-X | 1/4" | 0.36" (9.1 mm) | 1.25" (31.8 mm) | 0.54" (13.7 mm) | 0.35" (8.9 mm) |
| WET8SP-X | 1/2" | 0.62" (15.7 mm) | 1.45" (36.8 mm) | 0.84" (21.3 mm) | 0.61" (15.5 mm) |
| WET12SP-X | 3/4" | 0.82" (20.8 mm) | 1.55" (39.4 mm) | 1.05" (26.7 mm) | 0.81" (20.6 mm) |
