Spray Gun Accessories and Replacement Parts


  • No image available
Specify Your Part
Part Number:
Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Contact Us

Please fill out the form below and someone will contact you shortly. Have an account?

* Required
Please enter a first name
Please enter a last name
Please select a country
Please enter a valid email
Please enter a valid phone number.
Please enter your company.
You are required to accept the Captcha.
An error occurred while submitting your quote request. Please try again.
Cancel

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Ok

Accessories

Part NumberAccessoryDescription
221-01Filter0.5 micron PTFE membrane in polyethylene housing

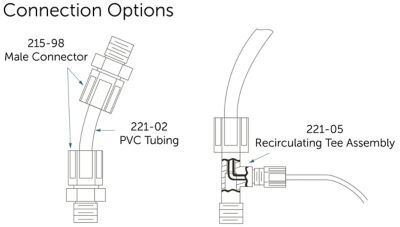

221-02Clear reinforced PVC tubing1/2" OD 8' length (Either two 215-98 fittings or one 215-98 and one 221-05 recirculating tee fittings are required for connection)
221-04Tube/fitting assemblyIncludes 8' length 1/4" OD FEP tubing and two C4-4N fittings (1/4" tube to 1/4" MNPT) of PFA
221-05Recirculating tee assemblyAllows for continuous DI water flow through the gun preventing possible bacteria formation that may occur in stagnant water. Consists of 10' of 1/8" OD tubing and one 215-55 fitting.
603-864Dispense cap0.20" (5.1 mm) diameter single hole, 0.35" (8.9 mm) diameter nozzle tip
221-62Recirculating kit for 1/2" PVC hoseIncludes tee fitting (215-129) and 10' FEP 1/2" tubing (ET125-030)
221-59, 221-60Coiled 3/8" OD FEP/PFA tubingTubing is not flared and stretches to 8' long
221-68, 221-69Coiled 3/8" OD FEP/PFA tubingIncludes 1/8" recirculation tubing preassembled

 Replacement Parts

Part NumberReplacement PartDescription
421-06Repair kitIncludes piston, pin-trigger, front and rear diaphragms of high purity PFA material, spring spool (tool required)
421-07Repair kitIncludes piston, pin-trigger, front and rear diaphragms of high purity PFA material, spring spool and 0.5 micron nitrogen filter (too required)
213-80Repair toolUsed to access front and rear gun diaphragm
600082xCapReplacement cap for nitrogen spray gun includes the nozzle
