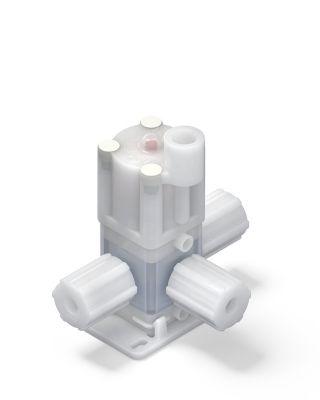

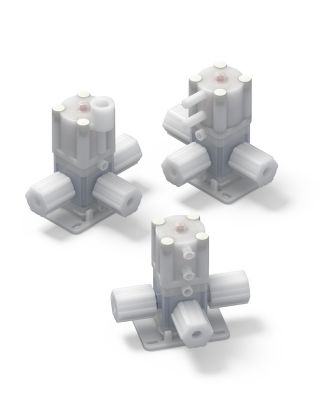

CR4 Series Pneumatic Valves, 3-way, Top Mount FNPT
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
Accessories
Part Numbers
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- High-purity corrosive chemical handling
- All semiconductor wet etch and clean (WEC) process chemicals
- Chemical line sizes 3/8" or smaller
Specifications
Durable Valves for Harsh Environments
- With no exposed metal hardware, the CR4 Series valve is completely sealed and protected from harsh chemical environments
- The modular design enables manifold customization into your fluid delivery system
- Designed with the same footprint as our stand-alone and manifold Galtek® SG Series valves and Dymension® valve manifolds, allowing for easy retrofits or replacement
| Dimensions | ||||
| Port Connection | Flow Factor | A | B | C |
| 1/4" Flaretek | 0.3 Cv (4.0 Kv) | 75.9 mm (2.99") | 58.4 mm (2.30") | 38.1 mm (1.50") |
| Materials | All wetted parts | PTFE, PFA | |
| Exterior actuator parts | PVDF, Viton® | ||
| Interior actuator parts | PVDF, SST, Viton | ||
| Mounting base | PVDF | ||
| Operating conditions |
Media pressure at | 21°C (70°F) | All ports - 552 kPa (80 psig)* |
| 130°C (266°F) | Common port - 276 kPa (40 psig)*, ** | ||
| 130°C (266°F) | NO/NC ports - 207 kPa (30 psig)*, ** | ||
| Actuation pressure | 21°C (70°F) | 414 - 552 kPa (60-80 psig)* | |
| 130°C (266°F) | 414 -483 kPa (60-70 psig)* | ||
| Temperature range | Ambient | 21°C - 50°C (70°F - 122°F)* | |
| Fluid | 21°C - 130°C (70°F - 266°F)* | ||
| Pneumatic supply port | 1/8" FNPT | ||
| Compliant | RoHs, WEE | ||
*Actual valve performance varies with pressure and temperature; refer to actual ratings in performance data.
**If media temperatures are 100°C or more, it is recommended to remove or cycle actuation pilot pressure when temperature is reduced to 30°C or less.
Successfully Opted for software Updates
-
01-006010
Mounting base for use with all 1/4" 3-way CR4 Series and SG Series valves
| Part Number | Port Connection | Options | Port 1 Configuration |
|---|---|---|---|
| CR4-3CN-4F | 1/4" Flaretek® | PVDF Flaretek® nut | Standard (normally open) |
| CR4-3CN-4F-1C | 1/4" Flaretek® | PVDF Flaretek® nut | Reverse (normally closed) |
