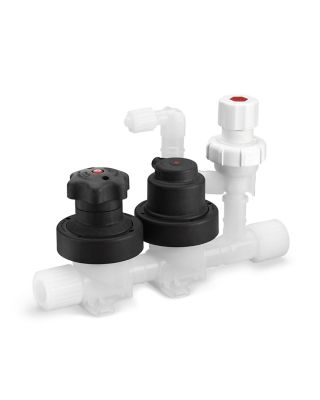

PureBond® Assemblies
Contact your Entegris account manager or
Specifications
Your Need
Working with you, we will translate your need into a solution, whether it be a subassembly or an entire system. our experience in fluid handling and with PFA will ensure your need receives dedicated attention to reach a viable solution. Some of our PureBond® fusible piping applications include:
- Visible liquid in sight gauge or level indicator
- Connection between two different connector styles such as flange to NPT
- Reduction in line size with several regulated drops, some manually controlled, some pneumatically controlled
- instrument drops to flexible tube transport system
- Manifold assemblies used in bulk chemical delivery systems
Quotation
Your need will be thoroughly evaluated and a quotation will be developed. Items included in the evaluation included, but are not limited to:
- Product definition
- Pressure/temperature profile
- Product detail such as size, volume, type of material that will be handled
- Special tooling or fixtures
Your Design
After the quotation has been accepted, your design will be created. Experienced engineers and designers will execute this design using our modern CAD system to design quickly and accurately to your specifications. Designs will encompass:
- Drafting
- Layout
- New component molding
- Special dimensions
- 3-dimensional configurations such as special angles
The design process can include your formal approval of a design drawing.
Many components can be used in your design, including:
- Manual and pneumatic valves
- Unions, flange adapters, grooved flange adapters, NPT adapters, flared and integral ferrule tube adapters
- Needle and check valves
- Elbows, tees and caps
- Reducers and reducer adapters
- Filter housings
- Different materials based on your chemistries
Fabrication
Using more than 50 years of fluid handling experience, well-trained employees and a controlled manufacturing facility, your design will be transformed into the actual assembly. Our patented PureBond welding process secures your components into a leak-free network. Whatever the design requires - standard, minimum or special - our experienced technicians will perform them with precision. Special fixtures can be created to hold your complex structures. After fabrication, your assembly is functionally tested to ensure weld integrity. After testing, your assembly is packaged to maintain its cleanliness.
Solution
The product you needed is now ready. And, you can expect the same quality from this custom assembly or system as you do of any Entegris component. We use high-quality resins, workmanship and expertise when designing and manufacturing your custom product.
