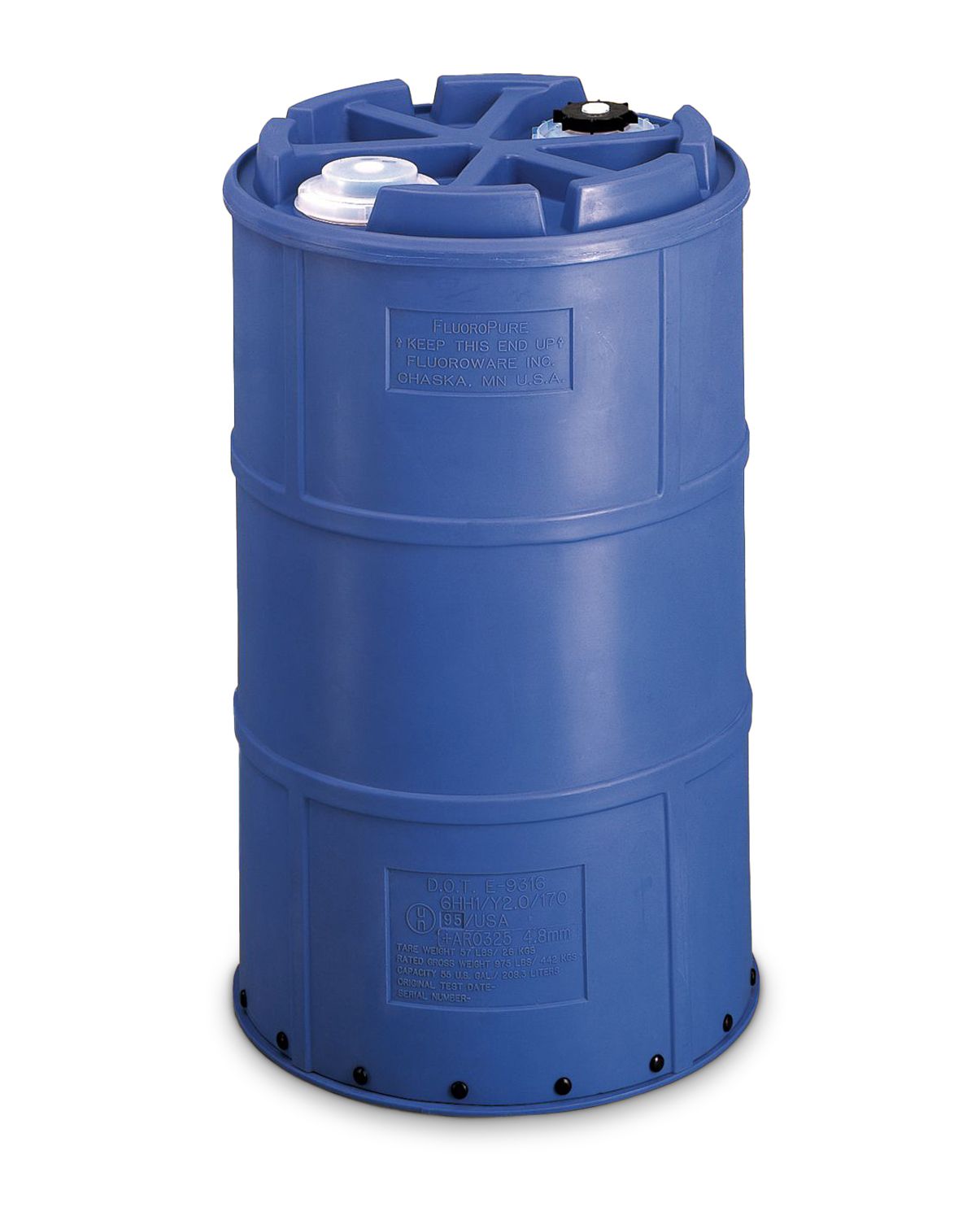

FluoroPure® PFA/PE Composite Drum Retrofit Kit
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
For detailed instructions on how to retrofit a metal overpack FluoroPure drum with a polyethylene overpack, please contact Entegris.
Specifications

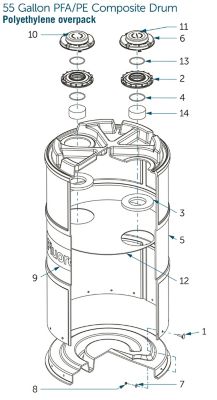

55 Gallon/200 liter - PE overpack (see 1st drawing)
Retrofit kit part number 151-20-55R includes items 1-14.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| 01-004011 | 1 | Bolt | 16 | 01-004472 | 8 | Lock nut | 16 |
| 151-1-1 | 2 | Bung sleeve adapter | 2 | N/A | 9 | Label | 2 |
| 151-5 | 3 | PE foam ring | 2 | N/A | 10 | Label | 1 |
| 1610-232 | 4 | FEP encapsulated silicone o-ring | 2 | N/A | 11 | Label | 1 |
| N/A | 5 | PE overpack | 1 | N/A | 12 | PE plate | 1 |
| 153-34-1 | 6 | Tamper evident dustcover | 2 | 1609-231 | 13 | FEP encapsulated silicone o-ring | 2 |
| 1523-021 | 7 | Flat washer | 16 | N/A | 14 | Dustcover | 1 |
| 151-20-55H | -- | Assembly hardware | 1 (16 sets) |

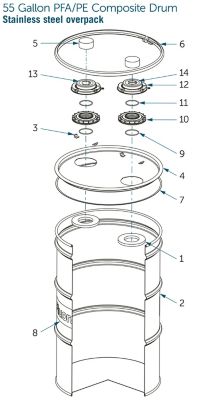

55 Gallon/200 liter - SST overpack (see 2nd drawing)
Retrofit kit 151-20-55 includes items 1-14.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| 151-5 | 1 | PE foam ring | 2 | N/A | 8 | Label | 2 |
| N/A | 2 | SST overpack | 1 | 1609-232 | 9 | FEP encapsulated silicone o-ring | 2 |
| 1220-052 | 3 | Stainless steel clip | 4 | 151-1-1 | 10 | Bung sleeve adapter | 2 |
| N/A | 4 | Stainless steel lid | 1 | 1610-231 | 11 | FEP encapsulated silicone o-ring | 2 |
| N/A | 5 | Dustcover | 2 | 151-34-1 | 12 | Tamper evident dustcover | 2 |
| N/A | 6 | Closure ring | 1 | N/A | 13 | Label | 1 |
| 01-009650 | 7 | Gasket | 1 | N/A | 14 | Label | 1 |

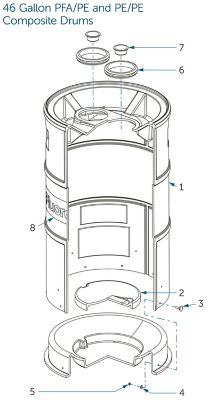

46 Gallon/175 liter - PFA/PE and PE/PE (see 3rd drawing)
Retrofit kits 151-20-43R and 151-20-46R includes items 1-8.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| N/A | 1 | PE overpack for PFA/PE | 1 | 01-004472 | 5 | Lock nut | 10 |
| N/A | 1 | PE overpack for PE/PE | 1 | 1330-010 | 6 | Grommet | 2 |
| N/A | 2 | Support plate | 1 | N/A | 7 | Dustcover | 2 |
| 01-004011 | 3 | Bolt | 10 | N/A | 8 | Label | 2 |
| 1523-021 | 4 | Flat washer | 10 | 151-20-46H | -- | Assembly hardware | 1 (10 sets) |

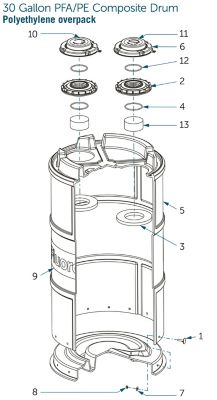

30 Gallon/100 liter - PE overpack (see 4th drawing)
Retrofit kit 151-20-30R includes items 1-13.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| 01-004011 | 1 | Bolt | 16 | 01-004472 | 8 | Lock nut | 16 |
| 151-1-1 | 2 | Bung sleeve adapter | 2 | N/A | 9 | Label | 2 |
| 151-5 | 3 | PE foam ring | 2 | N/A | 10 | Label | 1 |
| 1609-232 | 4 | FEP encapsulated silicone o-ring | 2 | N/A | 11 | Label | 1 |
| N/A | 5 | PE overpack | 1 | 1610-231 | 12 | FEP encapsulated silicone o-ring | 2 |
| 151-34-1 | 6 | Tamper evident dustcover | 2 | N/A | 13 | Duscover | 2 |
| 1523-021 | 7 | Flat washer | 16 | 151-20-55H | -- | Assembly hardware | 1 (16 sets) |

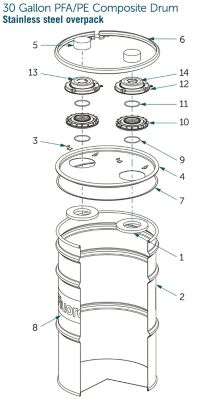

30 Gallon/100 liter - SST overpack (see 5th drawing)
Retrofit kit 151-20-30 includes items 1-14.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| 151-5 | 1 | PE foam ring | 2 | N/A | 8 | Label | 2 |
| N/A | 2 | Stainless steel overpack | 1 | 1610-232 | 9 | FEP encapsulated silicone o-ring | 2 |
| 1220-052 | 3 | Stainless steel clip | 4 | 151-1-1 | 10 | Bung sleeve adapter | 2 |
| N/A | 4 | Stainless steel lid | 1 | 1610-231 | 11 | FEP encapsulated silicone o-ring | 2 |
| N/A | 5 | Dustcover | 2 | 151-34-1 | 12 | Tamper evident dustcover | 2 |
| N/A | 6 | Closure ring | 1 | N/A | 13 | Label | 1 |
| 01-009650 | 7 | Gasket | 1 | N/A | 14 | Label | 1 |

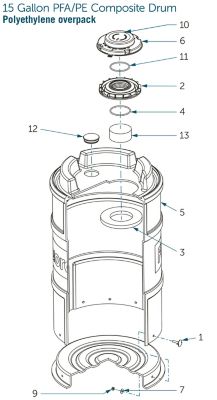

15 Gallon/50 liter - PE overpack (see 6th drawing)
Retrofit kit 151-20-15R includes items 1-13.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| 01-004011 | 1 | Bolt | 12 | 01-004472 | 8 | Lock nut | 12 |
| 151-1-1 | 2 | Bung sleeve adapter | 1 | N/A | 9 | Label | 2 |
| 151-5 | 3 | PE foam ring | 1 | N/A | 10 | Label | 1 |
| 1609-232 | 4 | FEP encapsulated silicone o-ring | 1 | 1610-231 | 11 | FEP encapsulated silicone o-ring | 1 |
| N/A | 5 | PE overpack | 1 | N/A | 12 | Dustcover | 1 |
| 151-34-1 | 6 | Tamper evident dustcover | 1 | N/A | 13 | Dustcover | 1 |
| 1523-021 | 7 | Flat washer | 12 | 151-20-55H | -- | Assembly hardware | 1 (16 sets) |

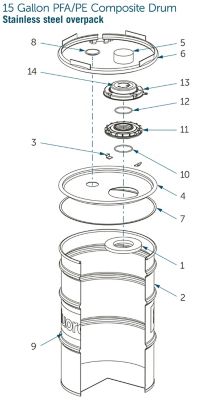

15 Gallon/50 liter - SST overpack (see 7th drawing)
Retrofit kit 151-20-15 includes items 1-14.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| 151-5 | 1 | PE foam ring | 1 | N/A | 8 | Dustcover | 1 |
| N/A | 2 | Stainless steel overpack | 1 | N/A | 9 | Label | 2 |
| 1220-052 | 3 | Stainless steel retaining clips | 2 | 1609-232 | 10 | FEP encapsulated silicone o-ring | 1 |
| N/A | 4 | Stainless steel lid | 1 | 151-1-1 | 11 | Bung sleeve adapter | 1 |
| N/A | 5 | Dustcover | 1 | 1610-231 | 12 | FEP encapsulated silicone o-ring | 1 |
| 01-018201 | 6 | Closure ring | 1 | 151-34-1 | 13 | Tamper evident dustcover | 1 |
| 01-009650 | 7 | Gasket | 1 | N/A | 14 | Label | 1 |

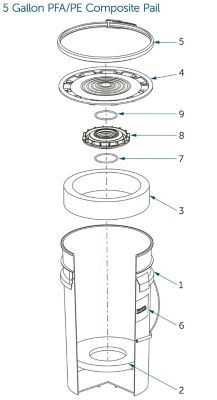

5 Gallon/15 liter Pail (see 8th drawing)
Retrofit kit 151-20-05R includes items 1-9.
| Part Number | Item | Description | Quantity | Part Number | Item | Description | Quantity |
| 1021-020 | 1 | PE pail | 1 | N/A | 6 | Label | 2 |
| N/A | 2 | Bottom foam ring | 1 | 1609-232 | 7 | FEP encapsulated silicone o-ring | 1 |
| N/A | 3 | Upper foam ring | 1 | 151-1-1 | 8 | Bung sleeve adapter | 1 |
| N/A | 4 | Pail lid | 1 | 1610-231 | 9 | FEP encapsulated silicone o-ring | 1 |
| 1022-012 | 5 | Closure ring | 1 |
Note: For detailed instructions on how to retrofit a metal overpack FluoroPure drum with a polyethylene overpack please contact Entegris.
Certification ratings and test reports for each size are available upon request. Please contact Entegris for more information.
