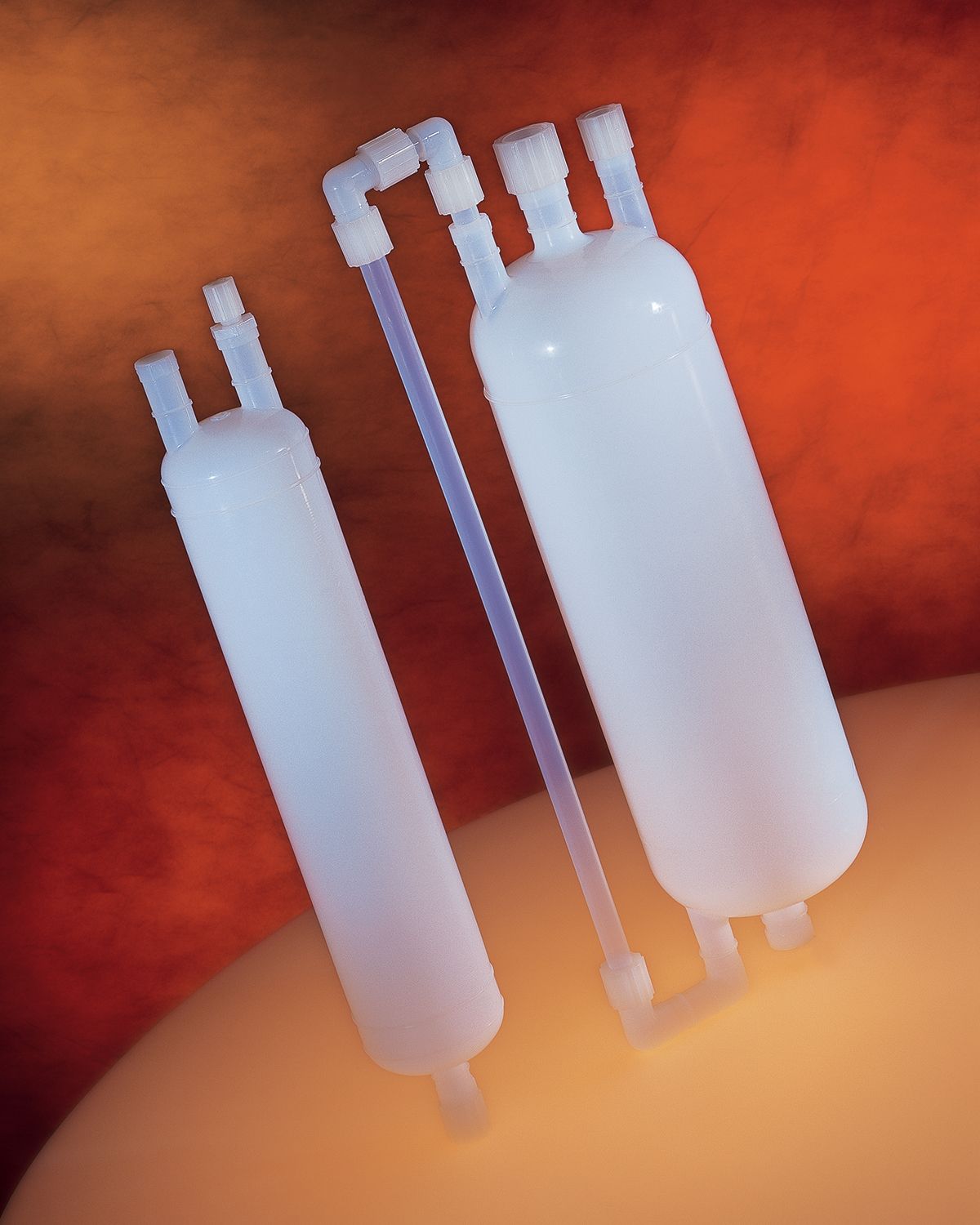

FluoroPure® 6" Diameter PFA Custom Pressure Vacuum Vessel
Contact your Entegris account manager or
Customization
Due to the potential variety of overall length options, end caps styles and fitting configurations and sizes, each pressure vessel is handled as a custom assembly. Custom features may include:
- The number of port connections
- Pipe length
- Connection type
- Addition of sight tubes
Configurations

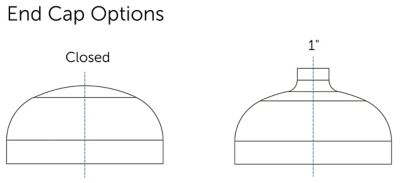

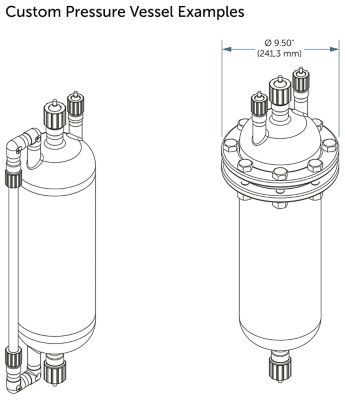

To accommodate your specialized needs, we have designed the 6" pressure vessel with flexibility in mind. Two basic vessel configurations are available. On one vessel you may choose to have the injection molded end caps permanently connected to the pipe body by using our patented fusion process. This option eliminates the o-ring seal and potential leak points associated with it. On another vessel you may opt for a flanged end cap so you can remove the top - a featured designed for easy cleaning.
Please contact Entegris for ordering information.
- Fill and dispense applications in bulk chemical delivery equipment
Specifications
| Pipe outside diameter: | 6.60" (168 mm) |
| Pipe wall thickness: | 0.34" (9 mm) |
| Maximum pressure: | 80 psig (552 kPa) at 77°F (25°C) |
| Maximum vacuum: | 25" Hg (847 mbar) at 77°F (25°C) |
| Pipe and end caps: | PFA material |

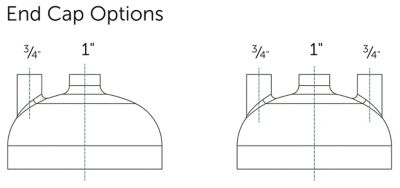

| Port configurations: | Various combinations with a maximum of 3 on top and 3 on bottom |
| Port connections: | Ports accommodate all standard Entegris tube adapter fittings including PrimeLock®, Flaretek®, PureBond® and Quikgrip® |
Note: PureBond pipe fittings must be used to maintain the pressure ratings listed. The pressure ratings referenced do not take into account all fitting combinations that may be used on the vessel. The pressure rating would be determined using the pressure rating for the component with the lowest maximum pressure rating.
