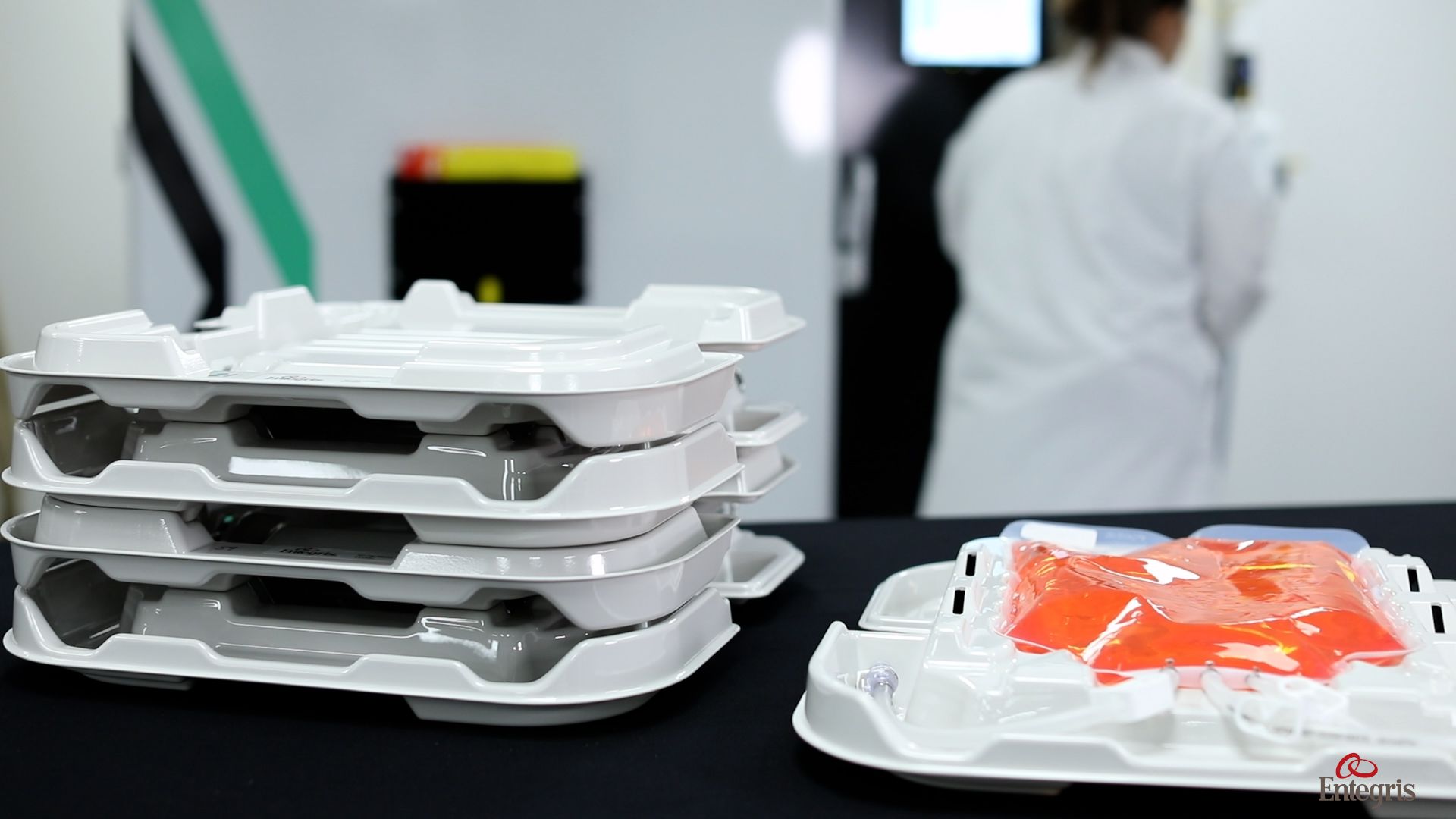

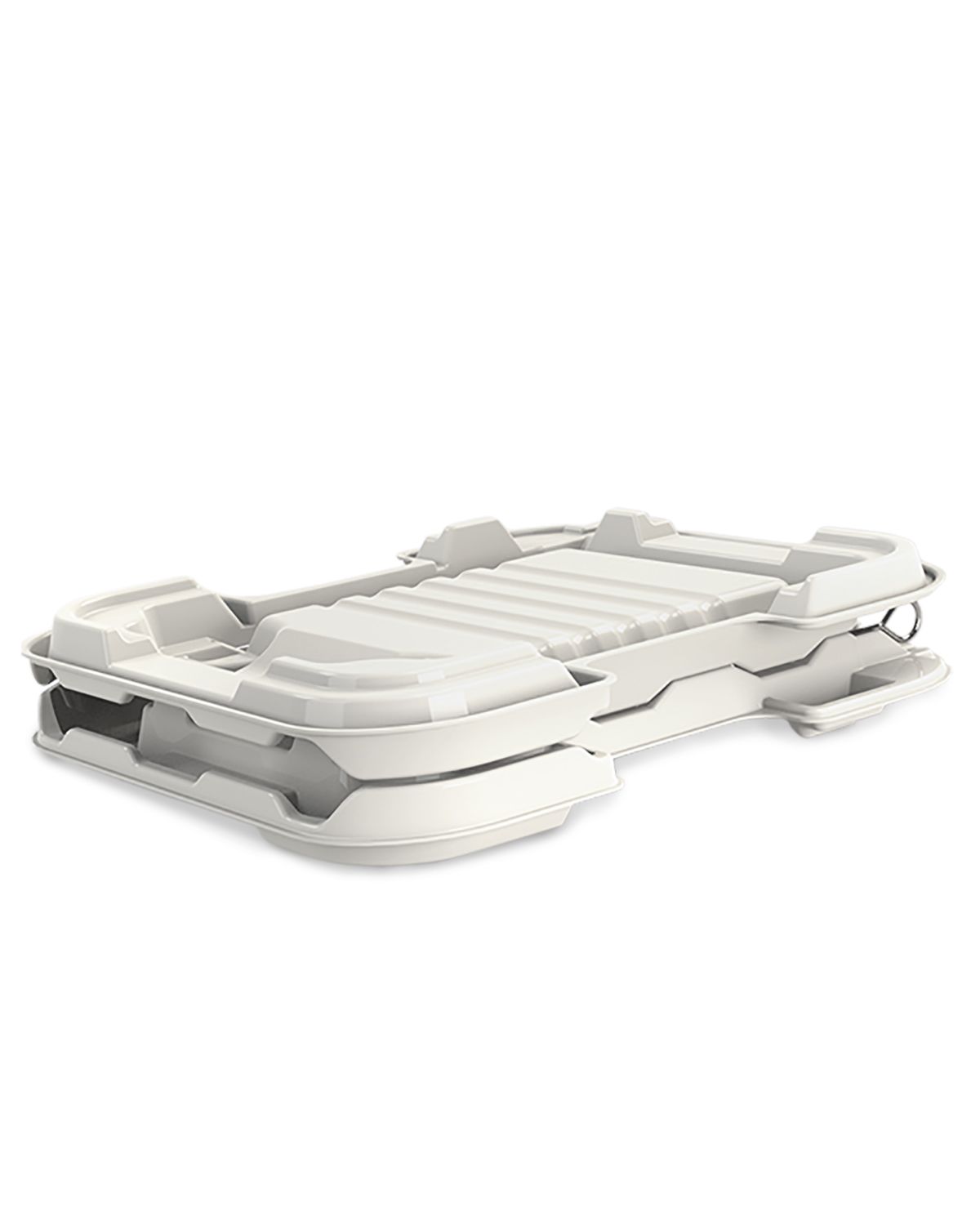

Blast Freezing Shells
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- Tray for handling Aramus bag assemblies
- Bulk-drug filling and draining
- Bulk-drug freezing and storage
- Bulk-drug shipment
- Cold-chain support
Specifications
Size | A | B | C |
2 L | 505 mm (19.9”) | 445 mm (17.5”) | 114 mm (4.5”) |
5 L | 584 mm (23.0”) | 523 mm (20.6”) | 122 mm (4.8”) |
Thermal Performance
2 L Shell Thermal Performance | 5 L Shell Thermal Performance | ||||
FREEZER | FLUID VOLUME | TIME 20°C TO -80°C | FREEZER | FLUID VOLUME | TIME 20°C TO -80°C |
Forced Air | 2 L | 5 H | Forced Air | 5 L | 10 H |
Convection | 10 L | 8 H | Convection | 25 L | 13 H |
Freezer | 18 L | 8 H | Freezer | 45 L | 12 H |
Cold Wall Freezer 1 | 2 L | 11 H | Cold Wall Freezer 1 | 5 L | 17 H |
10 L | 17 H | 25 L | 36 H | ||
48 L | 65 H | 50 L | 56 H | ||
Cold Wall Freezer 2 | 2 L | 14 H | Cold Wall Freezer 2 | 5 L | 22 H |
10 L | 23 H | 25 L | 44 H | ||
22 L | 33 H | 50 L | 89 H | ||
Cold Wall Freezer 3 | 2 L | 13 H | Cold Wall Freezer 3 | 5 L | 23 H |
10 L | 24 H | 25 L | 41 H | ||
22 L | 33 H | 50 L | 68 H |
Materials of construction | Polycarbonate (PC), stainless steel | |
Polycarbonate halves are complaint with TSE/BSE, Reach, RoHS, Latex Free, Phthalates Free, and Conflict Minerals Free | ||
Rod-locking pins are compliant with TSE/BSE, Latex Free, Phthalates Free, and Conflict Minerals Free | ||
Cleaned and double bagged in ISO Class 8 cleanroom | ||
Estimated operating temperature | -80° to 40°C (-112° to 104°F) | |
Fill volume range | 2 L shell | Infinitely adjustable from 1 L to 2 L without additional accessories required |
5 L shell | Infinitely adjustable from 2.5 L to 5 L without additional accessories | |
Shell weight (empty) | 2 L | 1.5 kg (3.4 lb) |
5 L | 2.2 kg (4.9 lb) |
Successfully Opted for software Updates
Entegris Blast Freezing Shells
Part Number | Minimum order quantity | Volume | Order Increment |
---|---|---|---|
SU-PB-000M1 | 5 shells | 5 L | 5 |
SU-PB-000M1-SAMP | 1 shell | 5 L | 1 |
SU-PB-000S1 | 10 shells | 2 L | 10 |
SU-PB-000S1-SAMP | 1 shell | 2 L | 1 |
