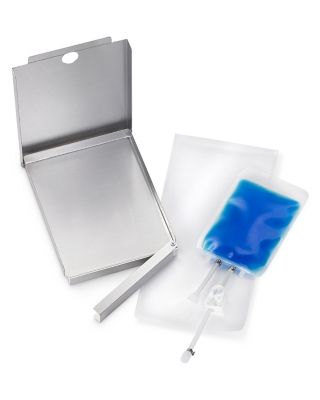

Cassettes and Overwraps
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- Cell banking for bioreactor intensification
- Stem cell freezing and storage
- Cryogenic storage of bulk drug or intermediates
- Cryogenic product shipment
- Process sampling and archiving
Specifications
Cassettes
Dimensions are outer dimensions. Cassette thickness is approximately 0.7 mm.
| Part Number | Description | Width | Length | Height |
| SU-FS-0.05-C2 | Cassette, Aramus, 50 mL | 157 mm (6.2’’) | 203 mm (8.0”) | 19 mm (0.7”) |
| SU-FS-0.04-C2 | Cassette, Aramus, 36 mL | 92 mm (3.6’’) | 160 mm (6.3’’) | 11 mm (0.4’’) |
| SU-FS-0.08-C2 | Cassette, Aramus, 80 mL | 152 mm (6.0’’) | 192 mm (7.6’’) | 11 mm (0.4’’) |
| SU-FS-0.10-C2 | Cassette, Aramus, 100 mL 1 | 58 mm (6.2”) | 213 mm (8.4”) | 20 mm (0.8”) |
| SU-FS-0.25-C2 | Cassette, Aramus, 250 mL | 154 mm (6.1”) | 305 mm (12.0”) | 20 mm (0.8”) |
| SU-FS-0.50-C2 | Cassette, Aramus, 0.5 L | 191 mm (7.5”) | 305 mm (12.0”) | 23 mm (0.9”) |
| SU-FS-0001-C2 | Cassette, Aramus, 1 L | 203 mm (8.0’’) | 366 mm (14.4’’) | 24 mm (0.9’’) |
| SU-FS-0002-C2 | Cassette, Aramus, 2 L | 280 mm (11.0’’) | 430 mm (16.9’’) | 24 mm (0.9’’) |
| Note: For assistance confirming fit, contact your Entegris account manager. | ||||
Overwraps
| Part Number | Description | Width | Length |
| SU-OW-01-14-30-S | Bag, overwrap, EVA, 140 X 300 mm, STER | 140 mm (5.5’’) | 300 mm (11.8’’) |
| SU-OW-01-09-18-S | Bag, overwrap, EVA, 90 X 180 mm, STER | 90 mm (3.5’’) | 180 mm (7.1’’) |
| SU-OW-01-17-38-S | Bag, overwrap, EVA, 170 X 380 mm, STER | 170 mm (6.7’’) | 380 mm (15.0’’) |
| SU-OW-01-20-38-S | Bag, overwrap, EVA, 200 X 380 mm, STER | 200 mm (7.9’’) | 380 mm (15.0’’) |
| SU-OW-01-28-50-S | Bag, overwrap, EVA, 280 X 500 mm, STER | 280 mm (11.0’’) | 500 mm (19.7’’) |
Technical Information
Average cooling rates, from 4°C to -40°C (39°F to -40°F), observed with Aramus bags stored in cassettes. Data on rates shown in use with different freezers prior to storage in LN2 temperatures.
| Standard lab freezer -80°C (-112°F) | Controlled plate freezer | |||
| Bag size | At maximum fill | At minimum fill | At maximum fill | At minimum fill |
| 20 mL | -1.38°C (-2.49°F)/min | -1.28°C (-2.30°F)/min | -0.72°C (-1.30°F)/min | -0.66°C (-1.19°F)/min |
| 50 mL | -0.97°C (-1.74°F)/min | -1.30°C (-2.34°F)/min | -0.63°C (-1.13°F)/min | -0.77°C (-1.39°F)/min |
| 100 mL | -0.83°C (-1.50°F)/min | -1.31°C (-2.35°F)/min | -0.52°C (-0.94°F)/min | -0.80°C (-1.44°F)/min |
| 250 mL | -0.73°C (-1.31°F)/min | -1.30°C (-2.33°F)/min | -0.65°C (-1.16°F)/min | -0.84°C (-1.52°F)/min |
| 500 mL | -0.53°C (-0.95°F)/min | -1.12°C (-2.02°F)/min | -0.64°C (-1.16°F)/min | -0.90°C (-1.61°F)/min |
Cassettes shown to increase robustness by maintaining bag integrity post-LN2 vapor phase storage. Aramus bags in cassettes were frozen in LN2 vapor for 24 hours and then subjected to 12” drops three times:
| Bag size | Fill volume | Drop test result |
| 20 mL | 20 mL | Pass (8/8) |
| 50 mL | 50 mL | Pass (8/8) |
| 100 mL | 100 mL | Pass (8/8) |
| 250 mL | 200 mL | Pass (8/8) |
| 500 mL | 350 mL | Pass (8/8) |
Note: Entegris has not performed performance-specific testing on 36 ml or 80 ml cassettes, but views performance challenges as low risk due to relative geometries that are similar to larger and smaller cassette sizes. Entegris has performed limited performance-specific testing on 1 L or 2 L cassettes. Please contact your Entegris account manager for more information on these sizes.
Successfully Opted for software Updates
| Part Number | Volume | Minimum order quantity |
|---|---|---|
| SU-FS-0.04-C2 | 36 mL | 5 |
| SU-FS-0.05-C2 | 20 and 50 mL | 5 |
| SU-FS-0.08-C2 | 80 mL | 5 |
| SU-FS-0.10-C2 | 100 mL | 5 |
| SU-FS-0.25-C2 | 250 mL | 5 |
| SU-FS-0.50-C2 | 500 mL | 5 |
| SU-FS-0001-C2 | 1 L | 5 |
| SU-FS-0002-C2 | 2 L | 5 |
