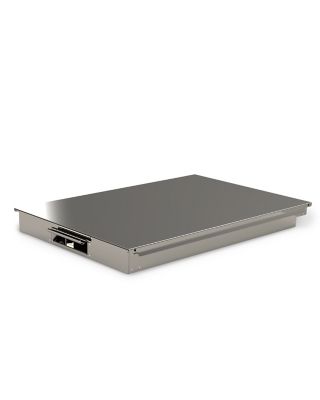

Plate Freezing Shells

Download Image

Reusable metal shell solution for use with Aramus™ bag assemblies in bioprocess and cold-chain applications

Stainless steel frame provides protection down to -80°C (-112°F) and is compatible with most existing plate freezing infrastructure
Conduction of stainless steel enables consistent and quick freezing and thawing, increasing throughput and maintaining product quality by reducing cryo-concentration
Tubing area accommodates up to 12'' of tubing with most aseptic connectors and a partial fill range 50%– 100%
Enlarged handles provide an ergonomic solution for handling shells with cryogenic gloves
Comprehensive qualification demonstrates 3x reuse

Read More Read Less

Specify Your Part

Minimum order quantity

Volume

Order Increment

Fill Foam

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Plate Freezing Shells Applications

Bulk-drug filling and draining
Bulk-drug freezing and storage
Bulk-drug shipment
Cold-chain support

Specifications

Drawings

Size	A	B	C
9.5 L	762 mm (30.1”)	508 mm (20.0”)	71 mm (2.8”)
11.5 L	851 mm (33.5”)	462 mm (18.2”)	76 mm (3.0”)

Performance Data

Product Specifications

Materials of construction	304 stainless-steel frame, polyurethane foam	The 304 stainless-steel frame is complaint with TSE/BSE, Reach, RoHS, Latex Free, Phthalates Free, and Conflict Minerals Free
		The polyurethane foam is complaint with TSE/BSE, Reach, RoHS, Latex Free, Phthalates Free, BPA free, and Conflict Minerals Free
Estimated operating temperature	-80° to 40°C (-112° to 104°F)
Fill volume range	9.5 L	4.75 to 9.5 L
	11.5 L	5.75 to 11.5 L
Maximum fluid throughput	9.5 L shell	RoSS.pFTU Large Scale freezer	152 L
		Hof FTU-5610 Pharma freezer	95 L
	11.5 L shell	RoSS.pFTU Large Scale freezer	184 L
		Hof FTU-5610 Pharma freezer	172.5 L
Shell weight (empty)	9.5 L	8.2 kg (18.1 lb)
	11.5 L	8.7 kg (19.1 lb)
Contact your Entegris account manager for partial foam configuration.

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Mar 1, 2024 Data Sheets Plate Freezing Shells

391.3 kB

Published Mar 1, 2024 Manual and Guide Plate Freezing Shell User Guide

1.1 MB

Videos

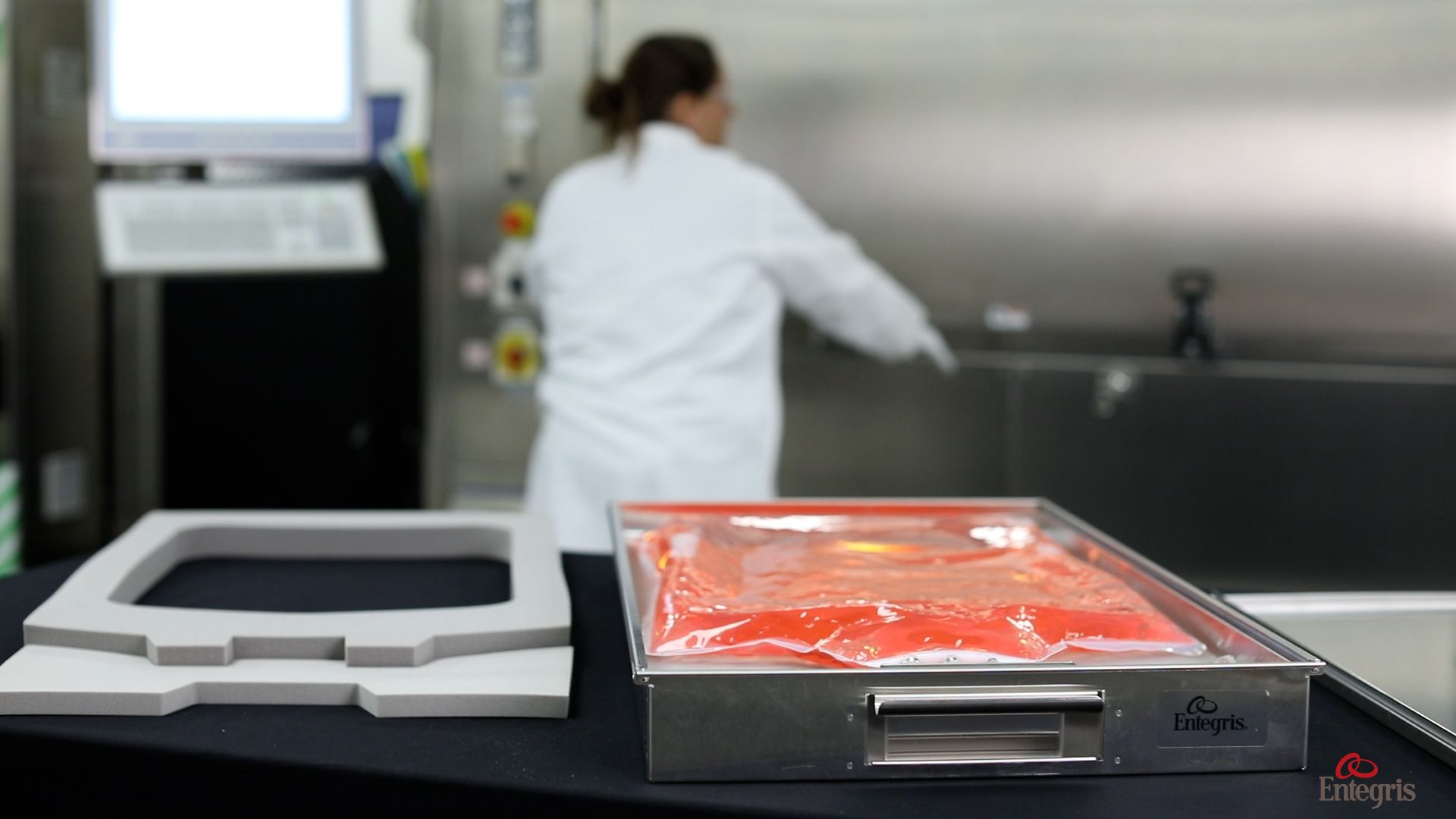

Entegris Plate Freezing Shells

Part Numbers

Plate Freezing Shells Part Numbers

Part Number	Minimum order quantity	Volume	Order Increment	Fill Foam
SU-MP-000L1	2 shells	9.5 L	2	N/A
SU-MP-000L2	2 shells	11.5 L	2	N/A
SU-MP-FF-000L1-100	4 shells	9.5 L	4	Replacement foam
SU-MP-FF-000L1-50	2 shells	9.5 L	2	50% partial fill foam
SU-MP-FF-000L2-100	4 shells	11.5 L	4	Replacement foam
SU-MP-FF-000L2-50	2 shells	11.5 L	2	50% partial fill foam
SU-MP-P-0001	1 shell	Both 9.5 L and 11.5 L	1	N/A
