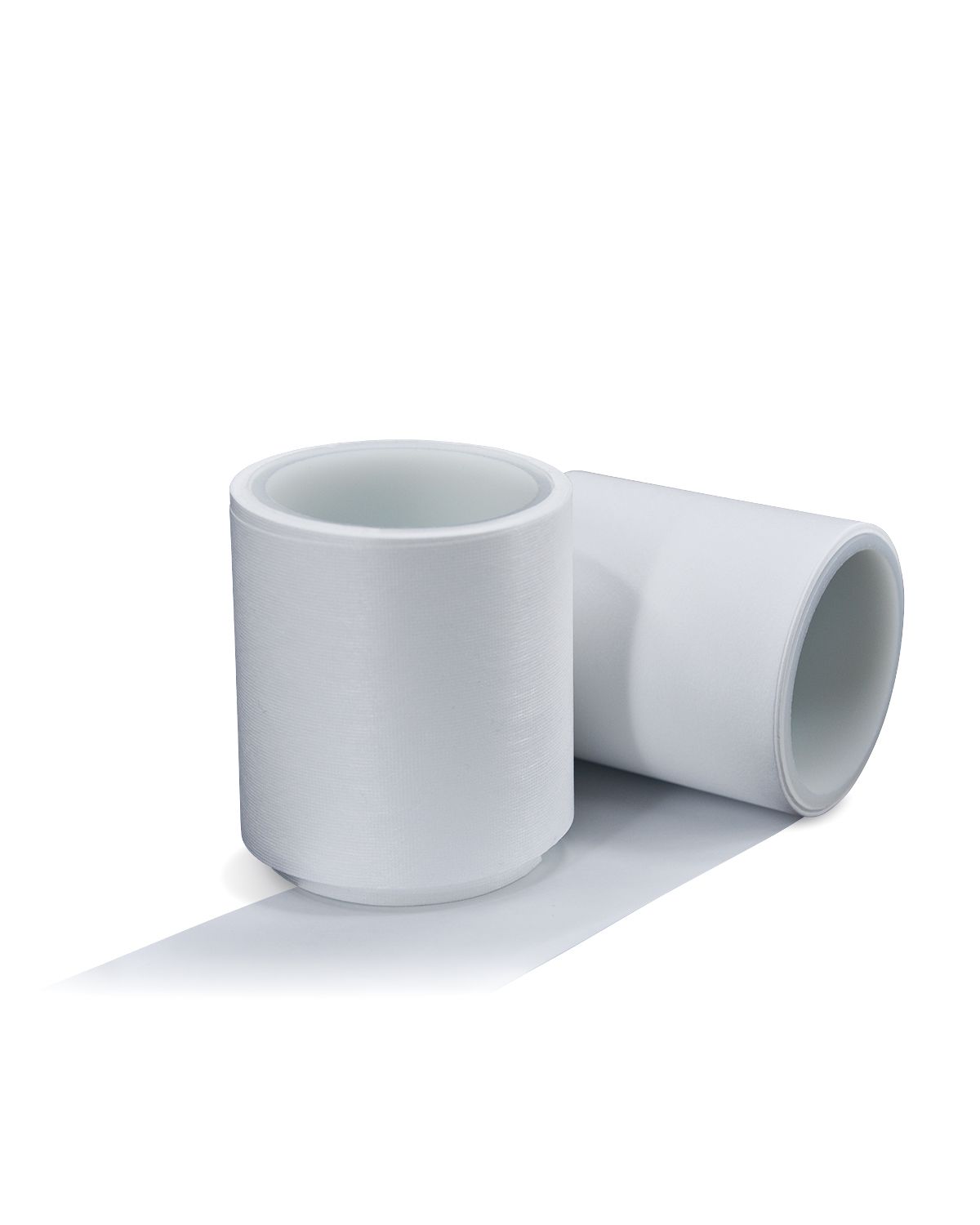

Hydrophobic and Oleophobic PP Membranes

Download Image

Our hydrophobic and oleophobic PP membrane is produced by laminating PP filter media, followed by surface modification to achieve a hydrophobic and oleophobic surface, which helps to resist water and low-surface tension liquids with excellent air flux.

Specially selected polymer is clean and safe
Unique bonding technology enables easy fabrication
Depth filtration media provides porosity, high throughput, high capacity
Oleophobic/hydrophobic treatment repels various fluids, preventing permeation
Available in various shapes and customized sizes to meet your unique application needs

Read More Read Less

Specify Your Part

Shape

Pore Size Rating

Size

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Rolls, sheets, and disc sizes are available. Please contact Entegris with your requirements.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Hydrophobic and Oleophobic PP Membranes Applications

Venting
Air inlet
Water resistance
Oil barrier
Air and gas filtration
Ultrasonic sealing
Mechanical sealing
Heat sealing

Specifications

Product Specifications

Membrane material	PP
Pore rating	0.45 μm
Thickness	300-500 μm
Air flowrate @10kPa	50 mL/min/mm2
Water resistance	15 kPa, 15 min
Water breakthrough	23 kPa
Oil rating*	≥7
Retention rating @ 0.5 μm	99.9%
Bacterial endotoxin	<0.5 EU/ml
* According to AATCC118: Oil Repellency: Hydrocarbon Resistance Test

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Apr 1, 2024 Data Sheet Hydrophobic and Oleophobic PP Membranes

163.0 kB

Part Numbers

Hydrophobic and Oleophobic PP Membranes Part Numbers

Part Number	Shape	Pore Size Rating	Size
IVMCP045029008-AJO	Circle	0.45 µm	29 mm OD 8 mm ID
IVMDP045061-AJO	Disc	0.45 µm	6.1 mm diameter
IVMDP045170-AJO	Disc	0.45 µm	17 mm diameter
IVMRP045310-AJO	Roll	0.45 µm	310 mm wide
IVMSP045165115-AJO	Square	0.45 µm	16.5 mm x 11.5 mm
IVMSP045550550-AJO	Square	0.45 µm	55 mm x 55 mm
IVMSP04555077H-AJO	Square	0.45 µm	55 mm x 770 mm

Rolls, sheets, and disc sizes are available. Please contact Entegris with your requirements.
