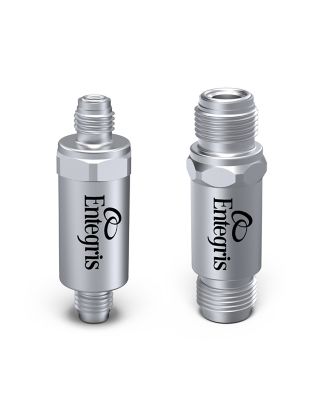

Wafergard® IV HF Mini In-line Gas Filters

Download Image

These alloy-22 membrane filters offer superior particulate filtration for ultrapure and corrosive gas systems.

The alloy-22 membrane (commonly referred to by the brand name HASTELLOY^® C-22^® alloy) offers the most inert and reactive gas compatibility in our Wafergard^® product line
Capable of filtering carbon monoxide, hydrogen bromide, chlorine, and other corrosive gases
The clean, all-metal construction is ideal for high-temperature and dynamic-pressure applications
State-of-the-art housing assembly eliminates outgassing by minimizing the weld area

Read More Read Less

Specify Your Part

Fitting Size and Type

Length

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Alloy-22 filters are not recommended for use with O₃ gases.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Wafergard® IV HF Mini In-line Gas Filters Applications

Ultrapure gas lines
High-temperature applications
Dynamic-pressure applications
New fab construction
Corrosive gases

*Not recommended for use with O₃ gases.

Specifications

Drawings

Performance Data

Product Specifications

Materials	Filter element	Sintered alloy-22 membrane
Materials	Housing	Electropolished VAR 316L stainless steel
Downstream cleanliness	<0.03 particles/liter (<1 particle/ft³) >0.01 µm at specified flow
Removal rating	≥0.0015 µm
Surface finish interior	≤5 µin Ra
Helium leak rating	Qualified	2 × 10^-10 atm cc/sec
	Tested	1 × 10^-9 atm cc/sec
Operating conditions	Maximum inlet pressure	17.2 MPa (2500 psig) @ 20°C (68°F)
	Maximum forward/reverse differential pressure	0.8 MPa (120 psid) @ 20°C (68°F)
	Maximum operating temperature	450°C (842°F) - inert gases
Warranty	5 year
Particle retention	Greater than 99.9999999% (9 LRV) removal of all particles; referenced at the most penetrating particle size
Flow rating	Refer to performance data

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jun 11, 2025 Data Sheet Wafergard® IV HF Mini In-line Gas Filters

238.3 kB

Published Jun 11, 2025 Data Sheet Wafergard® IV HF Mini In-line Gas Filters - A4

238.3 kB

Published Nov 2, 2020 Manual and Guide Wafergard® Gas Filter Compatibility Guide

102.3 kB

Part Numbers

Wafergard® IV HF Mini In-line Gas Filters Part Numbers

Part Number	Fitting Size and Type	Length
WGL045HS3R2	1/4" Gasket seal (compatible with VCR fitting) male inlet/outlet	84.1 mm (3.31")
WGL045HS3R4	1/2" Gasket seal (compatible with VCR fitting) male inlet/outlet	84.1 mm (3.31")

Alloy-22 filters are not recommended for use with O₃ gases.
