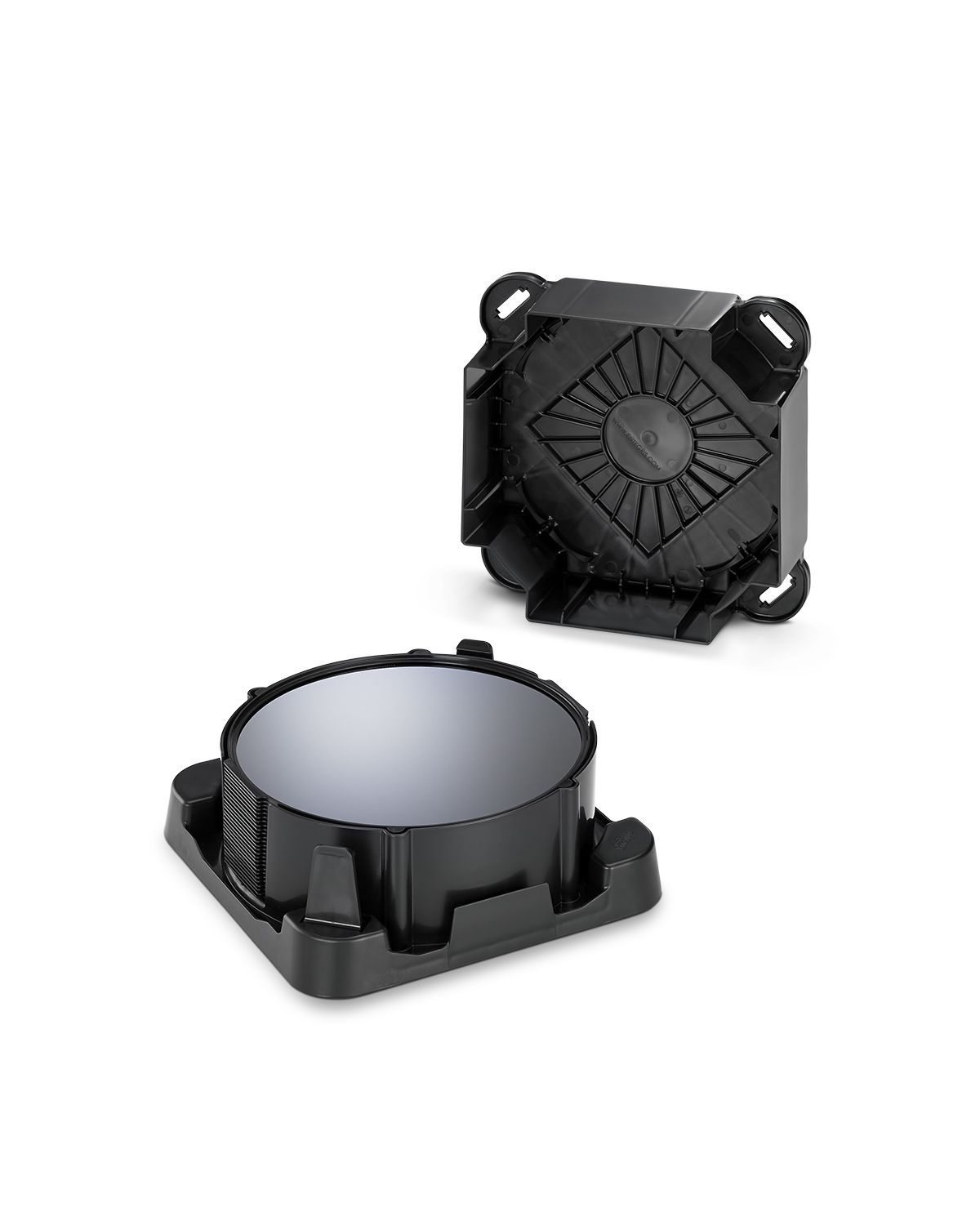

200 mm SmartStack® Contactless Horizontal Wafer Shippers

200 mm SmartStack^® Contactless Horizontal Wafer Shippers safely protect and transport bumped wafers in full, thin or ultrathin thickness.

Safely stores and transports up to 25 wafers of varying thickness
Stackable configuration increases shipping density and is automation compatible
Rugged, engineering-grade polymer construction eliminates the need for TYVEK^® separators and pink foam cushions
Perimeter support ring minimizes the potential for surface area damage, and eliminates the likelihood of scuffed, marred or bump damaged wafers

Read More Read Less

Specify Your Part

Product Type

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Shipper contains:	Shipper kit contains:
200 mm SmartStack contactless horizontal wafer shipper (1) 200 mm rings (26)	200 mm SmartStack contactless horizontal wafer shipper (1) 200 mm rings (26) Corrugated shipping box (1) Outer packing cushions (2) CMB moisture barrier bag (1)

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications 200 mm SmartStack® Contactless Horizontal Wafer Shippers Applications

Shipping and storing thin 3D, lens or bumped wafers

Specifications

Product Specifications

Wafer size:	200 mm
Wafer capacity:	25
Wafer thickness:	Variable (maximum 1100 micron)
Wafer dimensions:	Length	8.88”
	Width	8.88”
	Height	3.55”
Weight:	0.709 kg (1.5 lb)*

*Includes 26 rings

Property	Test Method	Units	Typical Values
Specific gravity	ASTM D-792	g/cc	0.97
Tensile strength	ASTM D-638	MPa	33.3
Tensile modulus	ASTM D-638	MPa	2,207
Tensile elongation	ASTM D-638	percent	9.7
Flexural modulus	ASTM D-790	MPa	2,069
Notched izod	ASTM D-256	J/m	42.4
Unnotched izod	ASTM D-256	J/m	742
Volume resistivity	ASTM D-257	ohms-cm	10¹-10³
Surface resistivity	ASTM D-257	ohms/sq.	10³-10⁸

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Oct 1, 2021 Data Sheet SmartStack® 200 mm Contactless Horizontal Wafer Shipper

179.6 kB

Part Numbers

200 mm SmartStack® Contactless Horizontal Wafer Shippers Part Numbers

Part Number	Product Type
HWS200C-101-61C02M	Shipper
HWS200C-1PK-KIT	Shipper kit

Shipper contains:	Shipper kit contains:
200 mm SmartStack contactless horizontal wafer shipper (1) 200 mm rings (26)	200 mm SmartStack contactless horizontal wafer shipper (1) 200 mm rings (26) Corrugated shipping box (1) Outer packing cushions (2) CMB moisture barrier bag (1)
