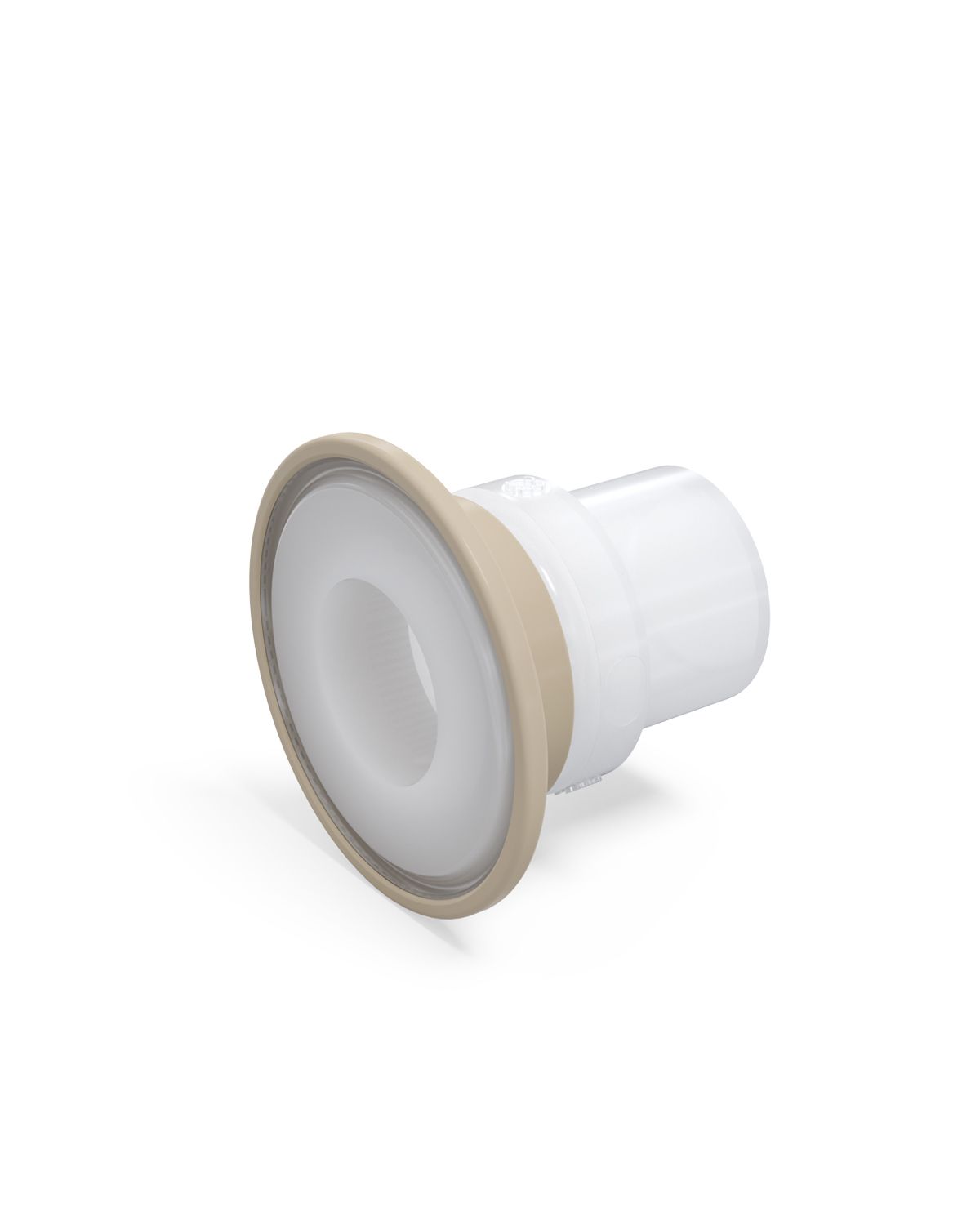

Cynergy® Clamp-to-PureBond® Adapters
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- Utility line and process applications
- Ideal in bioprocessing, biotechnology and fine chemicals applications using ultrapure water, corrosive chemistries and biotechniques
Specifications
Part Number | Leg 1 | Leg 2 | Dimensions | ||||
A | B | C | D | E | |||
WSA4-4P | 1/4" Cynergy clamp | 1/4" PureBond pipe | 1.52" (38.6 mm) | 0.250" (6.35 mm) | 0.984" (24.99 mm) | 0.354" (8.99 mm) | 0.540" (13.72 mm) |
WSA8-4P | 1/2" Cynergy clamp | 1/4" PureBond pipe | 1.52" (38.6 mm) | 0.370" (9.40 mm) | 0.984" (24.99 mm) | 0.354" (8.99 mm) | 0.540" (13.72 mm) |
WSA8-8P | 1/2" Cynergy clamp | 1/2" PureBond pipe | 1.52" (38.6 mm) | 0.370" (9.40 mm) | 0.984" (24.99 mm) | 0.607" (15.42 mm) | 0.840" (21.34 mm) |
WSA12-12P | 3/4" Cynergy clamp | 3/4" PureBond pipe | 1.52" (38.6 mm) | 0.620" (15.75 mm) | 0.984" (24.99 mm) | 0.809" (20.55 mm) | 1.050" (26.67 mm) |
WSA16-12P | 1" Cynergy clamp | 3/4" PureBond pipe | 1.63" (41.4 mm) | 0.856" (21.74 mm) | 1.984" (50.39 mm) | 0.809" (20.55 mm) | 1.050" (26.67 mm) |
WSA24-16P | 1 1/2" Cynergy clamp | 1" PureBond pipe | 1.63" (41.4 mm) | 1.356" (34.44 mm) | 1.984" (50.39 mm) | 1.034" (26.26 mm) | 1.315" (33.40 mm) |
WSA32-32P | 2" Cynergy clamp | 2" PureBond pipe | 2.38" (60.5 mm) | 1.856" (47.14 mm) | 2.516" (63.91 mm) | 2.052" (52.12 mm) | 2.375" (60.32 mm) |
Product and Material Lot Traceability
Cynergy products made with Teflon® PFA are coded with a lot number. This nondestructive, noncontaminating serial marking allows 100% traceability to a specific material lot, production date and production inspection record.
Injection molded products have a unique two-digit code molded into the body. This code changes with every production lot (see second drawing above).
Teflon® is a trademark of The Chemours Company FC, LLC used under license by Entegris, Inc.
Autoclavability
Disassemble valves and unclamp connections before autoclaving. 124°C (255°F) is the maximum autoclave temperature.
Vacuum
Full static vacuum capability at 149°C (300°F).
Materials
Gasket and Clamp Recommendations
Cynergy Clamp Connection Size | Rubber Fab Tuf-Flex® PTFE/EPDM Gasket Number | Entegris Part Number for Tuf-Flex Gasket | Tri-Clover EPDM Gasket Part Number | Entegris EPDM Gasket Part Number | Tri-Clamp Clamp Part Number | Entegris Part Number for Tri-Clamp | Clamp Torque in•lbs (N•m) |
1/4" | — | — | 0-42MP-E-1/41 | 1333-022 | 13MHHS-3/4-S | 01-008141 | 15 (1.7) |
1/2" | A42MPGR-TF-050-E | 01-1014718 | 42MP-E-1/2 | 01-008136 | 13MHHS-3/4-S | 01-008141 | 15 (1.7) |
3/4" | A42MPGR-TF-075-E | 01-1014351 | 42MP-E-3/4 | 01-008137 | 13MHHS-3/4-S | 01-008141 | 15 (1.7) |
1" | A40MPGR-TF-100-E | 01-034815 | 40MP-E-1 | 01-008138 | 13MHHS-1 1/2-S | 01-008142 | 25 (2.8) |
1 1/2" | A40MPGR-TF-150-E | 01-034816 | 40MP-E-1 1/2 | 01-008139 | 13MHHS-1 1/2-S | 01-008142 | 25 (2.8) |
2" | A40MPGR-TF-200-E | 01-034817 | 40MP-E-2 | 01-008140 | 13MHHS-2-S | 01-008143 | 25 (2.8) |
1Newman EPDM Gasket Part Number
Successfully Opted for software Updates
Part Number | Leg 1 | Leg 2 |
---|---|---|
WSA12-12P | 3/4" Cynergy® clamp | 3/4" PureBond® pipe |
WSA16-12P | 1" Cynergy® clamp | 3/4" PureBond® pipe |
WSA24-16P | 1 1/2" Cynergy® clamp | 1" PureBond® pipe |
WSA32-32P | 2" Cynergy® clamp | 2" PureBond® pipe |
WSA4-4P | 1/4" Cynergy® clamp | 1/4" PureBond® pipe |
WSA8-4P | 1/2" Cynergy® clamp | 1/4" PureBond® pipe |
WSA8-8P | 1/2" Cynergy® clamp | 1/2" PureBond® pipe |
