Flaretek® Tee Union
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
NOTE! Flaretek® fittings are specifically designed, tested and characterized to work together with specific Flaretek fitting components manufactured by Entegris. Customers assume the risk of connection integrity if Flaretek fittings, body and/or nut components are attached to components manufactured by third parties.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- High-purity, corrosive chemical applications
- Solar, LED, Flat Panel Display
- Semiconductor applications
- Photolithography
- Bulk chemical delivery
- CMP
- Wet etch and clean
Specifications
FlareLock II Fitting Design
The patented FlareLock II fitting design (-II) combines the gripping power of a grooved tube, the security of a locking ferrule mechanism and the compact, leak-free design of the Flaretek fitting body. The fitting body, split locking ring and nut are all PFA material. A specific FlareLock II fitting groove tool is also available.
Dimension Notes:
* = PFA body with -1 (PVDF), -3 (PFA) or -6 (CPFA) nuts
II = PFA body with FlareLock II (PFA) nuts

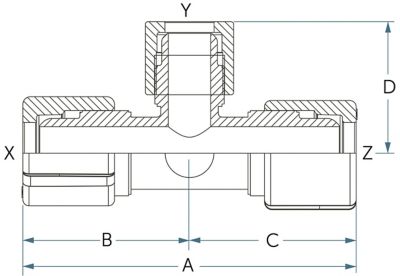

| Part Number | Leg 1 (X) | Leg 2 (Y) | Leg 3 (Z) | Orifice | Dimensions | |||
| A | B | C | D | |||||
| UT4FN-* | 1/4" | 1/4" | 1/4" | 0.13" (3.3 mm) | 3.22" (81.8 mm) | 1.61" (40.9 mm) | 1.61" (40.9 mm) | 1.61" (40.9 mm) |
| UT4FN-II | 1/4" | 1/4" | 1/4" | 0.13" (3.3 mm) | 3.22" (81.8 mm) | 1.61" (40.9 mm) | 1.61" (40.9 mm) | 1.61" (40.9 mm) |
| UT4-4-6FN-* | 1/4" | 1/4" | 3/8" | 0.13" (3.3 mm) | 3.34" (84.8 mm) | 1.61" (40.9 mm) | 1.73" (43.9 mm) | 1.61" (40.9 mm) |
| UT4-4-6FN-II | 1/4" | 1/4" | 3/8" | 0.13" (3.3 mm) | 3.34" (84.8 mm) | 1.61" (40.9 mm) | 1.73" (43.9 mm) | 1.61" (40.9 mm) |
| UT4-6-4FN-* | 1/4" | 3/8" | 1/4" | 0.13" (3.3 mm) | 3.26" (82.8 mm) | 1.63" (41.4 mm) | 1.63" (41.4 mm) | 1.72" (43.7 mm) |
| UT4-6-4FN-II | 1/4" | 3/8" | 1/4" | 0.13" (3.3 mm) | 3.26" (82.8 mm) | 1.63" (41.4 mm) | 1.63" (41.4 mm) | 1.72" (43.7 mm) |
| UT4-6-6FN-* | 1/4" | 3/8" | 3/8" | 0.13" (3.3 mm) | 3.34" (84.8 mm) | 1.61" (40.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) |
| UT4-6-6FN-II | 1/4" | 3/8" | 3/8" | 0.13" (3.3 mm) | 3.34" (84.8 mm) | 1.61" (40.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) |
| UT6-4-6FN-* | 3/8" | 1/4" | 3/8" | 0.13" (3.3 mm) | 3.46" (87.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) | 1.61" (40.9 mm) |
| UT6-4-6FN-II | 3/8" | 1/4" | 3/8" | 0.13" (3.3 mm) | 3.46" (87.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) | 1.61" (40.9 mm) |
| UT6FN-* | 3/8" | 3/8" | 3/8" | 0.25" (6.4 mm) | 3.46" (87.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) |
| UT6FN-II | 3/8" | 3/8" | 3/8" | 0.25" (6.4 mm) | 3.46" (87.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) |
| UT6-8-6FN-* | 3/8" | 1/2" | 3/8" | 0.25" (6.4 mm) | 3.46" (87.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) | 1.81" (46.0 mm) |
| UT6-8-6FN-II | 3/8" | 1/2" | 3/8" | 0.25" (6.4 mm) | 3.46" (87.9 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) | 1.83" (46.5 mm) |
| UT6-12-6FN-* | 3/8" | 3/4" | 3/8" | 0.25" (6.4 mm) | 3.80" (96.5 mm) | 1.90" (48.3 mm) | 1.90" (48.3 mm) | 2.22" (56.4 mm) |
| UT6-12-6FN-II | 3/8" | 3/4" | 3/8" | 0.25" (6.4 mm) | 3.80" (96.5 mm) | 1.90" (48.3 mm) | 1.90" (48.3 mm) | 2.24" (56.9 mm) |
| UT8-4-4FN-* | 1/2" | 1/4" | 1/4" | 0.13" (3.3 mm) | 3.44" (87.4 mm) | 1.83" (46.5 mm) | 1.61" (40.9 mm) | 1.61" (40.9 mm) |
| UT8-4-4FN-II | 1/2" | 1/4" | 1/4" | 0.13" (3.3 mm) | 3.46" (87.9 mm) | 1.85" (47.0 mm) | 1.61" (40.9 mm) | 1.61" (40.9 mm) |
| UT8-4-8FN-* | 1/2" | 1/4" | 1/2" | 0.13" (3.3 mm) | 3.66" (93.0 mm) | 1.83" (46.5 mm) | 1.83" (46.5 mm) | 1.61" (40.9 mm) |
| UT8-4-8FN-II | 1/2" | 1/4" | 1/2" | 0.13" (3.3 mm) | 3.70" (94.0 mm) | 1.85" (47.0 mm) | 1.85" (47.0 mm) | 1.61" (40.9 mm) |
| UT8-6-6FN-* | 1/2" | 3/8" | 3/8" | 0.25" (6.4 mm) | 3.56" (90.4 mm) | 1.83" (46.5 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) |
| UT8-6-6FN-II | 1/2" | 3/8" | 3/8" | 0.25" (6.4 mm) | 3.58" (90.9 mm) | 1.85" (47.0 mm) | 1.73" (43.9 mm) | 1.73" (43.9 mm) |
| UT8-6-8FN-* | 1/2" | 3/8" | 1/2" | 0.25" (6.4 mm) | 3.66" (93.0 mm) | 1.83" (46.5 mm) | 1.83" (46.5 mm) | 1.74" (44.2 mm) |
| UT8-6-8FN-II | 1/2" | 3/8" | 1/2" | 0.25" (6.4 mm) | 3.70" (94.0 mm) | 1.85" (47.0 mm) | 1.85" (47.0 mm) | 1.74" (44.2 mm) |
| UT8-8-4FN-* | 1/2" | 1/2" | 1/4" | 0.13" (3.3 mm) | 3.45" (87.6 mm) | 1.84" (46.7 mm) | 1.61" (40.9 mm) | 1.84" (46.7 mm) |
| UT8-8-4FN-II | 1/2" | 1/2" | 1/4" | 0.13" (3.3 mm) | 3.47" (88.1 mm) | 1.86" (47.2 mm) | 1.61" (40.9 mm) | 1.86" (47.2 mm) |
| UT8-8-6FN-* | 1/2" | 1/2" | 3/8" | 0.25" (6.4 mm) | 3.61" (91.7 mm) | 1.83" (46.5 mm) | 1.78" (45.2 mm) | 1.76" (44.7 mm) |
| UT8-8-6FN-II | 1/2" | 1/2" | 3/8" | 0.25" (6.4 mm) | 3.63" (92.2 mm) | 1.85" (47.0 mm) | 1.78" (45.2 mm) | 1.78" (45.2 mm) |
| UT8FN-* | 1/2" | 1/2" | 1/2" | 0.38" (9.7 mm) | 3.65" (92.7 mm) | 1.83" (46.5 mm) | 1.83" (46.5 mm) | 1.83" (46.5 mm) |
| UT8FN-II | 1/2" | 1/2" | 1/2" | 0.38" (9.7 mm) | 3.69" (93.7 mm) | 1.85" (47.0 mm) | 1.85" (47.0 mm) | 1.85" (47.0 mm) |
| UT8-12-8FN-* | 1/2" | 3/4" | 1/2" | 0.38" (9.7 mm) | 4.02" (102.1 mm) | 2.01" (51.1 mm) | 2.01" (51.1 mm) | 2.20" (55.9 mm) |
| UT8-12-8FN-II | 1/2" | 3/4" | 1/2" | 0.38" (9.7 mm) | 4.06" (103.1 mm) | 2.03" (51.6 mm) | 2.03" (51.6 mm) | 2.22" (56.4 mm) |
| UT8-16-8FN-* | 1/2" | 1" | 1/2" | 0.38" (9.7 mm) | 4.52" (114.8 mm) | 2.26" (57.4 mm) | 2.26" (57.4 mm) | 2.70" (68.6 mm) |
| UT8-16-8FN-II | 1/2" | 1" | 1/2" | 0.38" (9.7 mm) | 4.56" (115.8 mm) | 2.28" (57.9 mm) | 2.28" (57.9 mm) | 2.83" (71.9 mm) |
| UT8-16-16FN-* | 1/2" | 1" | 1" | 0.38" (9.7 mm) | 4.95" (125.7 mm) | 2.28" (57.9 mm) | 2.67" (67.8 mm) | 2.70" (68.6 mm) |
| UT8-16-16FN-II | 1/2" | 1" | 1" | 0.38" (9.7 mm) | 5.10" (129.5 mm) | 2.30" (58.4 mm) | 2.80" (71.1 mm) | 2.83" (71.9 mm) |
| UT12-4-12FN-* | 3/4" | 1/4" | 3/4" | 0.13" (3.3 mm) | 4.36" (110.7 mm) | 2.18" (55.4 mm) | 2.18" (55.4 mm) | 1.79" (45.5 mm) |
| UT12-4-12FN-II | 3/4" | 1/4" | 3/4" | 0.13" (3.3 mm) | 4.40" (111.8 mm) | 2.20" (55.9 mm) | 2.20" (55.9 mm) | 1.79" (45.5 mm) |
| UT12-6-12FN-* | 3/4" | 3/8" | 3/4" | 0.25" (6.4 mm) | 4.36" (110.7 mm) | 2.18" (55.4 mm) | 2.18" (55.4 mm) | 1.98" (50.3 mm) |
| UT12-6-12FN-II | 3/4" | 3/8" | 3/4" | 0.25" (6.4 mm) | 4.40" (111.8 mm) | 2.20" (55.9 mm) | 2.20" (55.9 mm) | 1.98" (50.3 mm) |
| UT12-8-4FN-* | 3/4" | 1/2" | 1/4" | 0.13" (3.3 mm) | 3.94" (100.1 mm) | 2.18" (55.4 mm) | 1.76" (44.7 mm) | 2.01" (51.1 mm) |
| UT12-8-4FN-II | 3/4" | 1/2" | 1/4" | 0.13" (3.3 mm) | 3.96" (100.6 mm) | 2.20" (55.9 mm) | 1.76" (44.7 mm) | 2.01" (51.1 mm) |
| UT12-8-8FN-* | 3/4" | 1/2" | 1/2" | 0.38" (9.7 mm) | 4.18" (106.2 mm) | 2.18" (55.4 mm) | 2.00" (50.8 mm) | 2.00" (50.8 mm) |
| UT12-8-8FN-II | 3/4" | 1/2" | 1/2" | 0.38" (9.7 mm) | 4.22" (107.2 mm) | 2.20" (55.9 mm) | 2.02" (51.3 mm) | 2.02" (51.3 mm) |
| UT12-8-12FN-* | 3/4" | 1/2" | 3/4" | 0.38" (9.7 mm) | 4.36" (110.7 mm) | 2.18" (55.4 mm) | 2.18" (55.4 mm) | 2.00" (50.8 mm) |
| UT12-8-12FN-II | 3/4" | 1/2" | 3/4" | 0.38" (9.7 mm) | 4.40" (111.8 mm) | 2.20" (55.9 mm) | 2.20" (55.9 mm) | 2.02" (51.3 mm) |
| UT12-12-6FN-* | 3/4" | 3/4" | 3/8" | 0.25" (6.4 mm) | 4.11" (104.4 mm) | 2.21" (56.1 mm) | 1.90" (48.3 mm) | 2.18" (55.4 mm) |
| UT12-12-6FN-II | 3/4" | 3/4" | 3/8" | 0.25" (6.4 mm) | 4.13" (104.9 mm) | 2.23" (56.6 mm) | 1.90" (48.3 mm) | 2.20" (55.9 mm) |
| UT12-12-8FN-* | 3/4" | 3/4" | 1/2" | 0.38" (9.7 mm) | 4.18" (106.2 mm) | 2.18" (55.4 mm) | 2.00" (50.8 mm) | 2.18" (55.4 mm) |
| UT12-12-8FN-II | 3/4" | 3/4" | 1/2" | 0.38" (9.7 mm) | 4.22" (107.2 mm) | 2.20" (55.9 mm) | 2.02" (51.3 mm) | 2.20" (55.9 mm) |
| UT12FN-* | 3/4" | 3/4" | 3/4" | 0.63" (16.0 mm) | 4.36" (110.7 mm) | 2.18" (55.4 mm) | 2.18" (55.4 mm) | 2.18" (55.4 mm) |
| UT12FN-II | 3/4" | 3/4" | 3/4" | 0.63" (16.0 mm) | 4.40" (111.8 mm) | 2.20" (55.9 mm) | 2.20" (55.9 mm) | 2.20" (55.9 mm) |
| UT12-16-12FN-* | 3/4" | 1" | 3/4" | 0.63" (16.0 mm) | 4.88" (124.0 mm) | 2.44" (62.0 mm) | 2.44" (62.0 mm) | 2.70" (68.6 mm) |
| UT12-16-12FN-II | 3/4" | 1" | 3/4" | 0.63" (16.0 mm) | 4.92" (125.0 mm) | 2.46" (62.5 mm) | 2.46" (62.5 mm) | 2.83" (71.9 mm) |
| UT12-16-16FN-* | 3/4" | 1" | 1" | 0.63" (16.0 mm) | 5.12" (130.0 mm) | 2.45" (62.2 mm) | 2.67" (67.8 mm) | 2.70" (68.6 mm) |
| UT12-16-16FN-II | 3/4" | 1" | 1" | 0.63" (16.0 mm) | 5.27" (133.9 mm) | 2.47" (62.7 mm) | 2.80" (71.1 mm) | 2.83" (71.9 mm) |
| UT16-6-16FN-* | 1" | 3/8" | 1" | 0.25" (6.4 mm) | 5.38" (136.7 mm) | 2.69" (68.3 mm) | 2.69" (68.3 mm) | 2.39" (60.7 mm) |
| UT16-6-16FN-II | 1" | 3/8" | 1" | 0.25" (6.4 mm) | 5.64" (143.3 mm) | 2.82" (71.6 mm) | 2.82" (71.6 mm) | 2.39" (60.7 mm) |
| UT16-8-16FN-* | 1" | 1/2" | 1" | 0.38" (9.7 mm) | 5.38" (136.7 mm) | 2.69" (68.3 mm) | 2.69" (68.3 mm) | 2.27" (57.7 mm) |
| UT16-8-16FN-II | 1" | 1/2" | 1" | 0.38" (9.7 mm) | 5.64" (143.3 mm) | 2.82" (71.6 mm) | 2.82" (71.6 mm) | 2.41" (61.2 mm) |
| UT16-12-16FN-* | 1" | 3/4" | 1" | 0.63" (16.0 mm) | 5.36" (136.1 mm) | 2.68" (68.1 mm) | 2.68" (68.1 mm) | 2.43" (61.7 mm) |
| UT16-12-16FN-II | 1" | 3/4" | 1" | 0.63" (16.0 mm) | 5.62" (142.7 mm) | 2.81" (71.4 mm) | 2.81" (71.4 mm) | 2.45" (62.2 mm) |
| UT16FN-* | 1" | 1" | 1" | 0.88" (22.4 mm) | 5.40" (137.2 mm) | 2.70" (68.6 mm) | 2.70" (68.6 mm) | 2.70" (68.6 mm) |
| UT16FN-II | 1" | 1" | 1" | 0.88" (22.4 mm) | 5.66" (143.8 mm) | 2.83" (71.9 mm) | 2.83" (71.9 mm) | 2.83" (71.9 mm) |
Maximum Pressure Rating Chart
Flaretek® Tube Fitting Connections
Maximum pressure capabilities of various sizes for various Flaretek nuts are listed below. (Tubing ratings are included as a reference.) These ratings are provided as a guide in system design. The component with the lowest maximum pressure rating determines your system maximum pressure rating.
| Size (X) | Temperature °F (°C) | PVDF Nut FL(X)-1 psig (kPa) | PFA Nut FL(X)-3 psig (kPa) | CPFA Nut FL(X)-6 psig (kPa) | FlareLock II PFA Nut FL(X)II-3 psig (kPa) | FluoroLine® Ultrapure PFA Tubing psig (kPa) |
| 1/4" (4) | 75 (24) | 225 (1551) | 225 (1551) | 225 (1551) | 225 (1551) | 273 (1882) |
| 200 (93) | 133 (917) | 133 (917) | 133 (917) | 144 (993) | 136 (938) | |
| 250 (121) | 100 (689) | 100 (689) | 100 (689) | 120 (827) | 85 (586) | |
| 300 (150) | 75 (517) | 75 (517) | 75 (517) | 95 (655) | 61 (421) | |
| 350 (175) | N/R | 50 (345) | 50 (345) | 70 (483) | 36 (248) | |
| 400 (200) | N/R | N/R | 15 (103) | 45 (310) | N/R | |
| 3/8" (6) | 75 (24) | 225 (1551) | 225 (1551) | 225 (1551) | 225 (1551) | 234 (1613) |
| 200 (93) | 133 (917) | 133 (917) | 133 (917) | 144 (993) | 116 (800) | |
| 250 (121) | 100 (689) | 100 (689) | 100 (689) | 120 (827) | 73 (503) | |
| 300 (150) | 75 (517) | 75 (517) | 75 (517) | 95 (655) | 52 (359) | |
| 350 (175) | N/R | 50 (345) | 50 (345) | 70 (483) | 31 (214) | |
| 400 (200) | N/R | N/R | 15 (103) | 45 (310) | N/R | |
| 1/2" (8) | 75 (24) | 190 (1310) | 190 (1310) | 190 (1310) | 190 (1310) | 168 (1158) |
| 200 (93) | 100 (689) | 100 (689) | 100 (689) | 105 (724) | 83 (572) | |
| 250 (121) | 75 (517) | 75 (517) | 75 (517) | 82 (565) | 52 (359) | |
| 300 (150) | 50 (345) | 50 (345) | 50 (345) | 58 (400) | 37 (255) | |
| 350 (175) | N/R | 40 (276) | 40 (276) | 55 (379) | 22 (152) | |
| 400 (200) | N/R | N/R | 15 (103) | 35 (241) | N/R | |
| 3/4" (12) | 75 (24) | 110 (758) | 110 (758) | 110 (758) | 140 (965) | 107 (738) |
| 200 (93) | 76 (524) | 76 (524) | 76 (524) | 100 (689) | 53 (365) | |
| 250 (121) | 35 (241) | 35 (241) | 35 (241) | 47 (324) | 33 (228) | |
| 300 (150) | 27 (186) | 27 (186) | 27 (186) | 40 (276) | 24 (165) | |
| 350 (175) | N/R | 20 (138) | 20 (138) | 34 (234) | 14 (95.5) | |
| 400 (200) | N/R | N/R | 15 (103) | 27 (186) | N/R | |
| 1" (16) | 75 (24) | 75 (517) | 75 (517) | 75 (517) | 90 (620) | 77 (531) |
| 200 (93) | 40 (276) | 40 (276) | 40 (276) | 50 (345) | 38 (262) | |
| 250 (121) | 28 (193) | 28 (193) | 28 (193) | 34 (234) | 24 (165) | |
| 300 (150) | 15 (103) | 15 (103) | 17 (117) | 20 (138) | 17 (117) | |
| 350 (175) | N/R | 15 (103) | 15 (103) | 17 (117) | 10 (68.9) | |
| 400 (200) | N/R | N/R | 15 (103) | 15 (103) | N/R | |
| 1 1/4" (20) | 75 (24) | 80 (552) | 80 (552) | * | N/A | 80 (552) |
| 1 1/2" (24), 40 mm | 75 (24) | N/A | N/A | N/A | N/A | 69 (476) |
| N/R | = | Not Rated |
| N/A | = | Not Available |
| * | = | Contact Entegris |
