PrimeLock® ESD Fitting Grounding Straps
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
NOTES:

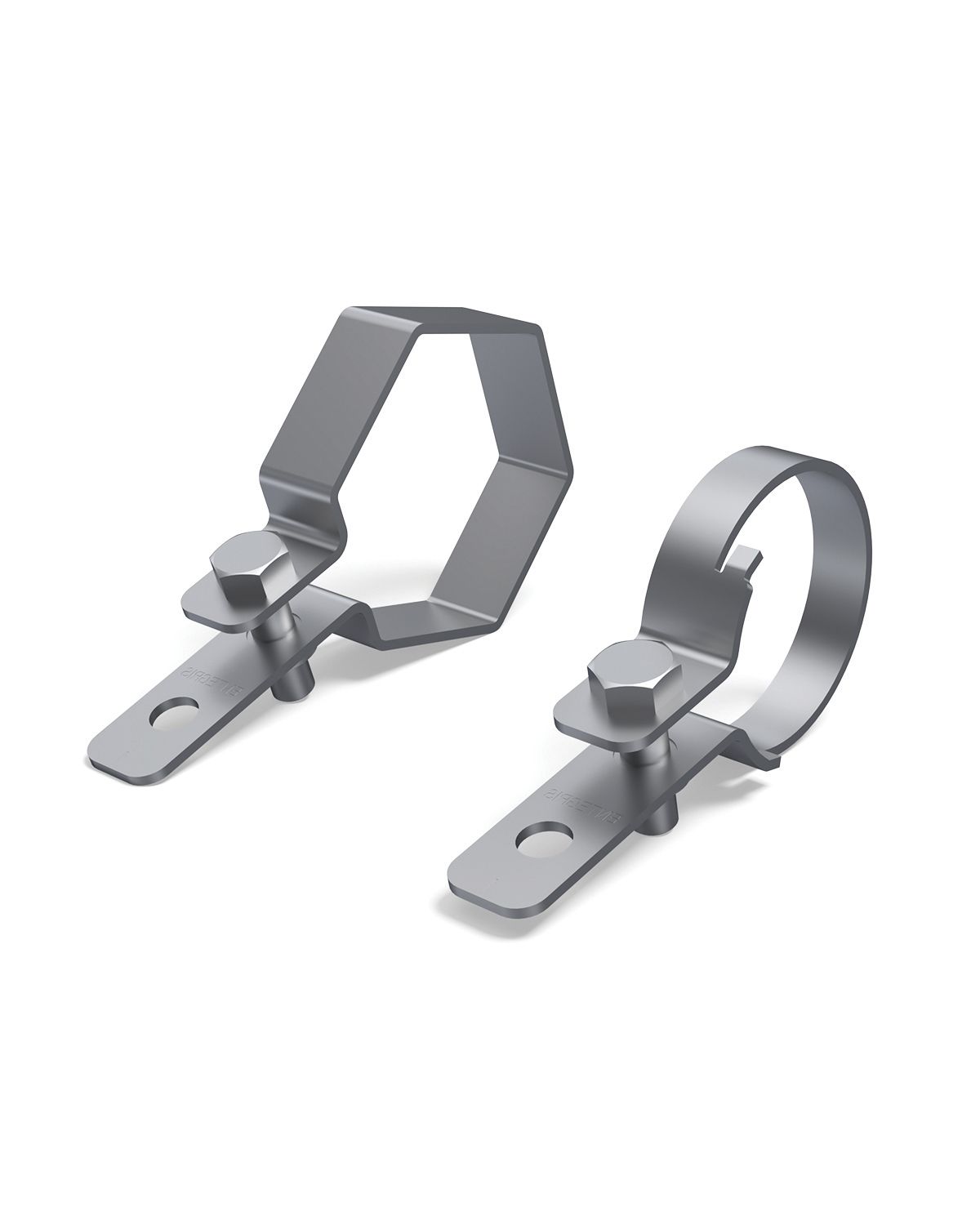

- Order round grounding straps for use with PrimeLock ESD elbow and tee unions
- Order hex grounding straps for use with PrimeLock ESD straight unions
- 3/8" and 1/2" PrimeLock ESD straight unions both use the same hex-shaped grounding strap, PGS-8H
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
Designed for applications using flammable solvents and other nonconductive semiconductor chemistries that are prone to electrostatic charge accumulation, including:
- Photolithography
- Bulk chemical delivery
- Wet etch and clean
- High-temperature cleaning processes
Specifications
| Materials of construction: |
Strap: | 304 stainless steel |
| Hardware: | 18-8 stainless steel | |
| Surface resistivity: | Stainless steel grounding strap is fully conductive | |
Successfully Opted for software Updates
Part Numbers
| Part Number | Configuration | Fitting Size |
|---|---|---|
| PGS-12H | Hex | 3/4" |
| PGS-12R | Round | 3/4" |
| PGS-16H | Hex | 1" |
| PGS-16R | Round | 1" |
| PGS-20H | Hex | 1 1/4" |
| PGS-20R | Round | 1 1/4" |
| PGS-4H | Hex | 1/4" |
| PGS-4R | Round | 1/4" |
| PGS-6R | Round | 3/8" |
| PGS-8H | Hex | 3/8" or 1/2" |
| PGS-8R | Round | 1/2" |
NOTES:
- Order round grounding straps for use with PrimeLock ESD elbow and tee unions
- Order hex grounding straps for use with PrimeLock ESD straight unions
- 3/8" and 1/2" PrimeLock ESD straight unions both use the same hex-shaped grounding strap, PGS-8H
