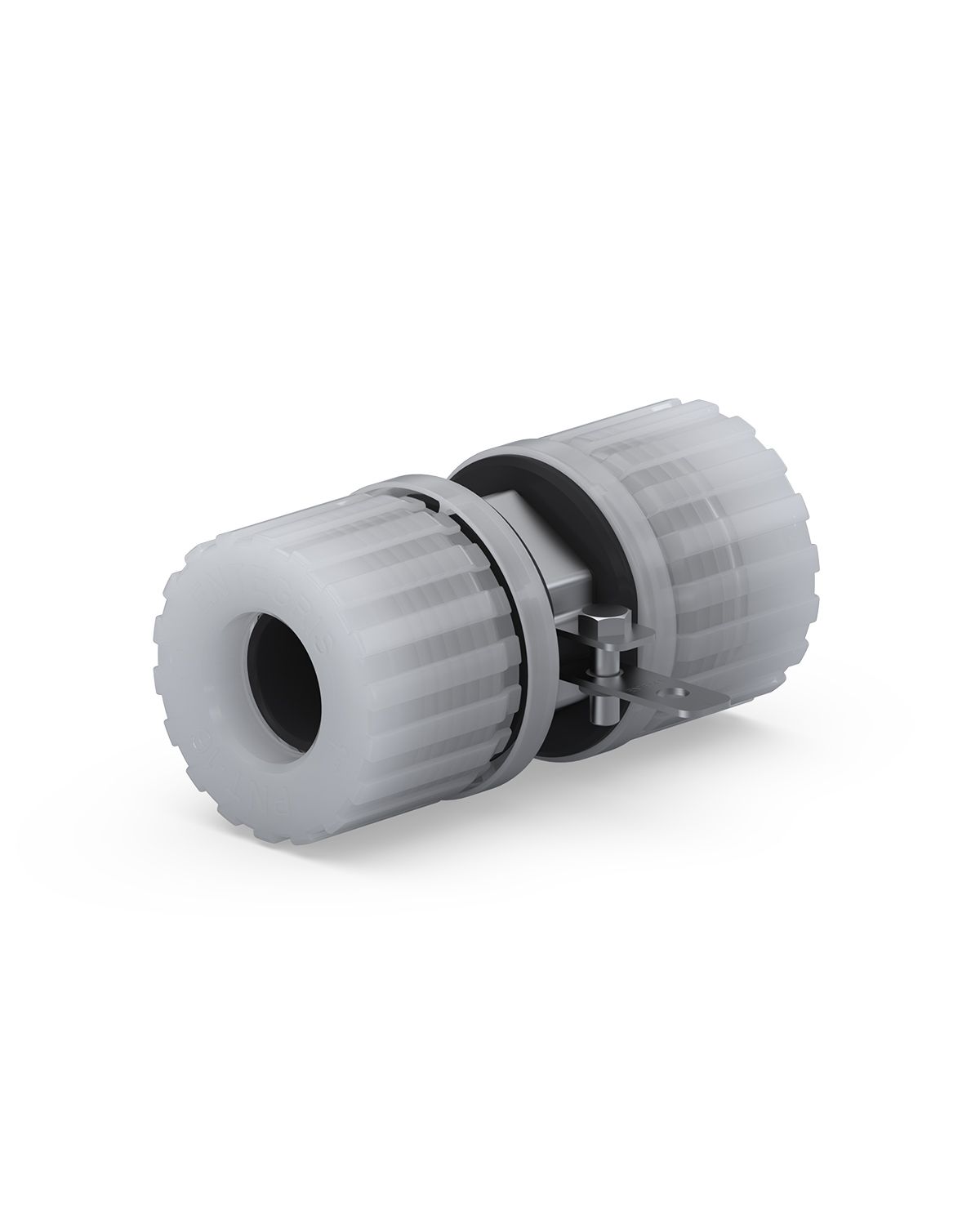

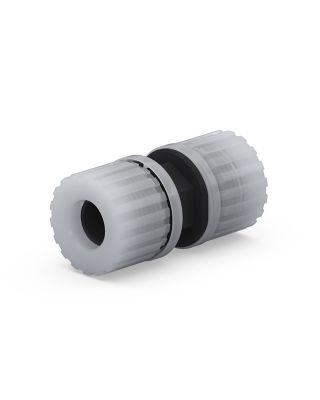

PrimeLock® ESD Straight Union
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
Accessories
Part Numbers
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Flammable solvents and other nonconductive semiconductor chemistries
- High-purity, corrosive chemical handling
- Semiconductor applications
- Photolithography
- Bulk chemical delivery
- Wet etch and clean
- Solar, LED, Flat Panel Display
- Excellent performance with low surface tension chemistries
Specifications
| Part Number | Leg 1 | Leg 2 | Orifice | Dimensions | Hex | ||
| A | B | C | |||||
| PS-4K-3E | 1/4" | 1/4" | 0.16" (4.1 mm) | 2.52" (64.0 mm) | 1.07" (27.2 mm) | 1.07" (27.2 mm) | 9/16" |
| PS-6K-3E | 3/8" | 3/8" | 0.25" (6.4 mm) | 2.66" (67.6 mm) | 1.14" (29.0 mm) | 1.14" (29.0 mm) | 3/4" |
| PS-8K-3E | 1/2" | 1/2" | 0.37" (9.4 mm) | 3.08" (78.2 mm) | 1.29" (32.8 mm) | 1.29" (32.8 mm) | 3/4" |
| PS-12K-3E | 3/4" | 3/4" | 0.62" (15.7 mm) | 3.66" (93.0 mm) | 1.58" (40.1 mm) | 1.58" (40.1 mm) | 1 1/8" |
| PS-16K-3E | 1" | 1" | 0.87" (22.1 mm) | 4.20" (106.7 mm) | 1.79" (45.5 mm) | 1.79" (45.5 mm) | 1 3/8" |
| PS-20K-3E | 1 1/4" | 1 1/4" | 1.10" (27.9 mm) | 5.25" (133.4 mm) | 2.25" (57.2 mm) | 2.25" (57.2 mm) | 1 5/8" |
| Materials | Body: | Conductive PFA |
| Insert, nut: | PFA | |
| Connection verification ring: | ETFE | |
| Operating conditions | Media pressure: | 827 kPa (120 psig) @ 21°C (70°F) 586 kPa (85 psig) @ 100°C (212°F) |
| Temperature range (fluid): | -18° to 100°C (0° to 212°F) | |
| Compliant | RoHS |
Applicable PFA Tube Dimensions
| OD | OD Tolerance | Wall Thickness | Wall Thickness Tolerance |
| 1/4" (6.35 mm) | ±0.004" (±0.10 mm) | 0.047" (±1.19 mm) | ±0.004" (±0.10 mm) |
| 3/8" (9.52 mm) | ±0.004" (±0.10 mm) | 0.062" (±1.57 mm) | ±0.005" (±0.13 mm) |
| 1/2" (12.70 mm) | ±0.005" (±0.13 mm) | 0.062" (±1.57 mm) | ±0.005" (±0.13 mm) |
| 3/4" (19.05 mm) | ±0.005" (±0.13 mm) | 0.062" (±1.57 mm) | ±0.005" (±0.13 mm) |
| 1" (25.40 mm) | ±0.005" (±0.13 mm) | 0.062" (±1.57 mm) | ±0.005" (±0.13 mm) |
| 1 1/4" (31.75 mm) | ±0.007" (±0.18 mm) | 0.075" (±1.90 mm) | ±0.007" (±0.18 mm) |
Successfully Opted for software Updates
Published May 14, 2018
Instruction Sheet
PrimeLock® Minimum Tube Unions, 1/4", 3/8", 1/2", 3/4" and 1" Sizes
1.0 MB
Published Feb 23, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1/4" to 1" sizes
852.3 kB
Published Feb 22, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1 1/4, 1 1/2, and 40 mm
669.7 kB
PrimeLock® Insert Installation using a Power Drill for 1 1/4" , 1 1/2" or 40 mm tubing
PrimeLock® Insert Installation Instructions
PrimeLock Fittings
PrimeLock® Fitting Technology and Installation Overview
PrimeLock® Fitting Introduction
Electrostatic Dissipative ESD Tubing and Fittings
-
PGS-4H

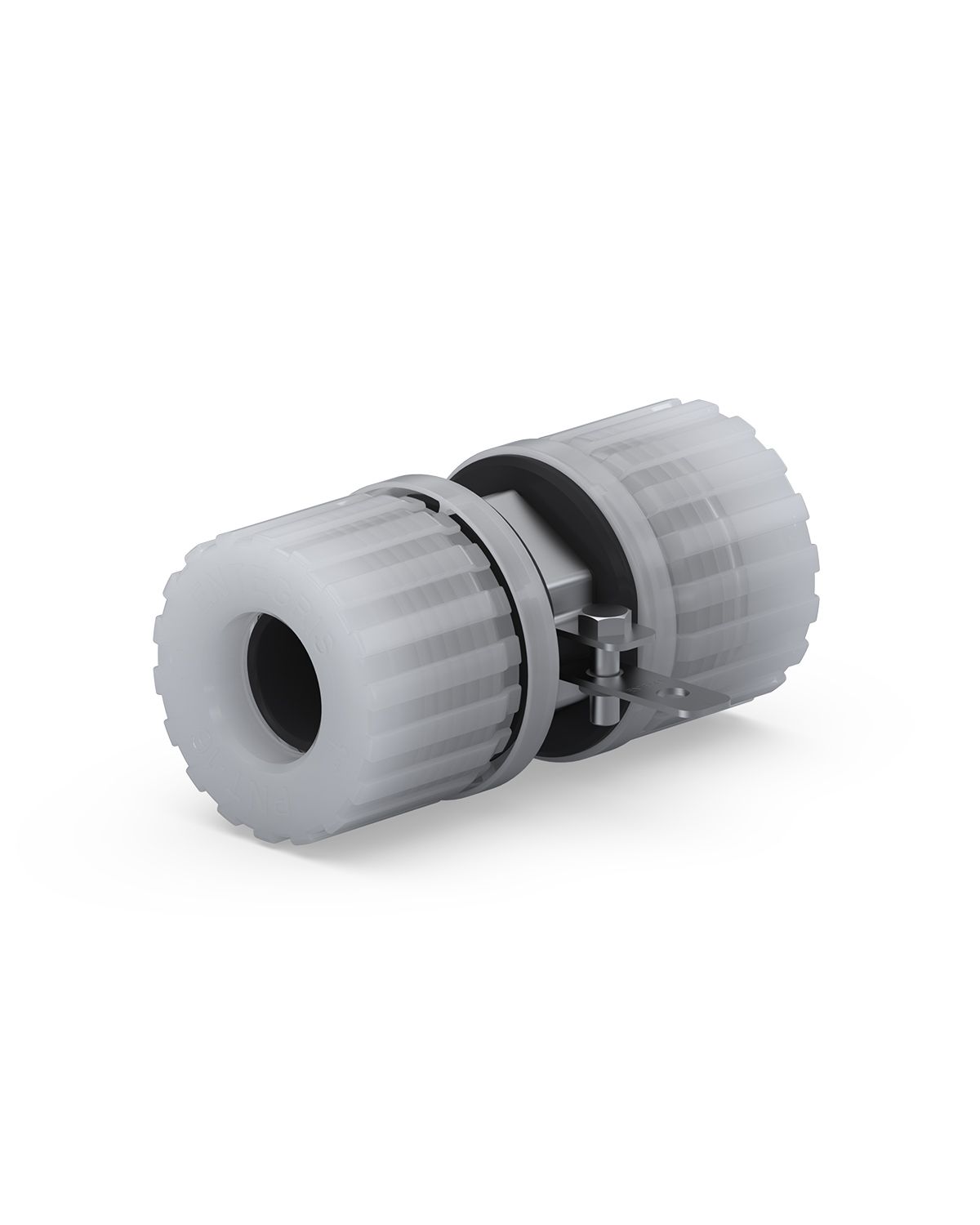

Hex-shaped grounding strap for use with PrimeLock® ESD straight union fittings, 1/4"
-
PGS-8H
Hex-shaped grounding strap for use with PrimeLock® ESD straight union fittings, 3/8" or 1/2"
-
PGS-12H
Hex-shaped grounding strap for use with PrimeLock® ESD straight union fittings, 3/4"
-
PGS-16H
Hex-shaped grounding strap for use with PrimeLock® ESD straight union fittings, 1"
-
PGS-20H
Hex-shaped grounding strap for use with PrimeLock® ESD straight union fittings, 1 1/4"
| Part Number | Leg 2 | Leg 1 |
|---|---|---|
| PS-12K-3E | 3/4" PrimeLock® ESD | 3/4" PrimeLock® ESD |
| PS-16K-3E | 1" PrimeLock® ESD | 1" PrimeLock® ESD |
| PS-20K-3E | 1 1/4" PrimeLock® ESD | 1 1/4" PrimeLock® ESD |
| PS-4K-3E | 1/4" PrimeLock® ESD | 1/4" PrimeLock® ESD |
| PS-6K-3E | 3/8" PrimeLock® ESD | 3/8" PrimeLock® ESD |
| PS-8K-3E | 1/2" PrimeLock® ESD | 1/2" PrimeLock® ESD |
