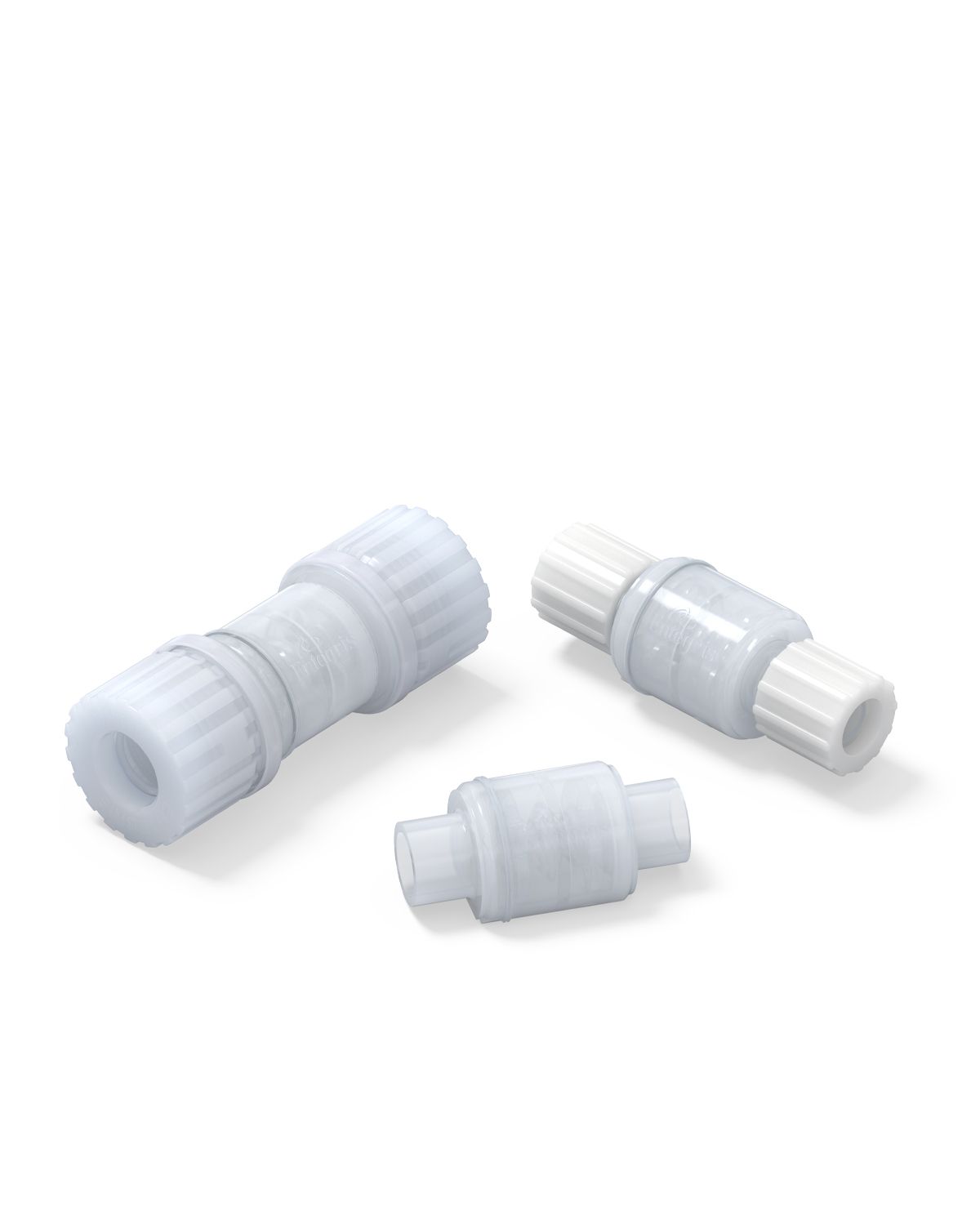

Galtek® Check Valves, 3/4" Orifice, O-ring Free Design
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Bulk chemical distribution
- Wet processing
- Chemical dispensing
Specifications
| Part Number | Flow Factor | Inlet | Outlet | Dimension A |
| CKM12-12F-12F* | 6.1 Cv (87.1 Kv) | 3/4" Flaretek® | 3/4" Flaretek | 4.45" (113.0 mm) |
| CKM12-12F-12P* | 6.1 Cv (87.1 Kv) | 3/4" Flaretek | 3/4" PureBond fusible pipe | 3.95" (100.3 mm) |
| CKM12-12K-12K | 6.1 Cv (87.1 Kv) | 3/4" PrimeLock® | 3/4" PrimeLock | 4.46" (113.3 mm) |
| CKM12-12K-12P | 6.1 Cv (87.1 Kv) | 3/4" PrimeLock | 3/4" PureBond fusible pipe | 3.95" (100.3 mm) |
| CKM12-12P-12P | 7.9 Cv (112.8 Kv) | 3/4" PureBond® fusible pipe | 3/4" PureBond fusible pipe | 3.44" (87.4 mm) |
| CKM12-16F-12P* | 7.9 Cv (112.8 Kv) | 1" Flaretek | 3/4" PureBond fusible pipe | 4.19" (106.4 mm) |
| CKM12-16F-16F* | 8.7 Cv (124.2 Kv) | 1" Flaretek | 1" Flaretek | 4.93" (125.2 mm) |
| CKM12-16K-12P | 7.9 Cv (112.8 Kv) | 1" PrimeLock | 3/4" PureBond fusible pipe | 4.13" (104.9 mm) |
| CKM12-16K-16K | 8.7 Cv (124.2 Kv) | 1" PrimeLock | 1" PrimeLock | 4.82" (122.4 mm) |
| *Dimensions for PVDF, -3 (PFA), -6 (CPFA), and -II (FlareLock II) nuts | ||||
| Pressure range | 100 psig (690 kPa) up to 150°F (65°C) To calculate the maximum pressure rating, subtract 1 psig (6.9 kPa) from 100 psig (690 kPa) for every 1°F/0.5°C temperature rise above 150°F (65°C). |
| Temperature range | 0° to 212°F (-18° to 100°C) |
| Cracking pressure (opening) | Minimum of 1 psig (6.9 kPa) to achieve full open |
| Sealing pressure (closing) | Minimum of 5 psig (34.5 kPa) back pressure |
| Materials | All wetted parts, including the spring are molded PFA and PTFE |
Valve Reliability Test Results |
| Valve Qualification Testing |
| Extensive qualification testing ensures products meet all design requirements for use in even the most demanding environments. Whenever possible, this testing is carried out in actual or simulated customer-use conditions. |
| Burst Pressure – quantifies the maximum pressure the valve can safely contain media, providing confidence in the product design. | |||
| Test conditions | Acceptance criteria | Test results | |
| Burst test | Hydraulic oil pressure increased until leakage detected; test performed @ 23°C (73°F) | Burst pressure must be >3 times rated pressure | PASS |
| Safety Pressure – determines the duration the valve can safely operate under pressure, assuring long-term product performance and safety. | |||
| Test conditions | Acceptance criteria | Test results | |
| Pressure envelope cyclic testing | 1034 kPa (150 psig) @ 23°C (73°F) | No external media leakage for 1 million cycles @ 1.5 times rated pressure applied to each media port | PASS |
| Pressure envelope cyclic testing | 1034 kPa (150 psig) @ 100°C (212°F) | No external media leakage for 1 million cycles @ 1.5 times rated pressure applied to each media port | PASS |
| Accelerated Life Cycle – determines how many cycles the valve can perform reliably and safely in various process environments, including high temperatures, vacuum conditions, and with corrosive chemicals. | |||
| Test conditions | Acceptance criteria | Test results | |
| Accuation cyclic testing | 275 kPa (40 psig) water @ 23°C (73°F) | No external media leakage. Port-to-port seal <0.05 cc H2O/hr for over 1.0 million cycles | PASS |
| Production Performance Evaluation |
| One hundred percent of 3/4" check valves undergo manufacturing performance testing and validation to assure product performance, functionaity, and safety – before the product ever arrives on site. |
| Test | Test conditions | Acceptance criteria |
| External media seal | 689 kPa (100 psig) CDA | Zero bubbles per minute through 1/32" ID tube immersed in water |
| Port-to-port valve seal | 34 kPa (5 psig) CDA | <4 bubbles per minute through 1/32" ID tube immersed in water |
| Minimum cracking pressure | 7 kPa (1 psig) CDA | Valve must open and allow flow |
Successfully Opted for software Updates
Published Jan 27, 2022
Data Sheet
Galtek® Check Valves, 3/4" Orifice, O-ring Free Design - A4
239.6 kB
Part Numbers
| Part Number | Inlet | Outlet | Nut Option |
|---|---|---|---|
| CKM12-12F-12F | 3/4" Flaretek® | 3/4" Flaretek® | PVDF Flaretek® nut |
| CKM12-12F-12F-3 | 3/4" Flaretek® | 3/4" Flaretek® | PFA Flaretek® nut |
| CKM12-12F-12F-6 | 3/4" Flaretek® | 3/4" Flaretek® | CPFA Flaretek® nut |
| CKM12-12F-12F-II | 3/4" Flaretek® | 3/4" Flaretek® | PFA FlareLock® II nut |
| CKM12-12F-12P | 3/4" Flaretek® | 3/4" PureBond® pipe | PVDF Flaretek® nut |
| CKM12-12F-12P-3 | 3/4" Flaretek® | 3/4" PureBond® pipe | PFA Flaretek® nut |
| CKM12-12F-12P-6 | 3/4" Flaretek® | 3/4" PureBond® pipe | CPFA Flaretek® nut |
| CKM12-12F-12P-II | 3/4" Flaretek® | 3/4" PureBond® pipe | PFA FlareLock® II nut |
| CKM12-12K-12K | 3/4" PrimeLock® | 3/4" PrimeLock® | PFA PrimeLock® nut |
| CKM12-12K-12P | 3/4" PrimeLock® | 3/4" PureBond® pipe | PFA PrimeLock® nut |
| CKM12-12P-12P | 3/4" PureBond® pipe | 3/4" PureBond® pipe | N/A |
| CKM12-16F-12P | 1" Flaretek® | 1" PureBond® pipe | PVDF Flaretek® nut |
| CKM12-16F-12P-3 | 1" Flaretek® | 1" PureBond® pipe | PFA Flaretek® nut |
| CKM12-16F-12P-6 | 1" Flaretek® | 1" PureBond® pipe | CPFA Flaretek® nut |
| CKM12-16F-12P-II | 1" Flaretek® | 1" PureBond® pipe | PFA FlareLock® II nut |
| CKM12-16F-16F | 1" Flaretek® | 1" Flaretek® | PVDF Flaretek® nut |
| CKM12-16F-16F-3 | 1" Flaretek® | 1" Flaretek® | PFA Flaretek® nut |
| CKM12-16F-16F-6 | 1" Flaretek® | 1" Flaretek® | CPFA Flaretek® nut |
| CKM12-16F-16F-II | 1" Flaretek® | 1" Flaretek® | PFA FlareLock® II nut |
| CKM12-16K-12P | 1" PrimeLock® | 3/4" PureBond® pipe | PFA PrimeLock® nut |
| CKM12-16K-16K | 1" PrimeLock® | 1" PrimeLock® | PFA PrimeLock® nut |
