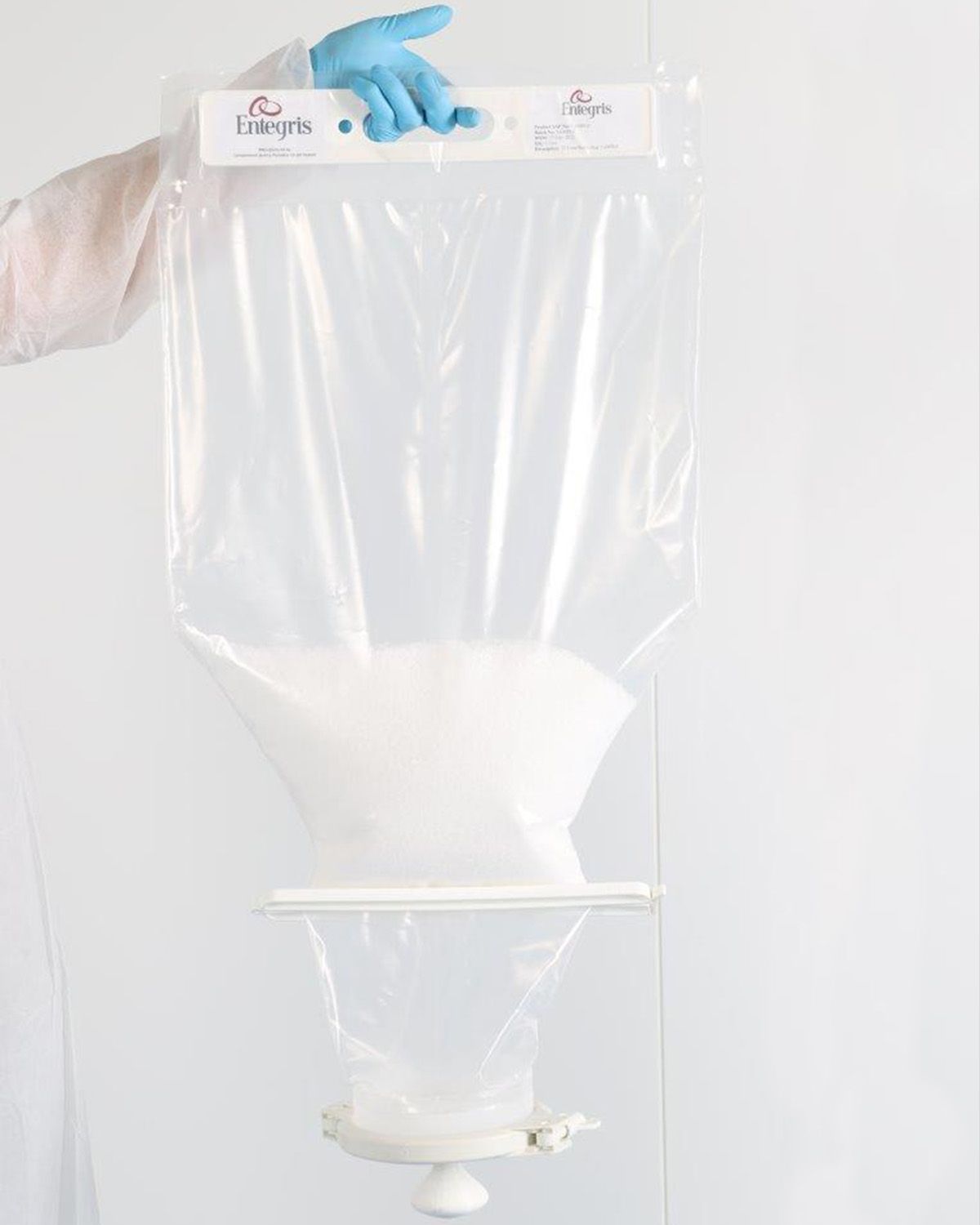

Bioprocess Powder Bags
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Custom bags are available upon request. Contact Entegris with your requirements.
Top of page
Reference Materials
Accessories
Part Numbers
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Bioprocessing
- Powdered cell culture media and buffer salts, and excipients
- Carbon nanofibers
- Tablets/capsules container
- Aseptic processing
Specifications
| Volume | Part Number | MOQ | A | B |
| 5 Liter | FSD04948.01 | 5 | 500 mm (19.7”) | 595 mm (23.4”) |
| 10 Liter | FSD04949.01 | 5 | 500 mm (19.7”) | 700 mm (27.6”) |
| 15 Liter | FSD04950.01 | 5 | 500 mm (19.7”) | 775 mm (30.5”) |
| 25 Liter | FSD04951.01 | 5 | 500 mm (19.7”) | 965 mm (38.0”) |
| 50 Liter | FSD04952.01 | 5 | 600 mm (23.6”) | 1085 mm (42.7”) |
| Sizes | 5 L, 10 L, 15 L, 25 L, 50 L |
| Materials | Flex 125 - Anti-static, monolayer, polyethylene-based film |
| Connection | 4” sanitary flange dispense port |
| Handling | Integrated reinforced handle, hoist compatible |
| Optional flange handle available for sanitary flange port | |
| Standard components | Bag with HIPS dust cover |
| Optional accessories | WeLoc Clip, Concentric reducer, 4” Gasket, 4” Cap, 4” tri-clamp, 4” cap with handle |
| Traceability | Units are individually labeled |
| Quality | Manufactured in an ISO Class 7 cleanroom |
| USP 87, USP 88, USP 661 | |
| 100% unit visual inspection | |
| Batch pressure testing per ISO 10648-2 | |
| 24mo Post Gamma | |
| Validation guide available | |
| BSE/TSE free | |
| cGMP compliant |
Successfully Opted for software Updates
Accessories Ordering Information
| PART NUMBER |
DESCRIPTION | GAMMA IRRIDATED* |
PACK QUANTITY |
MINIMUM ORDER QUANTITY |
ORDER INCREMENT |
| FXD05057.01 | 4” gasket, 4" cap, 4" Tri-Clamp® | No | 1 | 1 | 1 |
| FXD05153.01 | Concentric reducer (4” to 3”) | No | 1 | 1 | 1 |
| FXD05154.01 | Powder bag clips | No | 1 | 5 | 5 |
| FXD05055.01 | 4” cap with built-in knob/handle for very heavy filled power bags |
No | 5 | 1 | 1 |
| FXD05279.01 | 4” sanitary flange and end cap | No | 5 | 1 | 1 |
| FXD05278.01 | 4” nylon Tri-Clamp® | No | 5 | 1 | 1 |
| *Gamma irridated components are available upon request. Please contact your Entegris account manager. | |||||
| Part Number | Volume | Minimum order quantity | Order Increment | Irradiated |
|---|---|---|---|---|
| FSD04948.01 | 5 L | 5 | 5 | Yes |
| FSD04948.01U | 5 L | 5 | 5 | No |
| FSD04949.01 | 10 L | 5 | 5 | Yes |
| FSD04949.01U | 10 L | 5 | 5 | No |
| FSD04950.01 | 15 L | 5 | 5 | Yes |
| FSD04950.01U | 15 L | 5 | 5 | No |
| FSD04951.01 | 25 L | 5 | 5 | Yes |
| FSD04951.01U | 25 L | 5 | 5 | No |
| FSD04952.01 | 50 L | 5 | 5 | Yes |
| FSD04952.01U | 50 L | 5 | 5 | No |
Custom bags are available upon request. Contact Entegris with your requirements.
