NT™ Pressure Transducers, Single-port, Model 4100
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Inlet/Outlet Port Connection: For PrimeLock® and other options not shown here, please Contact Entegris.
Note: Product specified with a flared connection is packaged with one PVDF nut per connection. For alternative nut material or custom configurations and specifications, please contact Entegris.
CAD- You have the ability to access 3D and 2D product data that is compatible with today's CAD modeling packages. To decrease system design time, simply download parts directly into your design.

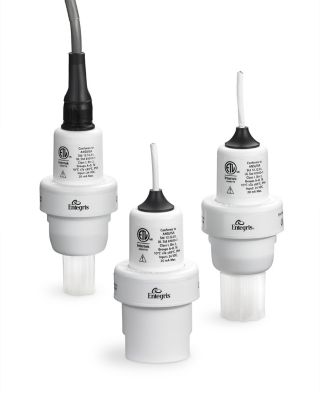

The NT Pressure Transducer, Single-port Model 4100, which allows the user to obtain valuable and critical diagnostic information, which is used for monitoring or controlling process conditions, such as:
- Chemical and DI water dispense
- Filter life monitoring
- Back-pressure in recirculation loops
- Point-of-use dispense
- Tool prioritization
Specifications
Inlet/Outlet Port Connection | Dimensions | |
A | B | |
1/4" Flaretek tube fitting | 76.2 mm (3.00") | 25.1 mm (0.99") |
3/8" Flaretek tube fitting | 76.2 mm (3.00") | 26.9 mm (1.06") |
1/2" Flaretek tube fitting | 76.2 mm (3.00") | 29.0 mm (1.14") |
3/8" PrimeLock tube fitting | 76.2 mm (3.00") | 20.3 mm (0.80") |
1/2" PrimeLock tube fitting | 76.2 mm (3.00") | 22.6 mm (0.89") |
1/4" FNPT | 82.3 mm (3.24") | - |
1/2" FNPT | 88.9 mm (3.50") | - |
1/4" MNPT | 76.2 mm (3.00") | 15.0 mm (0.59") |
1/4" Super 300 Type Pillar® tube fitting | 76.2 mm (3.00") | 11.0 mm (0.43") |
3/8" Super 300 Type Pillar tube fitting | 76.2 mm (3.00") | 15.0 mm (0.59") |
1/2" Super 300 Type Pillar tube fitting | 76.2 mm (3.00") | 17.5 mm (0.69") |
Materials of construction: | Wetted parts: | Body: PTFE | |
Sensor interface: PFA or CTFE | |||
Primary seal: Perfrez® | |||
Nonwetted parts: | Polypropylene, polyethylene, Viton®, PVDF (in addition to materials listed above) | ||
Pressure range: | 0 to 207 kPa (0 to 30 psig); 0 to 414 kPa (0 to 60 psig); | ||
0 to 690 kPa (0 to 100 psig); 0 to 1034 kPa (0 to 150 psig) | |||
Over-pressure limit: | 150% of full scale range or maximum pressure rating of fitting | ||
Process temperature: | 10° to 65°C (50° to 149°F); 65° to 95°C (149° to 203°F) at 517 kPa (75 psig) maximum | ||
Process connection options: | Flaretek tube fitting: 1/4", 3/8", 1/2" PrimeLock tube fitting: 3/8", 1/2" FNPT: 1/4", 1/2" MNPT: 1/4" Super 300 Type Pillar tube fitting: 1/4", 3/8", 1/2" |
||
Electrical input: | 24 VDC (12-30 VDC input voltage) | ||
Electrical output: | 4-20 mA, 0-5 VDC, 0-10 VDC | ||
Reference accuracy: | ±1% of full scale (includes combined effects of linearity, hysteresis and repeatability) |
||
Enclosure: | IP54 | ||
Approvals: | CE KCs IECEx ETL 19.0009X, Ex ic IIC T5 Gc ATEX II 3 G Ex ic IIC T5 Gc ITS20ATEX205536X ETL Listed Intertek 4009778 - Conforms to ANSI®/ISA® Standard 121201 - UL Standard 61010-1 - Class 1, Division 2, Groups A, B, C, D, T6 |
||
Note: Specifications are subject to change without notice. Please consult the factor for the most current information. |
