SC Housing Kit

Bulk, multi-round, stainless steel filter housing with 4, 7, 11 or 13 filter capacity in semiconductor and chemical manufacturing applications.

Read More Read Less

Specify Your Part

Surface Finish

Cartridge Capacity

Flange Size

Flange Type

O-ring

Materials

Length

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Symbols

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications SC Housing Kit Applications

Industry: Semiconductor, Chemical Manufacturing
Process: Facilities
Chemical: Aggressive Acids and Bases, Solvents
Installation Point: Bulk

Specifications

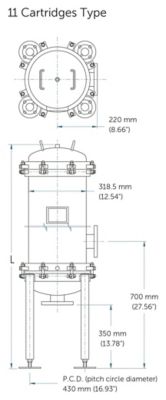

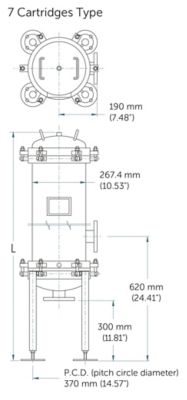

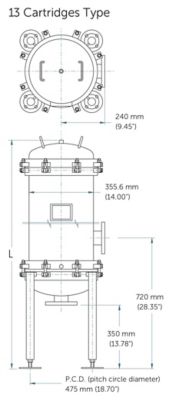

Drawings

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jan 1, 2010 Data Sheet SC Housings

Download PDF 899.2 kB

Part Numbers

SC Housing Kit Part Numbers

Part Number	Surface Finish	Cartridge Capacity	Flange Size	Flange Type	O-ring	Materials	Length
SC01044AVF3	Internal - pickling: external - pickling	4	40A	JIS 10K FF	FKM	304 stainless steel	10"
SC01044CTAE	Internal - EP: external - pickling	4	28	ANSI 150#	E-FKM	304 stainless steel	10"
SC01044CTF3	Internal - EP: external - pickling	4	40A	JIS 10K FF	E-FKM	304 stainless steel	10"
SC01044CTF4	Internal - EP: external - pickling	4	28	JIS 10K FF	E-FKM	304 stainless steel	10"
SC01044CVF4	Internal - EP: external - pickling	4	50A	JIS 10K FF	FKM	304 stainless steel	10"
SC0104LBTF3	Internal - #400 buffering: external - pickling	4	50A	JIS 10K FF	E-FKM	316L stainless steel	10"
SC0104LCTF3	Internal - EP: external - pickling	4	40A	JIS 10K FF	E-FKM	316L stainless steel	10"
SC0104LCVF4	Internal - EP: external - pickling	4	50A	JIS 10K FF	FKM	316L stainless steel	10"
SC01074CTF4	Internal - EP: external - pickling	7	50A	JIS 10K FF	E-FKM	304 stainless steel	10"
SC0204LATF3	Internal - pickling: external - pickling	4	40A	JIS 10K FF	E-FKM	316L stainless steel	20"
SC0204LBTF3	Internal - #400 buffering: external - pickling	4	40A	JIS 10K FF	E-FKM	316L stainless steel	20"
SC02064CTAG	Internal - EP: external - pickling	6	38	ANSI 150#	E-FKM	304 stainless steel	20"
SC0207LAVF3	Internal - pickling: external - pickling	7	40A	JIS 10K FF	FKM	316L stainless steel	20"
SC03074AVF3	Internal - pickling: external - pickling	7	40A	JIS 10K FF	FKM	304 stainless steel	30"
SC0407LCVAE	Internal - EP: external - pickling	7	28	ANSI 150#	FKM	316L stainless steel	40"
