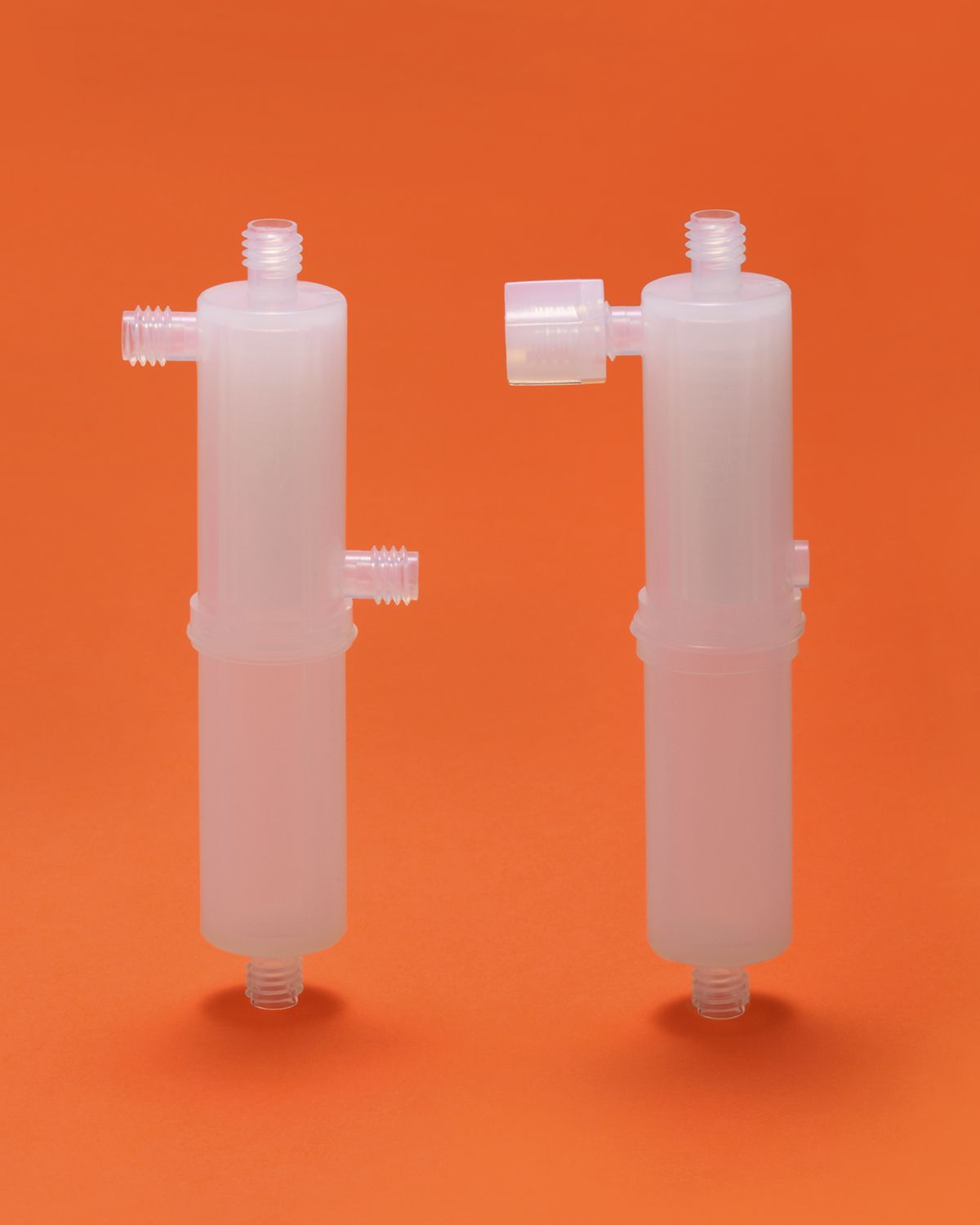

Fluoroline™ DF Plus Filter

Clean, point-of-dispense filter for liquid crystal applications with reliable particle protection and flow rate performance.

Read More Read Less

Specify Your Part

Retention Rating

Connection

Pack

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Symbols

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Fluoroline™ DF Plus Filter Applications

Industry: Flat Panel Display
Process: ODF (Liquid Crystal)
Chemistry: Liquid Crystal
Installation Point: Point of Dispense

Specifications

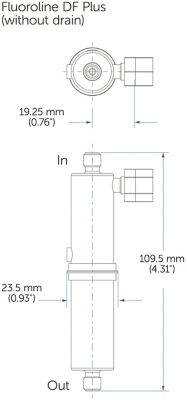

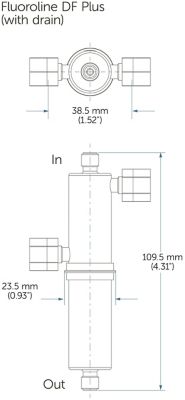

Drawings

Performance Data

Product Specifications

Materials:	Membrane	PTFE
	Supports, shell	PFA
Retention rating:	0.1 µm, 0.2 µm
Connections:	Inlet/Outlet	1/8" compression seal
	Inlet/Outlet	1/8" compression seal
Maximum operating conditions:	Maximum inlet pressure	0.41 MPa (4.1 bar, 59 psi) @ 20°C (68°F)
	Maximum forward differential pressure	0.34 MPa (3.4 bar, 49 psi) @ 20°C (68°F)
	Maximum reverse differential pressure	0.034 MPa (0.3 bar, 4 psi) @ 20°C (68°F)
	Maximum operating temperature	60°C (148°F)
Attachments:	PFA plug for 1/8" compression seal

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jul 25, 2016 Data Sheet Fluoroline™ DF Plus Disposable Filters

Download PDF 564.6 kB

Part Numbers

Fluoroline™ DF Plus Filter Part Numbers

Part Number	Retention Rating	Connection	Pack
DFFG01D8S1P	0.2 µm	1/8" compression seal, with drain	2
DFFG01N8S1P	0.2 µm	1/8" compression seal, without drain	1
DFFV01D8S1P	0.1 µm	1/8" compression seal, with drain	2
DFFV01N8S1P	0.1 µm	1/8" compression seal, without drain	1
