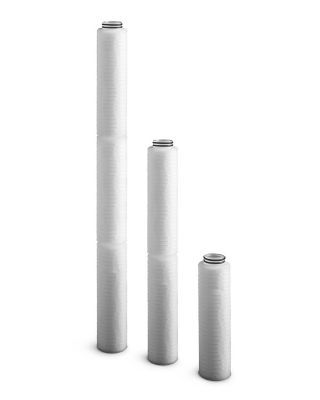

Microgard™ PI Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials

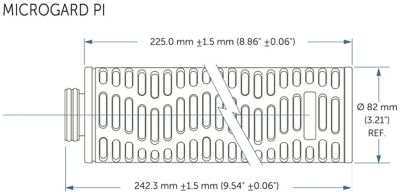

CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Industry: Semiconductor, Chemical Manufacturing, Flat Panel Display
- Process: Photolithography, Facilities, "Organic Layer Printing
- Chemistry: High Viscosity Photochemicals
- Installation Point: Point of Tool
Specifications
| Materials: | Membrane: Patented hydrophilic ultra-high molecular weight polyethylene (UPE) |
| Supports, core and sleeve: High-density polyethylene (HDPE) | |
| O-rings: Fluoropolymer encapsulated Viton® fluoroelastomer (TEV) O-rings | |
| Connections: | Code 0 (2-222) |
| Membrane area: | 0.2 µm: 8,800 cm2 (9.47 ft2) |
| 0.5 µm: 8,000 cm2 (8.6 ft2) | |
| Maximum operating conditions: | Maximum inlet pressure: 0.39 MPa (3.9 bar, 56.6 PSID) at 25°C |
| Maximum forward differential pressure: 0.39 MPa (3.9 bar, 56.6 psid) at 25°C | |
| Maximum reverse differential pressure: 0.255 MPa (2.55 bar, 39.3 psid) at 25°C | |
| Maximum operating temperature: 60°C (140°F) | |
| Retention efficiency: | 0.2 µm: >99.999% retention of 0.198 µm PSL beads |
| 0.5 µm: >99.999% retention of 0.55 µm PSL beads |
Successfully Opted for software Updates
Part Numbers

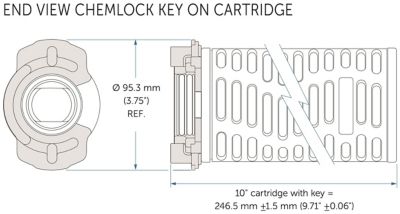

| Part Number | Typical Flow Rate | Chemlock® Key | Length | Retention Rating |
|---|---|---|---|---|
| PIAA01P01 | Low Flux | No | 10" | 1 µm |
| PIAA01P01K | Low Flux | Yes | 10" | 1 µm |
| PIAA02P01 | Low Flux | No | 20" | 1 µm |
| PIAG01P01 | Low Flux | No | 10" | 0.2 µm |
| PIAG01P01D | Low-Mid Flux | No | 10" | 0.2 µm |
| PIAG01P01K | Low-Mid Flux | Yes | 10" | 0.2 µm |
| PIAG02P01 | Low-Mid Flux | No | — | 0.2 µm |
| PIAG02P01K | Low-Mid Flux | Yes | 20" | 0.2 µm |
| PIAG02P01T | Low-Mid Flux | No | 20" | 0.2 µm |
| PIAH01P01 | Low Flux | No | 10" | 0.5 µm |
| PIAH01P01K | Low Flux | Yes | 10" | 0.5 µm |
| PIAH02P01 | Low Flux | No | 20" | 0.5 µm |
