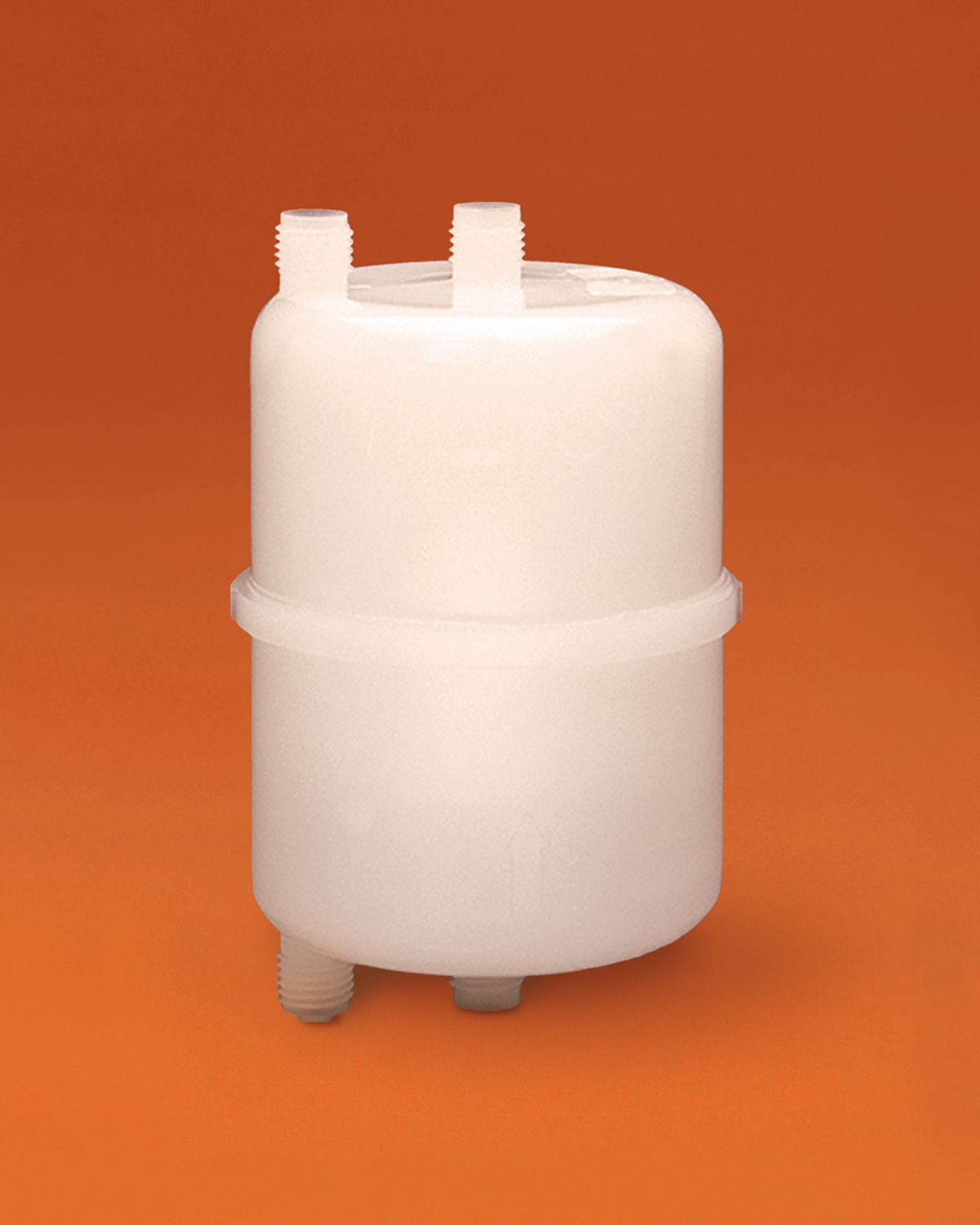

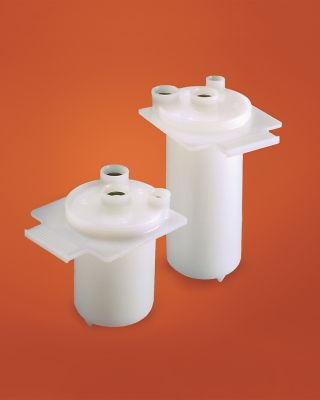

Panelgard® PDP 1-2-3 and 1-2-3 Filter

Point of tool, photochemical and solvent filter with high flow rate and good contaminant retention performance in flat panel display color filter/resist and photolithography applications.

Read More Read Less

Specify Your Part

Membrane/Media

Length

Retention Rating

O-ring

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Panelgard® PDP 1-2-3 and 1-2-3 Filter Applications

Industry: Flat Panel Display
Process: Color Filter (Color Resist), Photolithography
Chemistry: Photochemical, Solvent
Installation Point: Point of Tool

Specifications

Drawings

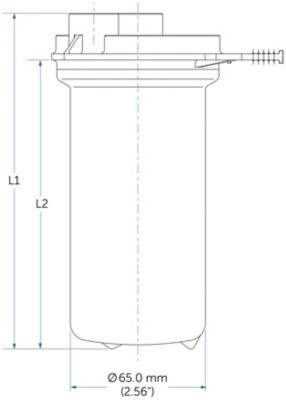

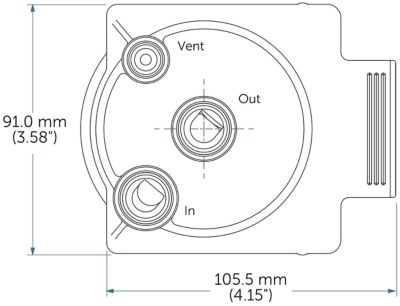

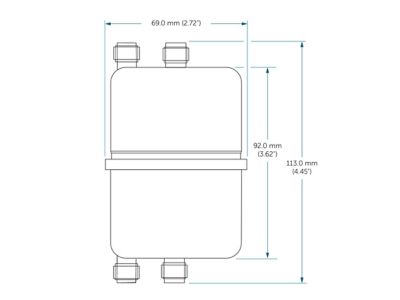

The dimensions of L1 and L2 of each filter are as follows:
