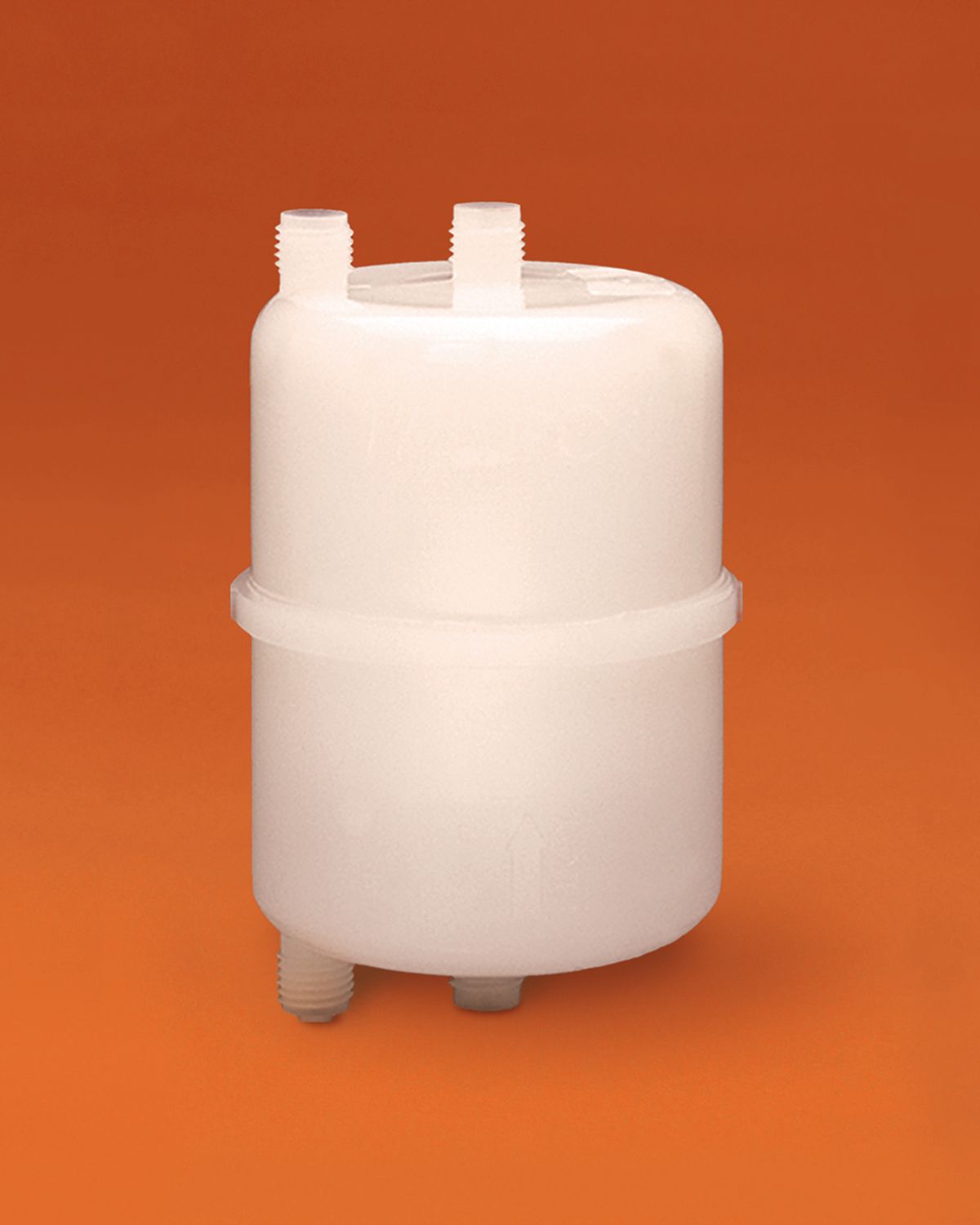

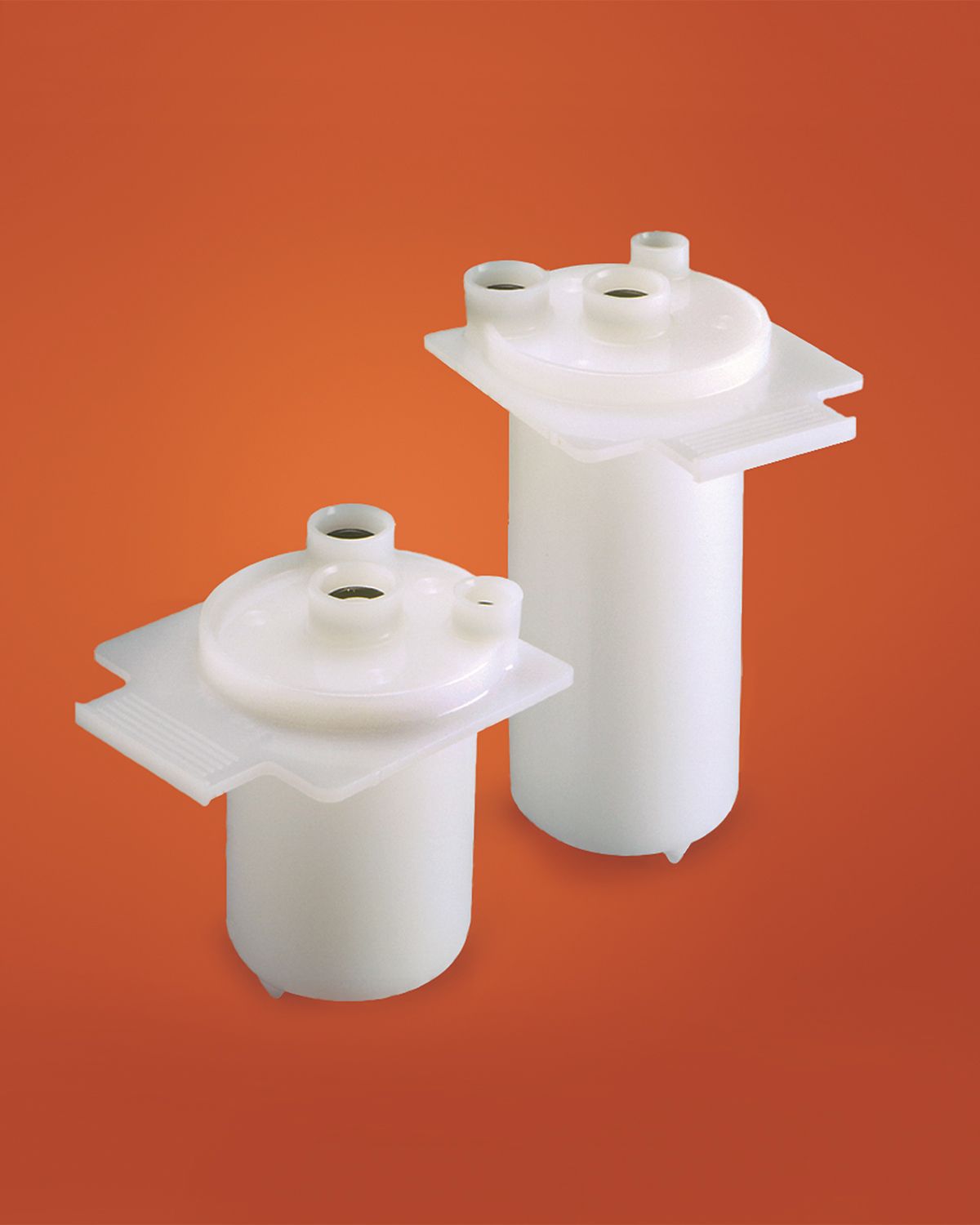

Panelgard™ PDP 1-2-3 and 1-2-3 Filter

Point of tool, photochemical and solvent filter with high flow rate and good contaminant retention performance in flat panel display color filter/resist and photolithography applications.

Read More Read Less

Specify Your Part

Membrane/Media

Length

Retention Rating

O-ring

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Panelgard™ PDP 1-2-3 and 1-2-3 Filter Applications

Industry: Flat Panel Display
Process: Color Filter (Color Resist), Photolithography
Chemistry: Photochemical, Solvent
Installation Point: Point of Tool

Specifications

Drawings

The dimensions of L1 and L2 of each filter are as follows:
L1: short capsule 108 mm (4.25"), long capsule 162 mm (6.38")
L2: short capsule 87 mm (3.42"), long capsule 137 mm (5.39")

Performance Data

Product Specifications

		Panelgard™ 1-2-3 UPE Filters	Panelgard™ 1-2-3 PDP Polypropylene Filters
Materials:	Membrane	Patented hydrophobic ultra-high molecular weight polyethylene (UPE)	Polypropylene
	Supports	High-density polyethylene (HDPE)	Polypropylene
	O-ring	Perfluoroelastomer	Perfluoroelastomer, EPDM
	Shell	Polypropylene	Polypropylene
Connections:	See data sheet
Membrane area:	Short	1600 cm² (248 in²)	1.2 µm, 2.5 µm 1300 cm² (201.5 in²)
			5.0 µm 1700 cm²(263.5 in²)
	Long	3000 cm² (465 in²)	1.2 µm, 2.5 µm 2300 cm² (356.5 in²)
			5.0 µm 3000 cm²(465 in²)

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Dec 1, 2012 Data Sheet Panelgard™ PDP Disposable Filters

142.8 kB

Published Sep 1, 2016 Data Sheet Panelgard™ 1-2-3 UPE and PDP Disposable Filters

267.4 kB

Part Numbers

Panelgard™ PDP 1-2-3 and 1-2-3 Filter Part Numbers

Part Number	Membrane/Media	Length	Retention Rating	O-ring
AD0G0LEM1	PTFE	Long Capsule	0.2 µm	EPDM
ADEG0SPM1	PTFE	Short Capsule	0.2 µm	Perfluoroelastomer
ADES0LPM1	PTFE	Long Capsule	0.2 µm	Perfluoroelastomer
AFSG0LPM1	UPE	Long Capsule	0.2 µm	Perfluoroelastomer
AFUG0LPBT	UPE	Long Capsule	0.2 µm	Perfluoroelastomer
AFUG0LPM1	UPE	Long Capsule	0.2 µm	Perfluoroelastomer
AFUG0SPBT	UPE	Short Capsule	0.2 µm	Perfluoroelastomer
AFUG0SPM1	UPE	Short Capsule	0.2 µm	Perfluoroelastomer
AFUV0LPBT	UPE	Long Capsule	0.1 µm	Perfluoroelastomer
AFUV0LPM1	UPE	Long Capsule	0.1 µm	Perfluoroelastomer
AFUV0SPBT	UPE	Short Capsule	0.1 µm	Perfluoroelastomer
AFUV0SPM1	UPE	Short Capsule	0.1 µm	Perfluoroelastomer
AFUZ0LPBT	UPE	Long Capsule	0.05 µm	Perfluoroelastomer
AFUZ0LPM1	UPE	Long Capsule	0.05 µm	Perfluoroelastomer
AFUZ0SPBT	UPE	Short Capsule	0.05 µm	Perfluoroelastomer
AFUZ0SPM1	UPE	Short Capsule	0.05 µm	Perfluoroelastomer
APD06LEM1	PP	Long Capsule	0.6 µm	EPDM
APD06LPM1	PP	Long Capsule	0.6 µm	Perfluoroelastomer
APD06SEM1	PP	Short Capsule	0.6 µm	EPDM
APD06SPM1	PP	Short Capsule	1.2 µm	Perfluoroelastomer
APD12LEM1	PP	Long Capsule	1.2 µm	EPDM
APD12LPM1	PP	Long Capsule	1.2 µm	Perfluoroelastomer
APD12SEM1	PP	Short Capsule	1.2 µm	EPDM
APD12SPM1	PP	Short Capsule	1.2 µm	Perfluoroelastomer
APD25LEM1	PP	Long Capsule	2.5 µm	EPDM
APD25LPM1	PP	Long Capsule	2.5 µm	Perfluoroelastomer
APD25SEM1	PP	Short Capsule	2.5 µm	EPDM
APD25SPM1	PP	Short Capsule	2.5 µm	Perfluoroelastomer
APD50LEM1	PP	Long Capsule	5 µm	EPDM
APD50LPM1	PP	Long Capsule	5 µm	Perfluoroelastomer
APD50SEM1	PP	Short Capsule	5 µm	EPDM
APD50SPM1	PP	Short Capsule	5 µm	Perfluoroelastomer
