Torrento® S Filter

Best-in-class, leading-edge filtration of solvents and BEOL chemistries in sub 22 nm technology nodes. Enables high flow rate and retention performance.

Read More Read Less

Specify Your Part

Form Factor

Typical Flow Rate

Chemlock Key

Prewet

O-ring

Connection

Length

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

Applications Torrento® S Filter Applications

Industry: Semiconductor, Chemical Manufacturing
Process: Wet Etch and Clean, Facilities
Chemistry: Solvent
Installation Point: Point of Tool, Point of Dispense, Bulk

Specifications

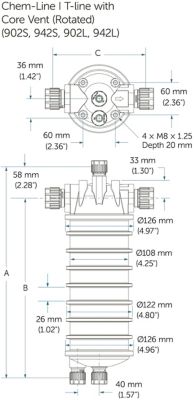

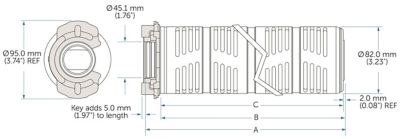

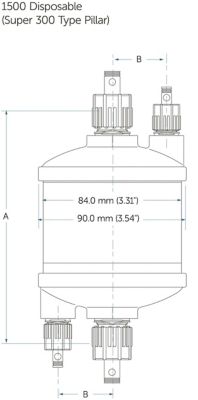

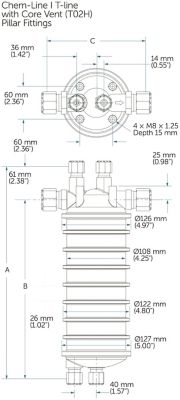

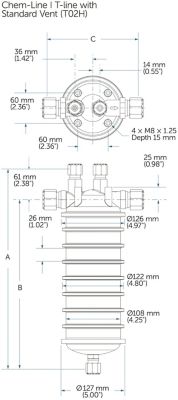

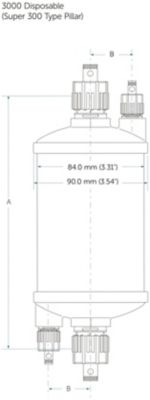

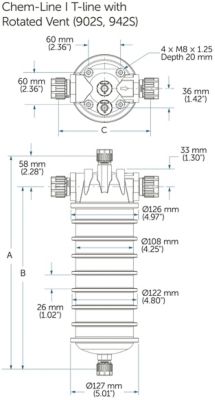

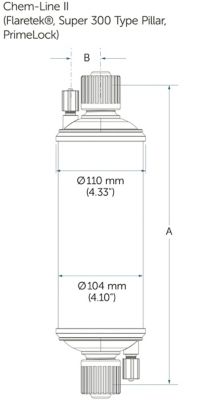

Drawings

Performance Data

Product Specifications

		Torrento S Series ATE/AT3/ATF Cartridges	Torrento S Series 10 nm ATE/AT3/ATF Chem-Line I and II
Materials:	Membrane:	Prewet, nondewetting PTFE
	Supports	PFA
	Catridge o-ring options	E-FKM, E-ETP, Kalrez® (6375UP)	-
	Shell	PFA
Retention rating:		10 nm
Membrane area:	10"	ATE 10" 2 m² (21 ft²)
		ATE 10" 2.4 m² (25.8 ft²)
		ATF 10" 2.4 m2 (25.8 ft2) ATF 20" Cartridges 4.8 m2 (51.7 ft2)	ATF 20" Disposables N/A
Cartridge connections:		Code 0 (2-222) o-rings
Maximum operating conditions:	Maximum operating pressure:	0.58 MPa (5.8 bar; 84 psi) @ 25°C (77°F)
		0.097 MPa (0.97 bar; 14 psi) @ 200°C (392°F)
	Maximum forward differential pressure	0.44 MPa (4.4 bar; 64 psi) @ 25°C (77°F)
		0.05 MPa (0.52 bar, 7.5 psi) @ 200°C (392°F)
	Maximum reverse pressure	0.34 MPa (3.45 bar, 50 psi) @ 25°C (77°F)
	Maximum operating temperature:	200°C (392°F)
Metallic extractables:	UCM-16 clean	Testing conducted for 16 metals
Other extractables (prewet only):	UCM-16 clean	TOC, CI, NVR

		Torrento S Series 10 nm Small Disposables 1500/3000
Membrane area:	10"	1500 type 0.19 m² (2.05 ft²)
		3000 type 0.44 m² (4.74 ft²)
Maximum operating conditions:	Maximum operating pressure:	0.59 MPa (5.9 bar, 86 psi) @ 25°C (77°F)
		0.19 MPa (1.9 bar, 28 psi) @ 95°C (203°F)
	Maximum forward differential pressure	0.39 MPa (3.9 bar; 57 psi) @ 25°C (77°F)
		0.19 MPa (1.9 bar; 28 psi) @ 95°C (203°F)
	Maximum reverse pressure	0.29 MPa (2.9 bar; 42 psi) @ 25°C (77°F)
	Maximum operating temperature:	95°C (203°F)
Notes: For solvents, select the "Dry" option. For aqueous-solvent blends, select the "Prewet" option. All Torrento S-series 10 nm filter configurations are PFOA free.

Reference Materials Product Documentation

Published Nov. 15, 2015 Data Sheet Torrento® S Series Filters

Download PDF 1.8 MB

CAD CAD Symbols

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Part Numbers

Torrento® S Filter Part Numbers

Part Number	Form Factor	Typical Flow Rate	Chemlock Key	Prewet	O-ring	Connection	Length
TS2TF1C102SD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	In-line male offset, 3/4" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TS2TF1C102SP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	In-line male offset, 3/4" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TS2TF1C142SD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	In-line male offset, 1" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	10"
TS2TF1C142SP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	In-line male offset, 1" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	10"
TS2TF1CM01SD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	In-line male, 3/4" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	10"
TS2TF1CM01SP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	In-line male, 3/4" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	10"
TS2TF1CM21FP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	In-line male, 1/3" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	10"
TS2TF1CM21SD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	In-line male, 1/2" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	10"
TS2TF1CM41FD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	In-line male, 1" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	10"
TS2TF1CM41FP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	In-line male, 1" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	10"
TS2TF1CM41SD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	In-line male, 1" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	10"
TS2TF1CM41SP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	In-line male, 1" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	10"
TSCT31C0B0P	Cartridge	High Flux	No	Yes	E-ETP	Code 0	10"
TSCT31C0BKP	Cartridge	High Flux	Yes	Yes	E-ETP	Code 0	10"
TSCTE1C0B0D	Cartridge	Mid-High Flux	No	No	E-ETP	Code 0	10"
TSCTE1C0RKP	Cartridge	Mid-High Flux	Yes	Yes	Kalrez® 6375UP	Code 0	10"
TSCTF1C0B0D	Cartridge	High Flux-optimized	No	No	E-ETP	Code 0	10"
TSCTF1C0B0P	Cartridge	High Flux-optimized	No	Yes	E-ETP	Code 0	10"
TSCTF1C0BKD	Cartridge	High Flux-optimized	Yes	No	E-ETP	Code 0	10"
TSCTF1C0BKP	Cartridge	High Flux-optimized	Yes	Yes	E-ETP	Code 0	10"
TSCTF1C0RKD	Cartridge	High Flux-optimized	No	No	Kalrez® 6375UP	Code 0	10"
TSCTF1C0RKP	Cartridge	High Flux-optimized	Yes	Yes	Kalrez® 6375UP	Code 0	10"
TSCTF2C0B0D	Cartridge	High Flux-optimized	No	No	E-ETP	Code 0	20"
TSCTF2C0B0P	Cartridge	High Flux-optimized	No	Yes	E-ETP	Code 0	20"
TSCTF2C0BKP	Cartridge	High Flux-optimized	Yes	Yes	E-ETP	Code 0	20"
TSCTF300B0D	Cartridge	High Flux-optimized	No	No	E-ETP	Code 0	30"
TSCTF300B0P	Cartridge	High Flux-optimized	No	Yes	E-ETP	Code 0	30"
TSDT31CT02HP	Chem-Line™ I Large Disposable	High Flux	N/A	Yes	N/A	T-line, rotated vent, 3/4" inlet/outlet, 1/2" vent/drain, Super Type Pillar® fitting	30"
TSDTF1C902SD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	T-line, rotated vent, 3/4' inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSDTF1C942SD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSDTF1C942SP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSDTF1CT02HD	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	No	N/A	T-line, rotated vent, 3/4" inlet/outlet, 1/2" vent/drain, Super Type Pillar® fitting	10"
TSDTF1CT02HP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	T-line, rotated vent, 3/4" inlet/outlet, 1/2" vent/drain, Super Type Pillar® fitting	10"
TSDW3CE0P3PM	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	3/4" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	30"
TSPT15CM31SD	P1500 Small Disposable	Low Flux	N/A	No	N/A	3/8" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	4"
TSPT15CM31SP	P1500 Small Disposable	Low Flux	N/A	Yes	N/A	3/8" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	4"
TSPT15JM21SD	P1500 Small Disposable	Low Flux	N/A	No	N/A	In-line male, 3/4" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	4"
TSPT30CM31SP	P3000 Small Disposable	Low Flux	N/A	Yes	N/A	3/8" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	8"
TSPT30JM21SD	P3000 Small Disposable	Low Flux	N/A	No	N/A	In-line male, 3/4" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	8"
TSVT31C902SD	Chem-Line™ I Large Disposable	High Flux	N/A	No	N/A	T-line, rotated vent, 3/4' inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	30"
TSVT31C902SP	Chem-Line™ I Large Disposable	High Flux	N/A	Yes	N/A	T-line, rotated vent, 3/4' inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	30"
TSVT31C942SD	Chem-Line™ I Large Disposable	High Flux	N/A	No	N/A	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	30"
TSVT31C942SP	Chem-Line™ I Large Disposable	High Flux	N/A	Yes	N/A	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	30"
TSVTE1C902SD	Chem-Line™ I Large Disposable	Mid-High Flux	N/A	No	N/A	T-line, rotated vent, 3/4' inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSVTE1C902SP	Chem-Line™ I Large Disposable	Mid-High Flux	N/A	Yes	N/A	T-line, rotated vent, 3/4' inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSVTE1C942SD	Chem-Line™ I Large Disposable	Mid-High Flux	N/A	No	N/A	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSVTE1C942SP	Chem-Line™ I Large Disposable	Mid-High Flux	N/A	Yes	N/A	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSVTF1C902SP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	T-line, rotated vent, 3/4' inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
TSVTF1C942SP	Chem-Line™ I Large Disposable	High Flux-optimized	N/A	Yes	N/A	T-line, rotated core vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	10"
