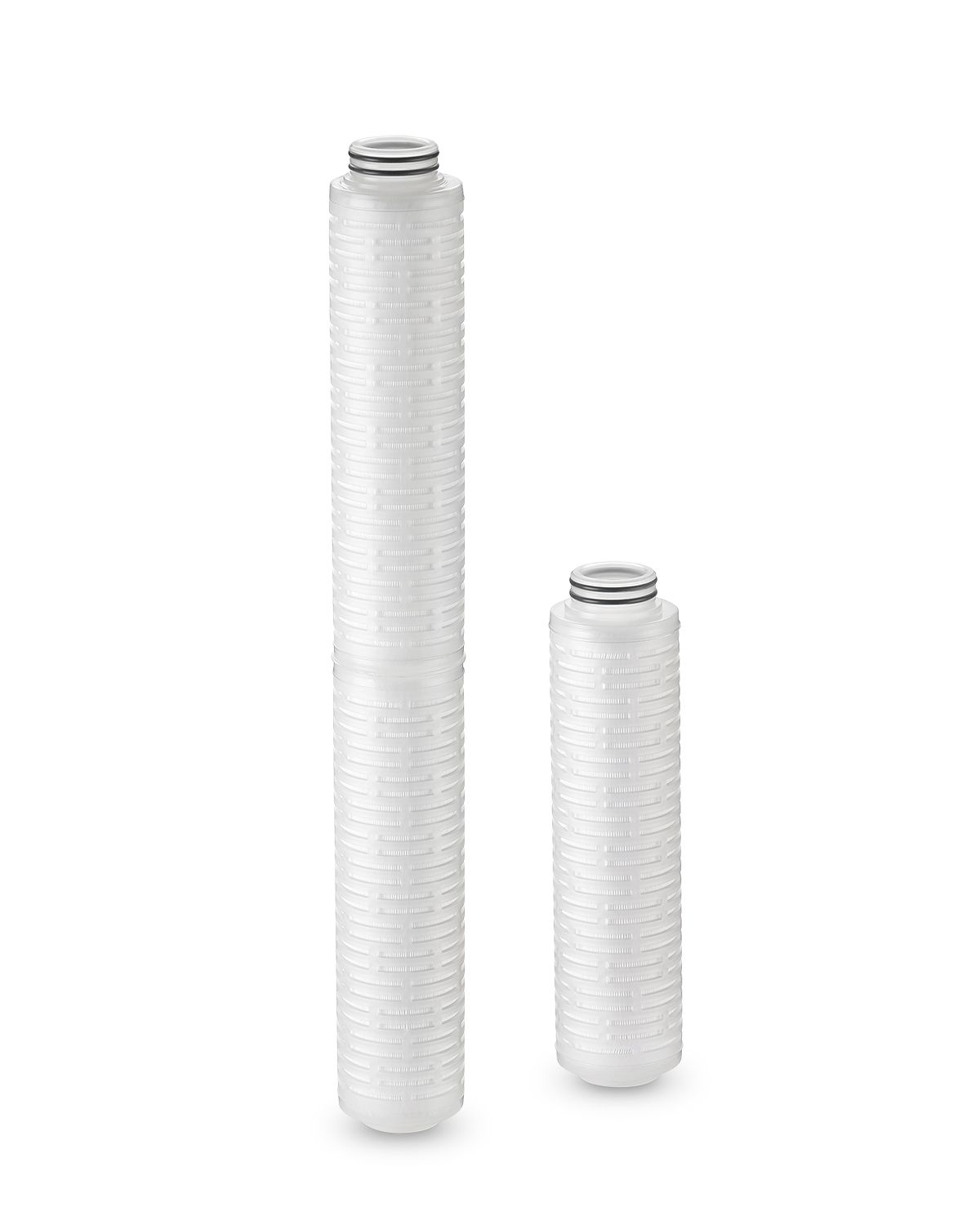

Trinzik™ PEH Aqueous Process Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
Hard Disk Drive targeted applications:
- Nickel plating
- Post-polish cleans
- HDD media cleaning
- Chemical delivery systems
Flat Panel Display targeted applications:
- ITO etch
- Substrate cleans
- CF developer
- Spray rinse
General applications:
- Aqueous cleaning chemistries including dilute acids and bases
- Alkali solutions
- Detergents and cleaning solutions
- DI water
- Chemical delivery systems
Specifications
Code 0 - 222 Flat | Code 5 - 222 Fin | ||||
| Dimensions | Dimensions | ||||
| Length | A | B | Length | A | B |
| 10" | 274.3 mm (10.8") | 257.8 mm (10.2") | 10" | 315.0 mm (12.4") | 298.5 mm (11.8") |
| 20" | 520.7 mm (20.5") | 504.2 mm (19.9") | 20" | 561.3 mm (22.1") | 544.8 mm (21.5") |
| 30" | 764.5 mm (30.1") | 748.0 mm (29.5") | 30" | 805.2 mm (31.7") | 788.7 mm (31.1") |
Code 6 - 226 Flat | Code 7 - 226 Fin | ||||
| Dimensions | Dimensions | ||||
| Length | A | B | Length | A | B |
| 10" | 276.9 mm (10.9") | 265.4 mm (10.5") | 10" | 316.5 mm (12.5") | 306.1 mm (12.1") |
| 20" | 523.2 mm (20.6") | 511.9 mm (20.2") | 20" | 562.9 mm (22.2") | 552.5 mm (21.8") |
| 30" | 767.1 mm (30.2") | 755.7 mm (29.8") | 30" | 806.7 mm (31.8") | 796.3 mm (31.4") |
| Materials of construction: | Membrane: | Hydrophilic PTFE |
| Supports, core, sleeve: | Polypropylene (PP) | |
| O-ring: | Encapsulated FKM (E-FKM), EPDM, FKM | |
| Retention rating: | 30 nm, 0.05 µm, 0.1 µm | |
| Cartridge connections: | Code 0 (222 Flat), Code 5 (222 Fin), Code 6 (226 Flat), Code 7 (226 Fin) | |
| Maximum operating conditions: | Maximum forward differential pressure: | 5.5 bar (80 psid) @ 25°C (77°F) |
| Maximum reverse differential pressure: | 3.4 bar (50 psid) @ 25°C (77°F) | |
| Maximum temperature: | 80°C (176°F) | |
| Dimensions: | Length: | 10", 20", 30" |
| Diameter: | 69 mm (2.7") |
