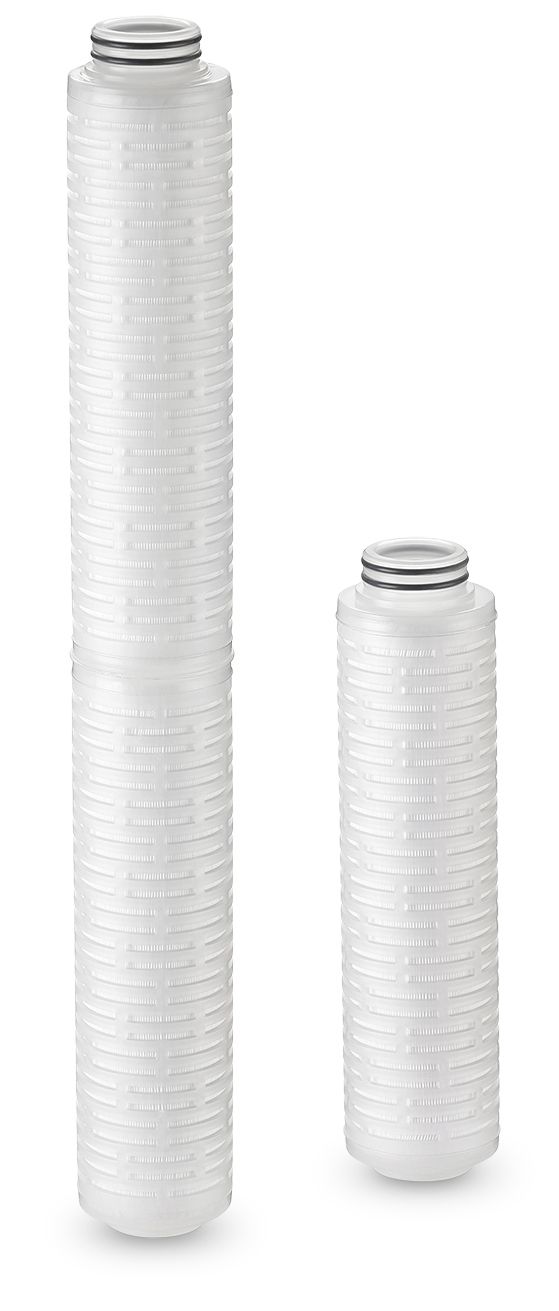

Trinzik™ PSP Dilute Process Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Wet stations
- Spray tools
- Low-temperature etch baths
- Dilute chemical recirculation baths
- Post-polish cleans
Specifications
Code 0 - 222 Flat | Code 5 - 222 Fin | ||||
| Dimensions | Dimensions | ||||
| Length | A | B | Length | A | B |
| 10" | 276.1 mm (10.9") | 257.8 mm (10.2") | 10" | 315.0 mm (12.4") | 298.5 mm (11.8") |
Code 6 - 226 Flat | Code 7 - 226 Fin | ||||
| Dimensions | Dimensions | ||||
| Length | A | B | Length | A | B |
| 10" | 276.9 mm (10.9") | 265.4 mm (10.5") | 10" | 316.5 mm (12.5") | 306.1 mm (12.1") |
| Dimensions | ||
| A | B | |
| Code 0 - 222 Flat | 274.3 mm (10.8") | 257.8 mm (10.2") |
| Code 5 - 222 Fin | 315.0 mm (12.4") | 298.5 mm (11.8") |
| Code 6 - 226 Flat | 276.9 mm (10.9") | 265.4 mm (10.5") |
| Code 7 - 226 Fin | 316.5 mm (12.5") | 306.1 mm (12.1") |
| Materials of construction: | Membrane: | Hydrophilic PTFE |
| Supports, core, sleeve: | Polypropylene (PP) | |
| O-ring: | Encapsulated FKM (E-FKM), EPDM, FKM | |
| Retention rating: | 30 nm, 0.05 µm, 0.1 µm | |
| Cartridge connections: | Code 0 (222 Flat), Code 5 (222 Fin), Code 6 (226 Flat), Code 7 (226 Fin) | |
| Maximum operating conditions: | Maximum forward differential pressure: | 5.5 bar (80 psid) @ 25°C (77°F) |
| Maximum reverse differential pressure: | 3.4 bar (50 psid) @ 25°C (77°F) | |
| Maximum temperature: | 80°C (176°F) | |
| Dimensions: | Length: | 10" |
| Diameter: | 69 mm (2.7") |
Successfully Opted for software Updates
Part Numbers
| Part Number | Retention Rating | Length | Configuration | O-ring | Chemlock® Key | Packaging |
|---|---|---|---|---|---|---|
| PSPV010000D | 0.1 µm | 10" | Code 0 (222 Flat) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPV0100V0D | 0.1 µm | 10" | Code 0 (222 Flat) | FKM | None | Dry |
| PSPV010500D | 0.1 µm | 10" | Code 5 (222 Fin) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPV0105E0D | 0.1 µm | 10" | Code 5 (222 Fin) | EPR | None | Dry |
| PSPV0105V0D | 0.1 µm | 10" | Code 5 (222 Fin) | FKM | None | Dry |
| PSPV010600D | 0.1 µm | 10" | Code 6 (226 Flat) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPV0106E0D | 0.1 µm | 10" | Code 6 (226 Flat) | EPR | None | Dry |
| PSPV0106V0D | 0.1 µm | 10" | Code 6 (226 Flat) | FKM | None | Dry |
| PSPV010700D | 0.1 µm | 10" | Code 7 (226 Fin) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPV0107E0D | 0.1 µm | 10" | Code 7 (226 Fin) | EPR | None | Dry |
| PSPV0107V0D | 0.1 µm | 10" | Code 7 (226 Fin) | FKM | None | Dry |
| PSPY010000D | 30 nm | 10" | Code 0 (222 Flat) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPY0100E0D | 30 nm | 10" | Code 0 (222 Flat) | EPR | None | Dry |
| PSPY010500D | 30 nm | 10" | Code 5 (222 Fin) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPY0105E0D | 30 nm | 10" | Code 5 (222 Fin) | EPR | None | Dry |
| PSPY0105V0D | 30 nm | 10" | Code 5 (222 Fin) | FKM | None | Dry |
| PSPY010600D | 30 nm | 10" | Code 6 (226 Flat) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPY0106E0D | 30 nm | 10" | Code 6 (226 Flat) | EPR | None | Dry |
| PSPY0106V0D | 30 nm | 10" | Code 6 (226 Flat) | FKM | None | Dry |
| PSPY010700D | 30 nm | 10" | Code 7 (226 Fin) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPY0107E0D | 30 nm | 10" | Code 7 (226 Fin) | EPR | None | Dry |
| PSPY0107V0D | 30 nm | 10" | Code 7 (226 Fin) | FKM | None | Dry |
| PSPZ0100E0D | 0.05 µm | 10" | Code 0 (222 Flat) | EPR | None | Dry |
| PSPZ0100V0D | 0.05 µm | 10" | Code 0 (222 Flat) | FKM | None | Dry |
| PSPZ010500D | 0.05 µm | 10" | Code 5 (222 Fin) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPZ0105E0D | 0.05 µm | 10" | Code 5 (222 Fin) | EPR | None | Dry |
| PSPZ0105V0D | 0.05 µm | 10" | Code 5 (222 Fin) | FKM | None | Dry |
| PSPZ010600D | 0.05 µm | 10" | Code 6 (226 Flat) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPZ0106E0D | 0.05 µm | 10" | Code 6 (226 Flat) | EPR | None | Dry |
| PSPZ0106V0D | 0.05 µm | 10" | Code 6 (226 Flat) | FKM | None | Dry |
| PSPZ010700D | 0.05 µm | 10" | Code 7 (226 Fin) | Encapsulated FKM (E-FKM) | None | Dry |
| PSPZ0107E0D | 0.05 µm | 10" | Code 7 (226 Fin) | EPR | None | Dry |
| PSPZ0107V0D | 0.05 µm | 10" | Code 7 (226 Fin) | FKM | None | Dry |
