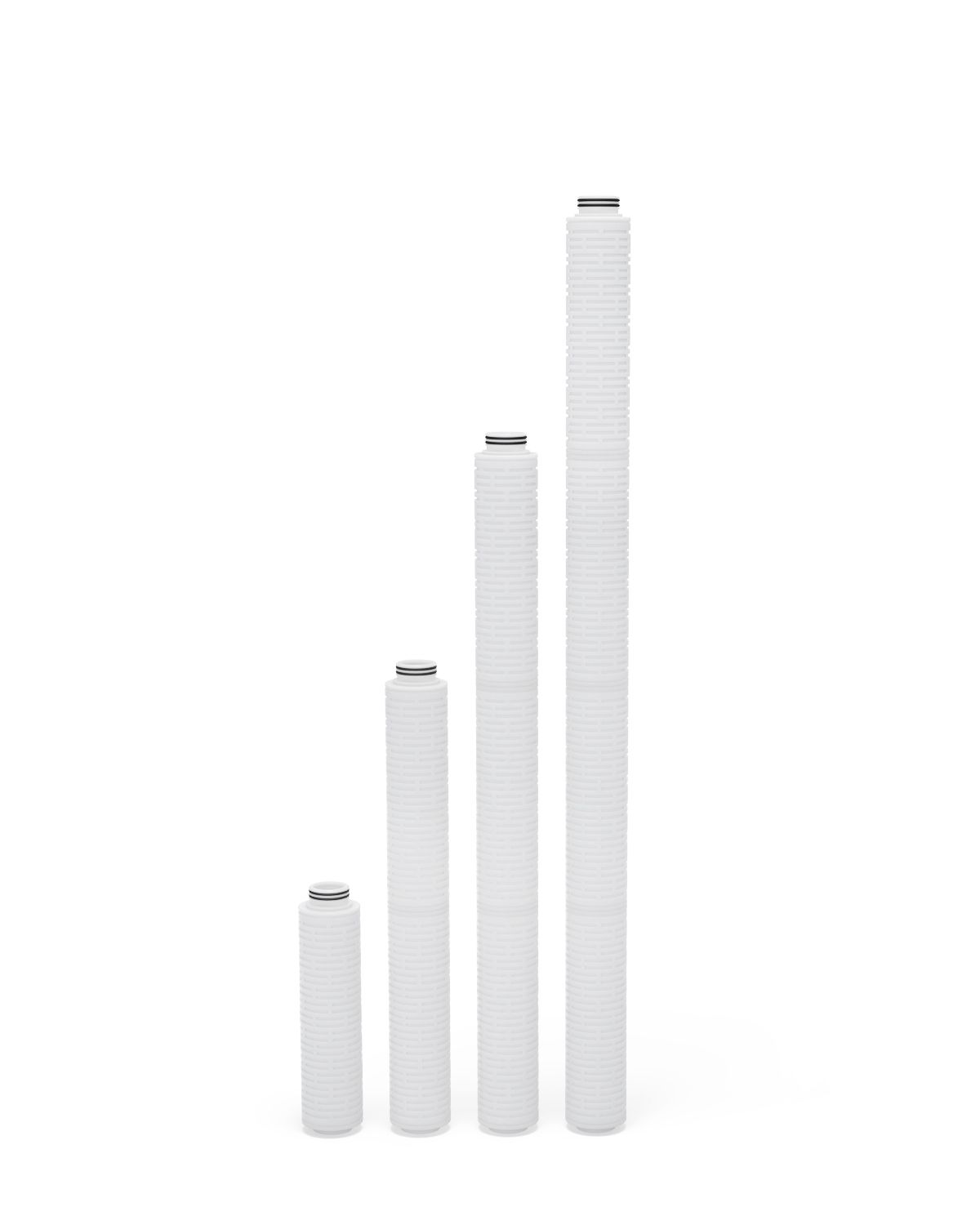

Trinzik™ UPW T015 Ultrapure Water Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
Designed for ultrapure and DI water filtration in bulk facilities and point-of-tool applications within the semiconductor, hard disk drive manufacturing, flat panel display (LCD, LED, OLED, AMOLED, plasma) and solar/photovoltaic industries including:
- Make-up loops
- Polish loops
- UPW final filtration/UF alternative
- Resin trap and general process tool water
- Low cost of ownership alternative to ultrafiltration (UF)
- Advanced UF guard filters
Specifications
Code 0 - 222 Flat |
Code 5 - 222 Fin |
||||
| Dimensions | Dimensions | ||||
| Length | A | B | Length | A | B |
| 10" | 276.1 mm (10.9") | 257.8 mm (10.2") | 10" | 315.0 mm (12.4") | 298.5 mm (11.8") |
| 20" | 522.5 mm (20.6") | 504.2 mm (19.9") | 20" | 561.3 mm (22.1") | 544.8 mm (21.5") |
| 30" | 766.3 mm (30.2") | 748.0 mm (29.5") | 30" | 805.2 mm (31.7") | 788.7 mm (31.1") |
| 40" | 1012.8 mm (39.9") | 994.4 mm (39.2") | 40" | 1051.6 mm (41.4") | 1035.0 mm (40.8") |
| Materials of construction | Membrane | Surface modified, hydrophilic PTFE |
| Supports, core, sleeve | HDPE | |
| O-ring | E-FKM, E-ETP, EPR, E-SIL, FKM, Kalrez® (4079UP), Kalrez (6375UP) | |
| Retention rating | Sub-10 nm | |
| Cartridge connections | Code 0 (222 Flat), Code 5 (222 Fin) | |
| Maximum operating conditions | Maximum forward differential pressure | 5.5 bar (80 psid) @ 25°C (77°F) 1.7 bar (25 psid) @ 80°C (176°F) |
| Maximum reverse differential pressure | 3.4 bar (50 psid) @ 25°C (77°F) | |
| Maximum temperature | 60°C (140°F) | |
| Dimensions | Length | 10", 20", 30", 40" |
| Diameter | 69 mm (2.7") |
