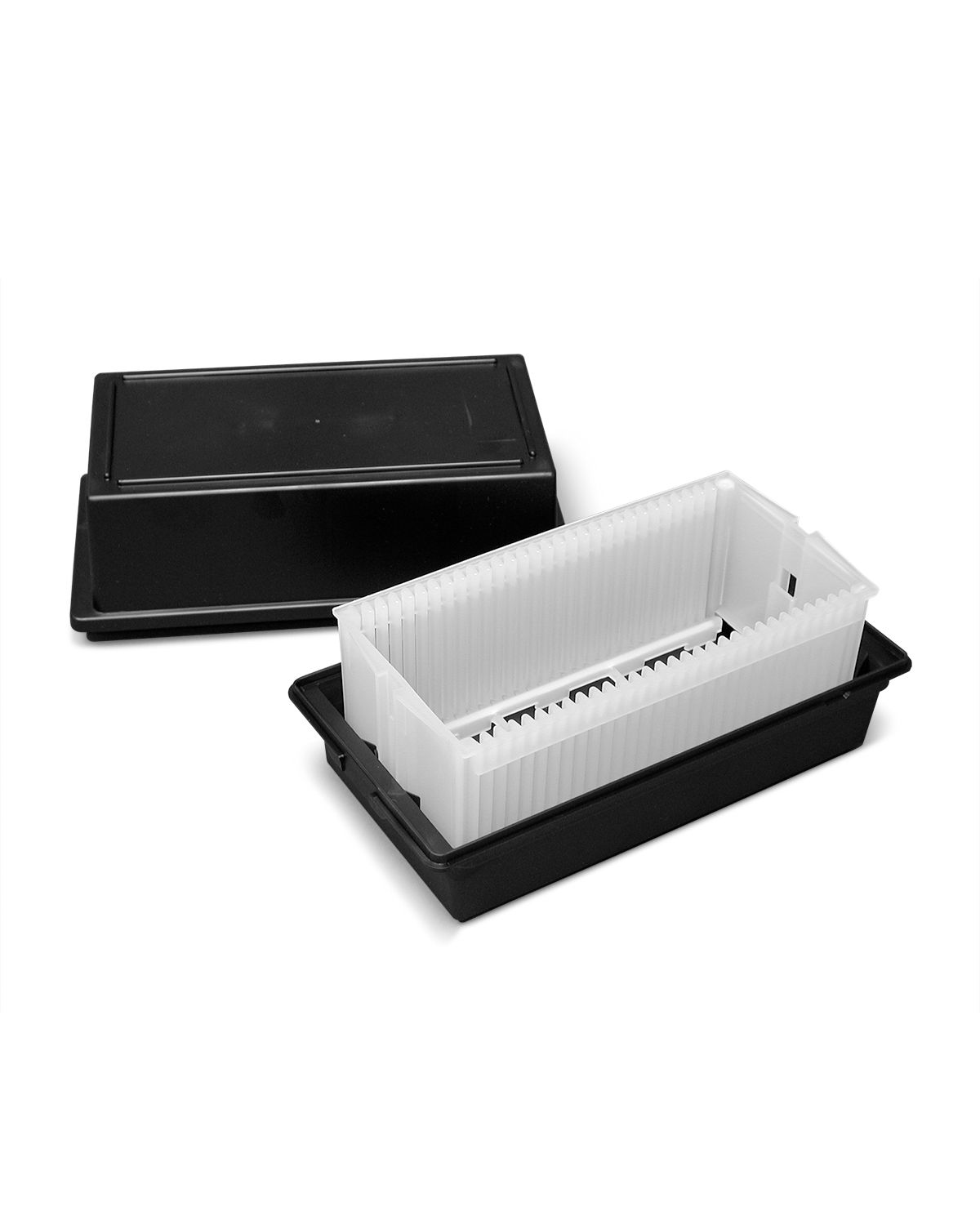

E Series Shipping boxes
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Raw wafer processing and shipping
- Wafer processing
- Finished wfer shipping and handling
Part Numbers
| Part Number | Carrier Material | Pocket Flat | Mask Size | Box Material | Carrier Overall Size | Pocket Spacing | Capacity |
|---|---|---|---|---|---|---|---|
| A51-0100 | HDPE | 2.5 mm (0.10") | 51 mm sq. (2.0" sq.) | N/A | 222 mm x 59 mm x 51 mm (8.8" x 2.3" x 2.0") | 6.7 mm (0.26") | 30 |
| A51-0200 | HDPE | 2.5 mm (0.10") | 64 mm sq. (2.5" sq.) | N/A | 215 mm x 71 mm x 66 mm (8.5" x 2.81" x 2.62") | 6.6 mm (0.26") | 30 |
| A51-0202 | Polypropylene | 2.5 mm (0.10") | 64 mm sq. (2.5" sq.) | N/A | 221 mm x 71 mm x 67 mm (8.8" x 2.8" x 2.6") | 6.7 mm (0.26") | 30 |
| A51-0500 | HDPE | 2.5 mm (0.10") | 76 mm sq. (3.0" sq.) | N/A | 222 mm x 84 mm x 73 mm (8.8" x 3.3" x 2.9") | 6.7 mm (0.26") | 30 |
| A51-0502 | Polypropylene | 2.5 mm (0.10") | 76 mm sq. (3.0" sq.) | N/A | 222 mm x 84 mm x 73 mm (8.8" x 3.3" x 2.9") | 6.7 mm (0.26") | 30 |
| A51-0900 | HDPE | 2.5 mm (0.10") | 102 mm sq. (4.0" sq.) | N/A | 225 mm x 113 mm x 89 mm (8.9" x 4.5" x 3.5") | 6.7 mm (0.26") | 30 |
| A51-0901 | Polypropylene | 2.5 mm (0.10") | 102 mm sq. (4.0" sq.) | N/A | 225 mm x 113 mm x 89 mm (8.9" x 4.5" x 3.5") | 6.7 mm (0.26") | 30 |
| A91-0102 | Polypropylene | 3.2 mm (0.13") | 127 mm sq. (5.0" sq.) | N/A | 174 mm x 149 mm x 101 mm (6.8" x 5.9" x 4.0") | 6.3 mm (0.25") | 20 |
| A91-0400 | HDPE | 3.2 mm (0.13") | 127 mm sq. (5.0" sq.) | N/A | 174 mm x 149 mm x 101 mm (6.8" x 5.9" x 4.0") | 6.3 mm (0.25") | 20 |
| A91-0402 | Polypropylene | 3.8 mm (0.15") | 127 mm sq. (5.0" sq.) | N/A | 174 mm x 149 mm x 101 mm (6.8" x 5.9" x 4.0") | 6.3 mm (0.25") | 20 |
| A91-0700 | HDPE | 2.5 mm (0.10") | 152 mm sq. (6.0" sq.) | N/A | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.3 mm (0.25") | 20 |
| A91-0702 | Polypropylene | 2.5 mm (0.10") | 152 mm sq. (6.0" sq.) | N/A | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.7 mm (0.26") | 20 |
| A91-0800 | HDPE | 3.8 mm (0.15") | 152 mm sq. (6.0" sq.) | N/A | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.3 mm (0.25") | 20 |
| A91-0802 | Polypropylene | 3.8 mm (0.15") | 152 mm sq. (6.0" sq.) | N/A | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.3 mm (0.25") | 20 |
| E01-0001 | Polypropylene | 2.5 mm (0.10") | 76 mm sq. (3.0" sq.) | Polystyrene | 222 mm x 84 mm x 73 mm (8.8" x 3.3" x 2.9") | 6.7 mm (0.26") | 30 |
| E01-0003 | HDPE | 2.5 mm (0.10") | 76 mm sq. (3.0" sq.) | Polystyrene | 222 mm x 84 mm x 73 mm (8.8" x 3.3" x 2.9") | 6.7 mm (0.26") | 30 |
| E01-0101 | — | N/A | 76 mm sq. (3.0" sq.) | Polystyrene | — | N/A | 1 |
| E05-0001 | Polypropylene | 2.5 mm (0.10") | 64 mm sq. (2.5" sq.) | Polystyrene | 221 mm x 71 mm x 67 mm (8.8" x 2.8" x 2.6") | 6.7 mm (0.26") | 30 |
| E05-0002 | HDPE | 2.5 mm (0.10") | 51 mm sq. (2.0" sq.) | Polystyrene | 222 mm x 59 mm x 51 mm (8.8" x 2.3" x 2.0") | 6.7 mm (0.26") | 30 |
| E05-0102 | N/A | N/A | 64 mm sq. (2.5" sq.) | Polystyrene | — | N/A | 1 |
| E09-0002 | HDPE | 2.5 mm (0.10") | 102 mm sq. (4.0" sq.) | Polystyrene | 225 mm x 113 mm x 89 mm (8.9" x 4.5" x 3.5") | 6.7 mm (0.26") | 30 |
| E09-0003 | Polypropylene | 2.5 mm (0.10") | 102 mm sq. (4.0" sq.) | Polystyrene | 225 mm x 113 mm x 89 mm (8.9" x 4.5" x 3.5") | 6.7 mm (0.26") | 30 |
| E09-0101 | N/A | N/A | 102 mm sq. (4.0" sq.) | Polystyrene | — | N/A | 1 |
| E55-0001 | Polypropylene | 3.8 mm (0.15") | 127 mm sq. (5.0" sq.) | Polystyrene | 174 mm x 149 mm x 101 mm (6.8" x 5.9" x 4.0") | 6.3 mm (0.25") | 20 |
| E55-0003 | HDPE | 3.2 mm (0.13") | 127 mm sq. (5.0" sq.) | Polystyrene | 174 mm x 149 mm x 101 mm (6.8" x 5.9" x 4.0") | 6.3 mm (0.25") | 20 |
| E55-0200 | N/A | N/A | 127 mm sq. (5.0" sq.) | Polystyrene | — | N/A | 1 |
| E56-0002 | Polypropylene | 2.5 mm (0.10") | 152 mm sq. (6.0" sq.) | Polystyrene | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.3 mm (0.25") | 20 |
| E56-0004 | HDPE | 2.5 mm (0.10") | 152 mm sq. (6.0" sq.) | Polystyrene | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.3 mm (0.25") | 20 |
| E56-0005 | HDPE | 3.8 mm (0.15") | 152 mm sq. (6.0" sq.) | Polystyrene | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.3 mm (0.25") | 20 |
| E56-0006 | Polypropylene | 3.8 mm (0.15") | 152 mm sq. (6.0" sq.) | Polystyrene | 174 mm x 175 mm x 123 mm (6.8" x 6 .9" x 4.8") | 6.3 mm (0.25") | 20 |
| E94-25-101-1403 | N/A | N/A | 64 mm sq. (2.5" sq.) | Blue ABS | 196 mm x 119 mm x 86 mm (7.7" x 4.7" x 3.4") | N/A | 1 |
| E94-30-101-1403 | N/A | N/A | 76 mm sq. (3.0" sq.) | Blue ABS | 196 mm x 145 mm x 112 mm (7.7" x 5.7" x 4.4") | N/A | 1 |
| E94-40-101-1403 | N/A | N/A | 102 mm sq. (4.0" sq.) | Blue ABS | 196 mm x 145 mm x 124 mm (7.7" x 5.7" x 4.9") | N/A | 1 |
| E94-45-101-1403 | N/A | N/A | 114 mm sq. (4.5" sq.) | Blue ABS | 196 mm x 173 mm x 155 mm (7.7" x 6.8" x 6.1") | N/A | 1 |
| E94-50-101-1403 | N/A | N/A | 127 mm sq. (5.0" sq.) | Blue ABS | 196 mm x 173 mm x 155 mm (7.7" x 6.8" x 6.1") | N/A | 1 |
| E94-60-101-1403 | N/A | N/A | 152 mm sq. (6.0" sq.) | Blue ABS | 208 mm x 211 mm x 180 mm (8.2" x 8.3" x 7.1") | N/A | 1 |
| E94-70-101-1403 | N/A | N/A | 178 mm sq. (7.0" sq.) | Blue ABS | 208 mm x 234 mm x 206 mm (8.2" x 9.2" x 8.1") | N/A | 1 |
