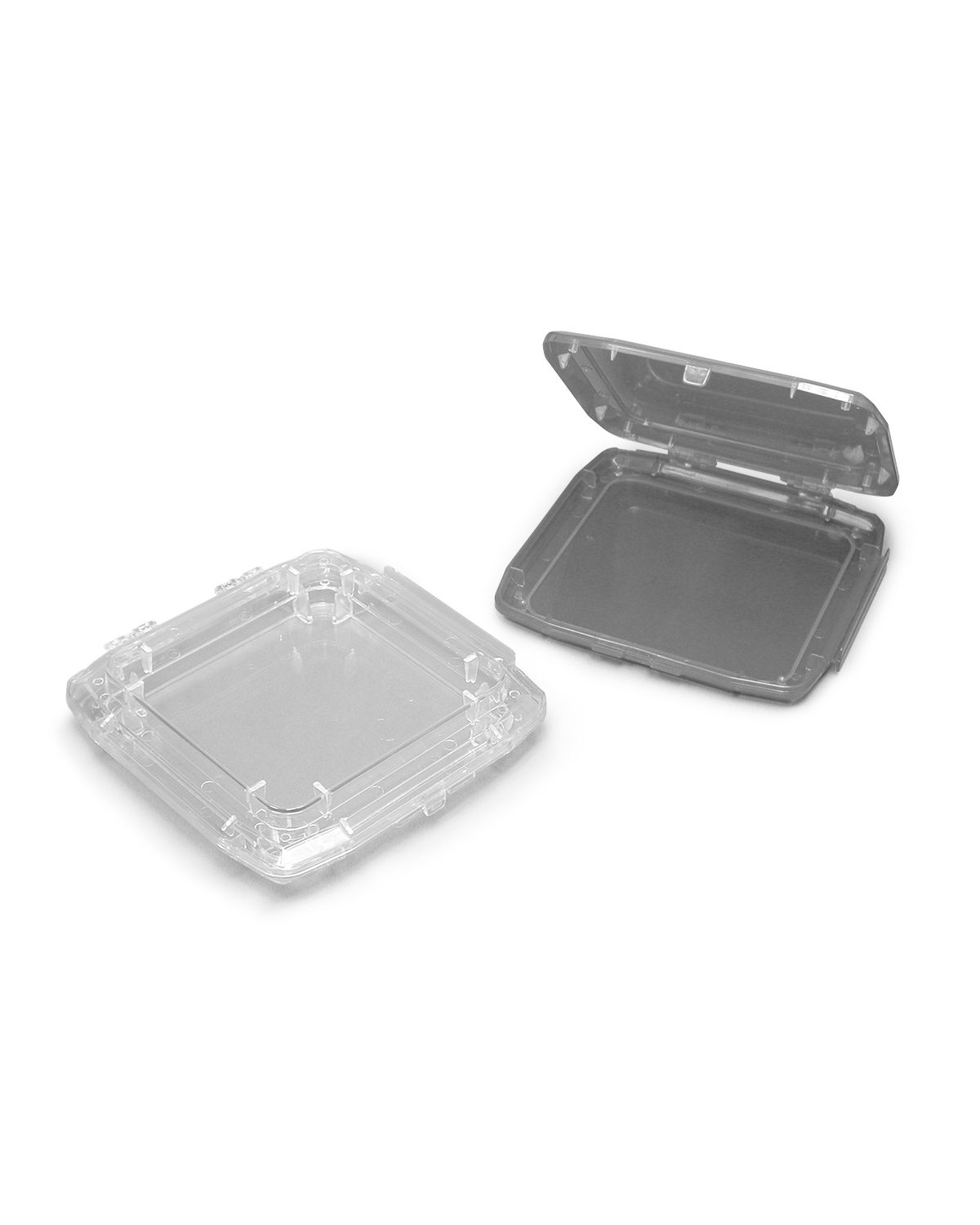

B80 Series Mask Packages
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Mask Handling
- Reticle with Pellicle Handling
Part Numbers
| Part Number | Mask Size | Box Material | Carrier Overall Size | Pellicle | Mask Thickness | |
|---|---|---|---|---|---|---|
| B7950-0100 | 127 mm sq. (5" sq.) | — | 137 mm x 143 mm x 15 mm (5.4" x 5.6" x 0.6") | — | 2.3 mm (0.09") | |
| B8030-0200 | 76 mm sq. (3" sq.) | Clear Polycarbonate | 135 mm x 127 mm x 20 mm (5.3" x 5.0" x 0.8") | No | 1.5 mm sq. (0.06") | |
| B8030-0211 | 76 mm sq. (3" sq.) | Amber antistatic ABS | 135 mm x 127 mm x 20 mm (5.3" x 5.0" x 0.8") | — | 1.5 mm sq. (0.06") | |
| B8035-0200 | 76 mm x 127 mm (3" x 5") | Clear Polycarbonate | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 1.5 mm sq. (0.06") | |
| B8035-0203 | 76 mm x 127 mm (3" x 5") | Black polycarbonate | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 2.3 mm (0.09") | |
| B8035-0211 | 76 mm x 127 mm (3" x 5") | Amber antistatic ABS | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 1.5 mm sq. (0.06") | |
| B8040-0400 | 102 mm sq. (4" sq.) | Clear Polycarbonate | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 1.5 mm sq. (0.06") | |
| B8040-0411 | 102 mm sq. (4" sq.) | Amber antistatic ABS | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 1.5 mm sq. (0.06") | |
| B8040-0500 | 102 mm sq. (4" sq.) | Clear Polycarbonate | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 2.3 mm (0.09") | |
| B8040-0511 | 102 mm sq. (4" sq.) | Amber antistatic ABS | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 2.3 mm (0.09") | |
| B8040-0711 | 102 mm sq. (4" sq.) | Amber antistatic ABS | 160 mm x 157 mm x 38 mm (6.3" x 6.2" x 1.5') | Bottom | No | 2.3 mm (0.09") |
| B8040-0811 | 102 mm sq. (4" sq.) | Amber antistatic ABS | 160 mm x 157 mm x 38 mm (6.3" x 6.2" x 1.5') | Bottom | 1.5 mm sq. (0.06") | |
| B8050-0600 | 127 mm sq. (5" sq.) | Clear Polycarbonate | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 2.3 mm (0.09") | |
| B8050-0611 | 127 mm sq. (5" sq.) | Amber antistatic ABS | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 2.3 mm (0.09") | |
| B8050-1611 | 127 mm sq. (5" sq.) | Amber antistatic ABS | 160 mm x 157 mm x 20 mm (6.3" x 6.2" x 0.8") | No | 2.3 mm (0.09") | |
| B8060-0600 | 152 mm sq. (6" sq.) | Clear Polycarbonate | 185 mm x 180 mm x 23 mm (7.3" x 7.1" x 0.9") | No | 2.3 mm (0.09") | |
| B8060-0611 | 152 mm sq. (6" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 23 mm (7.3" x 7.1" x 0.9") | No | 2.3 mm (0.09") | |
| B8060-0700 | 152 mm sq. (6" sq.) | Clear Polycarbonate | 185 mm x 180 mm x 23 mm (7.3" x 7.1" x 0.9") | No | 3.1 mm (0.12") | |
| B8060-0703 | 152 mm sq. (6" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 23 mm (7.3" x 7.1" x 0.9") | No | 3.1 mm (0.12") | |
| B8060-0911 | 152 mm sq. (6" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 23 mm (7.3" x 7.1" x 0.9") | No | 2.3 mm (0.09") | |
| B8060-1100 | 152 mm sq. (6" sq.) | Clear Polycarbonate | 185 mm x 180 mm x 23 mm (7.3" x 7.1" x 0.9") | No | 6.4 mm (0.25") | |
| B8060-1111 | 152 mm sq. (6" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 23 mm (7.3" x 7.1" x 0.9") | No | 6.4 mm (0.25") | |
| B8060-2011 | 152 mm sq. (6" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 41 mm (7.3" x 7.1" x 1.6") | Bottom | 2.3 mm (0.09") | |
| B8060-2200 | 152 mm sq. (6" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 41 mm (7.3" x 7.1" x 1.6") | Bottom | 6.4 mm (0.25") | |
| B8060-2211 | 152 mm sq. (6" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 41 mm (7.3" x 7.1" x 1.6") | Top | 6.4 mm (0.25") | |
| B8060-2411 | 127 mm sq. (5" sq.) | Amber antistatic ABS | 185 mm x 180 mm x 41 mm (7.3" x 7.1" x 1.6") | No | 2.3 mm (0.09") | |
| B8070-0100 | 178 mm sq. (7" sq.) | Clear Polycarbonate | 234 mm x 246 mm x 25 mm (9.2" x 9.7" x 1.0") | No | 3.8 mm (0.15") | |
| B8070-0111 | 178 mm sq. (7" sq.) | Amber antistatic ABS | 234 mm x 246 mm x 25 mm (9.2" x 9.7" x 1.0") | No | 3.8 mm (0.15") | |
| B8070-0201 | 178 mm sq. (7" sq.) | Clear Polycarbonate | 234 mm x 246 mm x 25 mm (9.2" x 9.7" x 1.0") | No | 6.4 mm (0.25") | |
| B8070-0311 | 178 mm sq. (7" sq.) | Amber antistatic ABS | 234 mm x 246 mm x 25 mm (9.2" x 9.7" x 1.0") | No | 3.1 mm (0.12") | |
| B8080-0100 | 203 mm sq. (8" sq.) | Clear Polycarbonate | 234 mm x 246 mm x 25 mm (9.2" x 9.7" x 1.0") | No | 2.3 mm (0.09") | |
| B8080-0200 | 203 mm sq. (8" sq.) | Clear Polycarbonate | 234 mm x 246 mm x 25 mm (9.2" x 9.7" x 1.0") | No | 3.1 mm (0.12") |
