Trays and Accessories
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Wafer processing
- Wafer handling
Specifications
| Part Number | Pocket Size | Overall Size |
| D34-01-0215 | 20 mm sq x 10 mm (0.8" x 0.4") | 170 mm x 127 mm x 18 mm (6.7" x 5.0" x 0.7") |

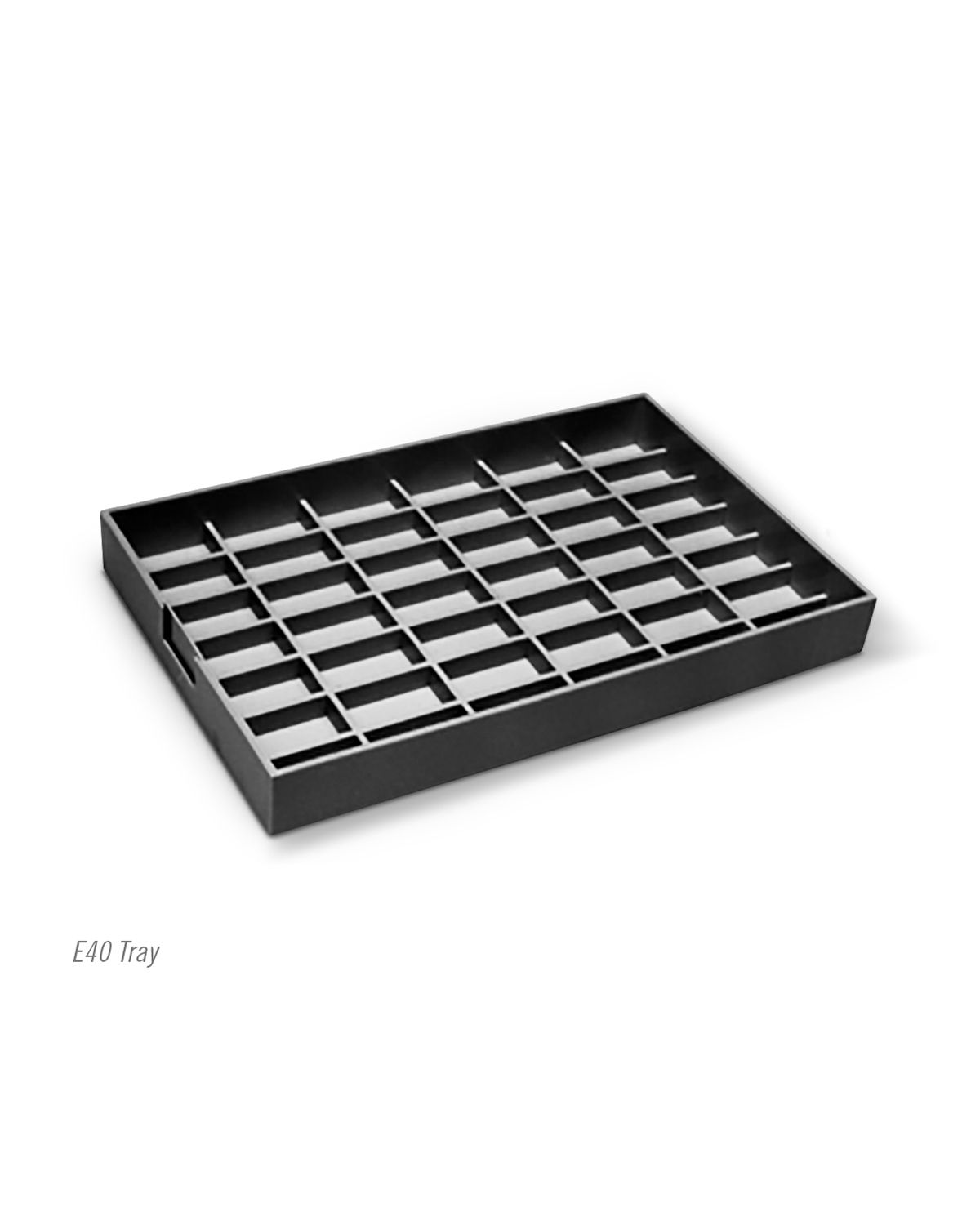

| E40-0603 | 25 mm x 46 mm x 13 mm (1.0" x 1.8" x 0.5") | 310 mm x 203 mm x 38 mm (12.2" x 8.0" x 1.5") |
| E40-12-* | 64 mm x 71 mm x 12 mm (2.5" x 2.8" x 1.5") | 310 mm x 203 mm x 38 mm (12.2" x 8.0" x 1.5") |
| H35-01-0603 | Ø 76.2 mm (3") | 340 mm x 249 mm x 15 mm (13.4" x 9.8" x 0.6") |
*Pocket and overall sizes are the same regardless of material.
Successfully Opted for software Updates
Part Numbers
| Part Number | Product Type | Materials | Pockets |
|---|---|---|---|
| D34-01-0215 | Wash tray | Natural PFA | 34 |
| D34-02-0215 | Cover | Natural PFA | N/A |
| E40-0603 | Tray | Blue polypropylene | 42 |
| E40-12-0603 | Tray | Blue polypropylene | 12 |
| E40-12-61C02 | Tray | STAT-PRO® 1000 PFA | 12 |
| H35-01-0603 | Wafer handling tray | Blue polypropylene | 10 |
