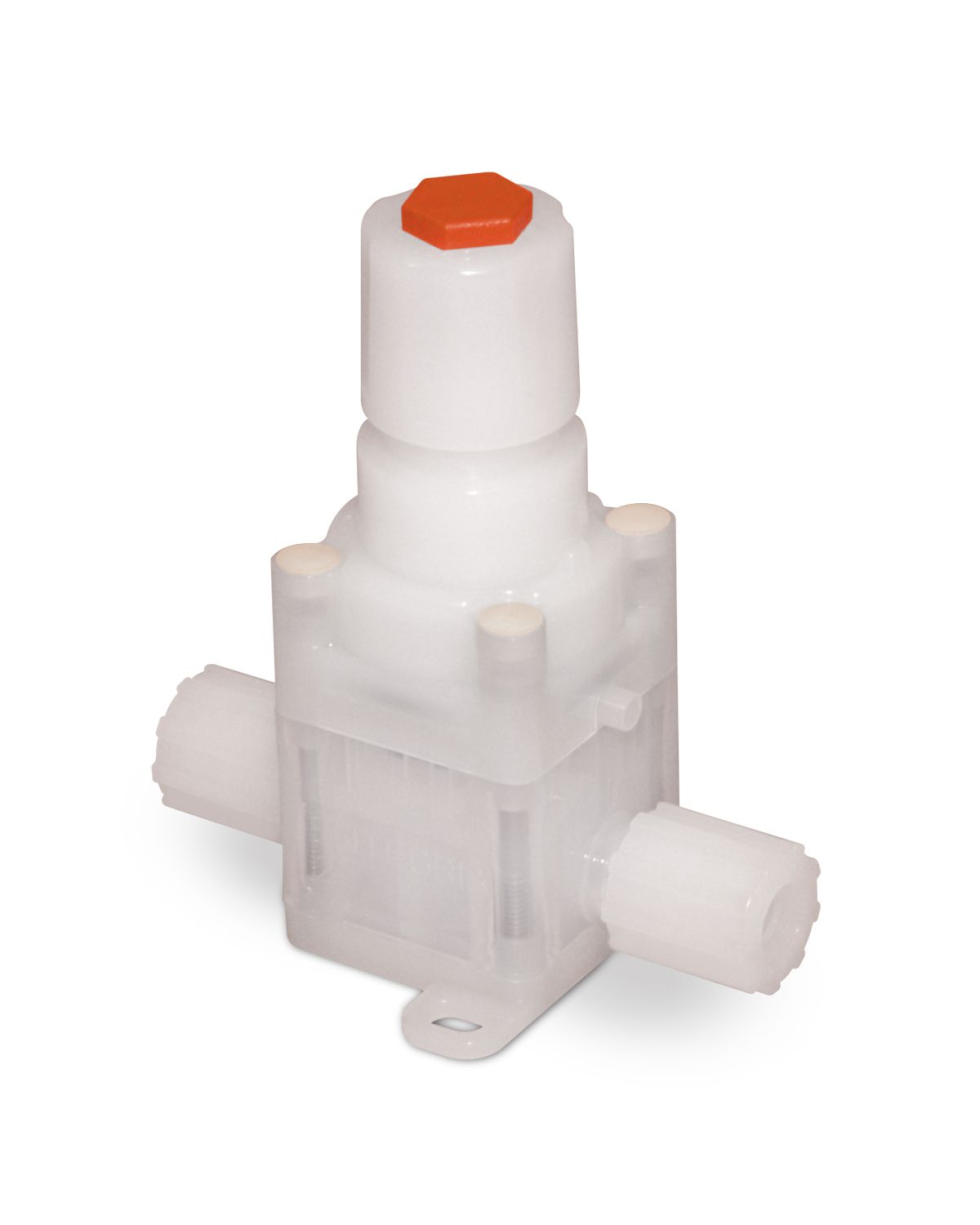

CR8 Series Manual Valves, 1/2" Orifice, 2-way, Multi-turn
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Notes:
- Not all configurations are permitted. Contact Entegris if multiple special order features are required.
- Contact Entegris if “SpaceSaver” port connections are to be used in media containing a fluorinated surfactant.
- Pillar® nuts, inserts and gauge rings included as standard.
Top of page
Reference Materials
Accessories
Part Numbers
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- High-purity, corrosive chemical handling
- Wet etch and clean (WEC) process chemicals
- Low volume bulk chemical delivery applications
- Chemical line sizes in 1/4" and 1/2" pipe, 1/2" and 3/4" tube
Specifications
| Port Connection | Flow Factor CV | Flow Factor KV | A | B | C |
| 1/4" PureBond® | 1.8 | 25.7 | 4.76" (120.9 mm) | 0.69" (17.5 mm) | 5.35" (135.9 mm) |
| 1/2" Flaretek® | 2.4 | 34.3 | 4.35" (110.5 mm) | 0.69" (17.5 mm) | 5.35" (135.9 mm) |
| 1/2" Super 300 Type Pillar® fitting | 2.4 | 34.3 | 4.06" (103.1 mm) | 0.69" (17.5 mm) | 5.35" (135.9 mm) |
| 1/2" PrimeLock® | 2.4 | 34.3 | 4.22" (107.2 mm) | 0.69" (17.5 mm) | 5.35" (135.9 mm) |
| 1/2" PureBond® | 3.2 | 45.7 | 4.76" (120.9 mm) | 0.94" (23.9 mm) | 5.60" (142.2 mm) |
| 3/4" Flaretek® | 3.4 | 48.6 | 4.59" (116.6 mm) | 0.94" (23.9 mm) | 5.60" (142.2 mm) |
| 3/4" Super 300 Type Pillar® fitting | 3.4 | 48.6 | 4.44" (112.8 mm) | 0.94" (23.9 mm) | 5.60" (142.2 mm) |
| 3/4" PrimeLock® | 3.4 | 48.6 | 4.76" (121.0 mm) | 0.94" (23.9 mm) | 5.60" (142.2 mm) |
| Materials: | All wetted parts | PFA, PTFE | ||
| Exterior actuator parts | PVDF, Viton® | |||
| Interior actuator parts | PVDF, SST, Viton | |||
| Mounting base | PVDF | |||
| Operating conditions: | Media pressure at | 21°C (70°F) | Inlet /outlet | 913 mbar (27” Hg) vacuum to 552 kPa (80 psig)1 |
| 130°C (266°F) | Inlet /outlet | 414 kPa (60 psig)1 | ||
| Temperature range | Ambient | 21°– 50°C (70°–122°F) | ||
| Fluid | 21°–130°C (70°– 266°F)1 | |||
| Environmental compliance: | RoHs, WEEE | |||
