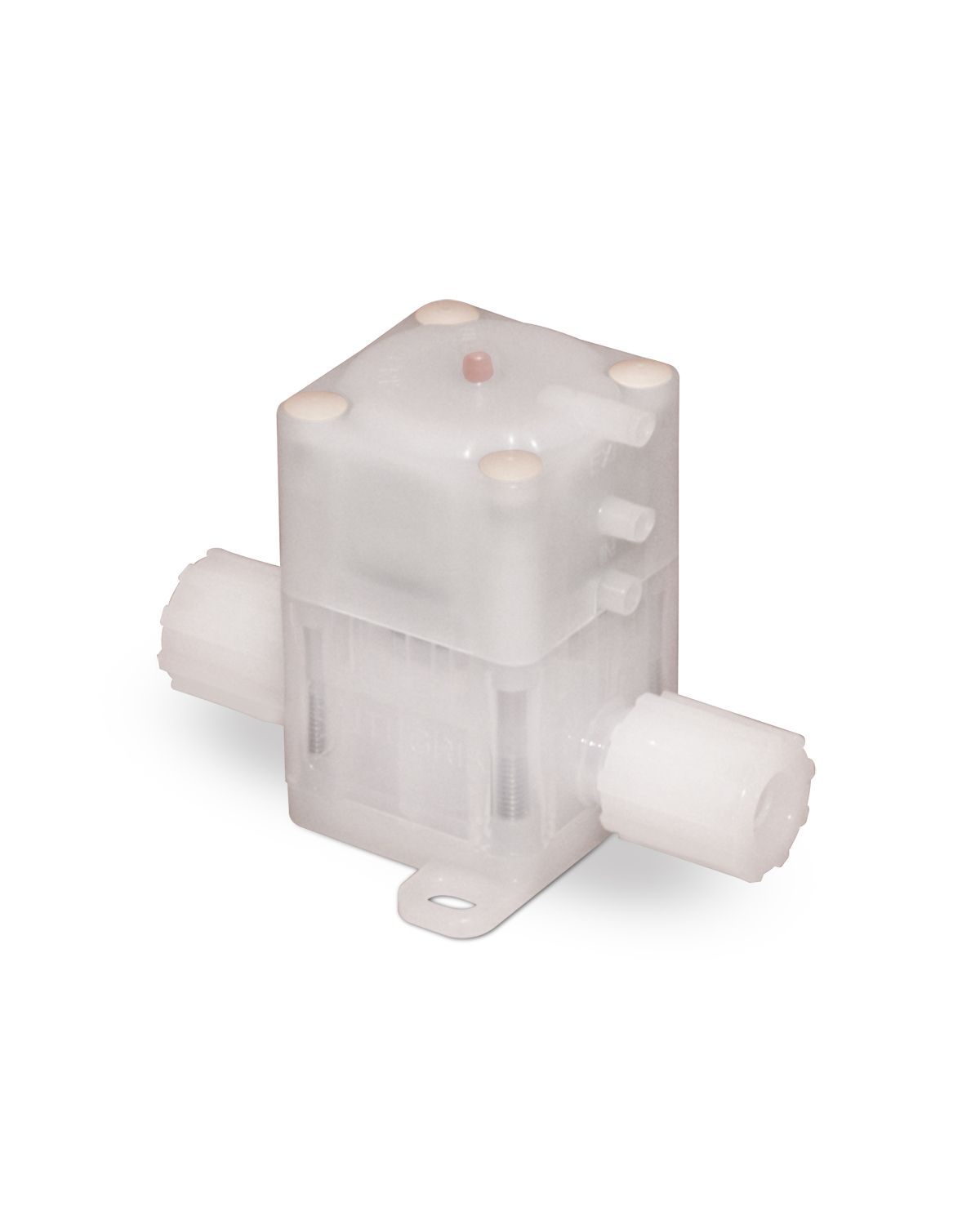

CR8 Series Pneumatic Valves, 1/2" Orifice, 2-way, Normally Closed Luer
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Notes:
- Not all configurations are permitted. Contact Entegris if multiple special order features are required.
- Contact Entegris if “SpaceSaver” port connections are to be used in media containing a fluorinated surfactant.
- Pillar® nuts, inserts and gauge rings included as standard.
- High-purity, corrosive chemical handling
- Wet etch and clean (WEC) process chemicals
- Low volume bulk chemical delivery applications
- Chemical line sizes in 1/4" and 1/2" pipe, 1/2" and 3/4" tube
Specifications
| Port Connection | Flow Factor CV | Flow Factor KV | A | B | C |
| 1/4" PureBond | 1.8 | 25.7 | 4.76" (120.9 mm)1 | 0.69" (17.5 mm) | 3.47" (88.1 mm) |
| 1/2" Flaretek | 2.4 | 34.3 | 4.35" (110.5 mm) | 0.69" (17.5 mm) | 3.47" (88.1 mm) |
| 1/2" Super 300 Type Pillar fitting | 2.4 | 34.3 | 4.06" (103.1 mm) | 0.69" (17.5 mm) | 3.47" (88.1 mm) |
| 1/2" PrimeLock | 2.4 | 34.3 | 4.22" (107.2 mm) | 0.69" (17.5 mm) | 3.47" (88.1 mm) |
| 1/2" PureBond | 3.2 | 45.7 | 4.76" (120.9 mm)1 | 0.94" (23.9 mm) | 3.72" (94.5 mm) |
| 3/4" Flaretek | 3.4 | 48.6 | 4.59" (116.6 mm) | 0.94" (23.9 mm) | 3.72" (94.5 mm) |
| 3/4" Super 300 Type Pillar fitting | 3.4 | 48.6 | 4.44" (112.8 mm) | 0.94" (23.9 mm) | 3.72" (94.5 mm) |
| 3/4" PrimeLock | 3.4 | 48.6 | 4.76" (120.9 mm) | 0.94" (23.9 mm) | 3.72" (94.5 mm) |
1For CR8 valves with tube pilot port configurations and PureBond weld lengths less than standard, we recommend rotated pilot port options P2 and P4.
Sensing Option Dimensional Information (shown in 5th drawing above)
A Remote Position Indication option is available to monitor valve open and closed positions electronically.
Note: To enable the remote position indication option you must special order the Omron® sensor (-OM) on the valve. In addition, order Omron® position sensor indicator (EE-SX771R or EE-SX771A), which are sold separately.
Restricted Open or Restricted Closed (shown in 6th drawing above)
Note: Height dimension includes stem in open position
- Restricted open option allows for a manual variable limit control on the open travel of a pneumatically controlled valve
- Restricted closed option allows for a manual variable limit control on the closed travel of a pneumatically controlled valve
- Both options are offered in normally closed and normally open pneumatic actuators
| Materials: | All wetted parts | PFA, PTFE | ||
| Exterior actuator parts | PVDF, Viton® | |||
| Interior actuator parts | PVDF, SST, Viton® | |||
| Mounting base | PVDF | |||
| Operating conditions: | Media pressure at | 21°C (70°F) | Inlet /outlet | 913 mbar (27” Hg) vacuum to 552 kPa (80 PSIG)2 |
| 130°C (266°F) | Inlet /outlet | 414 kPa (60 PSIG)2 | ||
| Actuation pressure | 414 – 552 kPa (60 – 80 PSIG) | |||
| Temperature range | Ambient | 21°– 50°C (70°–122°F) | ||
| Fluid | 21°–130°C (70°– 266°F)2 | |||
| Pneumatic supply port: | 1/4" molded female Luer lug style | |||
| Environmental compliance: | RoHs, WEEE | |||
2Actual valve performance varies with pressure and temperature; refer to actual ratings in performance data.
Successfully Opted for software Updates
-
CR8-2CL-RKIT
Repair kit for 1/2" 2-way CR8 Series pneumatic, normally closed, Luer valves
—
