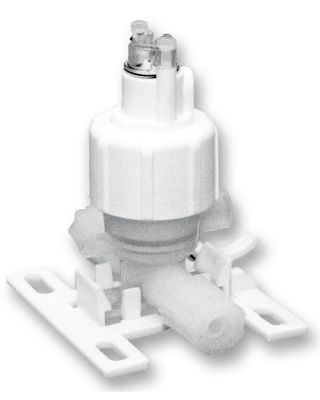

Integra® 2-way Valve Mounting Bases
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
Enables easy and quick valve installation or equipment preventive maintenance, without the use of tools.
Specifications
| Part Number | Description | Dimension A (with trigger release fully depressed) | Dimension B (not depressed) |
| I4-MB-01* | For use with 1/4" 2-way Integra valves except those with 1/4" Flaretek or 1/4" Flaretek “SpaceSaver” port connections. | 3.33" (84.6 mm) | 0.98" (24.9 mm) |
| I8-MB-01 | For use with 1/2" 2-way Integra valves except those with 1/2" Flaretek or 1/2" Flaretek “SpaceSaver” port connections. | 3.51" (89.2 mm) | 1.00" (25.4 mm) |
| I8-MB-02 | For use with 1/2" 2-way Integra valves with 1/2" Flaretek and 1/2" Flaretek “SpaceSaver” port connections. | 3.51" (89.2 mm) | 1.00" (25.4 mm) |
*Not for use with 1/4" valves with 1/4" Flaretek port connections
Successfully Opted for software Updates
Part Numbers
| Part Number | Valve Type | Port Connection |
|---|---|---|
| I4-MB-01 | Integra® valves, 1/4" orifice, 2-way | All except 1/4" Flaretek® |
| I8-MB-01 | Integra® valves, 1/2" orifice, 2-way | All ports except 1/2" Flaretek® or 1/2" Flaretek® "SpaceSaver" |
| I8-MB-02 | Integra® valves, 1/2" orifice, 2-way | For 1/2" Flaretek® or 1/2" Flaretek® "SpaceSaver" |
