Sentry® QCII Quick Connect Systems
Contact your Entegris account manager or
For help selecting the Sentry QCII quick connection system for your application, please reference the Ordering Guide that is included in the Reference Material section at the bottom of this page.
CAD - You have the ability to access 3D and 2D product data that is compatible with today's CAD modeling packages. To decrease system design time, simply download parts directly into your design.
Our patented quick connect system is key coded to ensure against unsafe chemical mixing while guaranteeing dedicated clean service. One connection provides dispensing, venting and level detection in applications including:
- High-purity, corrosive chemical handling
- Ideal for high flow chemical distribution applications
Specifications
Notes:
- We do not stock key coded drum inserts due to the large quantity of key code options
- Drum inserts are key coded per customer order
- Drum inserts will not be accepted for return if the incorrect key code was specified on the order

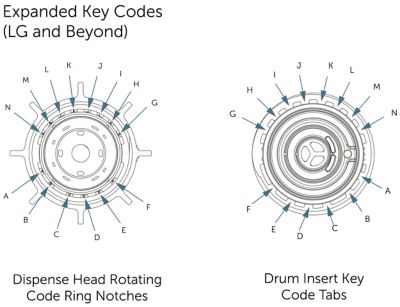

Key Codes
Our patented quick connect system is key coded to ensure against unsafe chemical mixing while guaranteeing dedicated clean service. One connection provides dispensing, venting and level detection.
| Materials of construction | Dispense head | Wetted parts include PFA, FEP, PTFE and Kalrez® 4079 materials |
| Nonwetted parts are PFA, PVDF and polyethylene | ||
| Drum insert | Wetted parts are PFA and/or polyethylene with FEP encapsulated O-rings | |
| Torque | Drum insert, PFA | 20 ft•lbs (27.1 N•m) |
| Drum insert, PE | 15 ft•lbs (20.3 N•m) | |
| Shipping cap | 7 ft·•lbs (9.5 N•m) | |
| 3/4" NPT plug | 20 in•lbs (2.3 N•m) | |
| Operating parameters | Maximum pressure | 30 psig (207 kPa) @ 77°F (25°C) |
