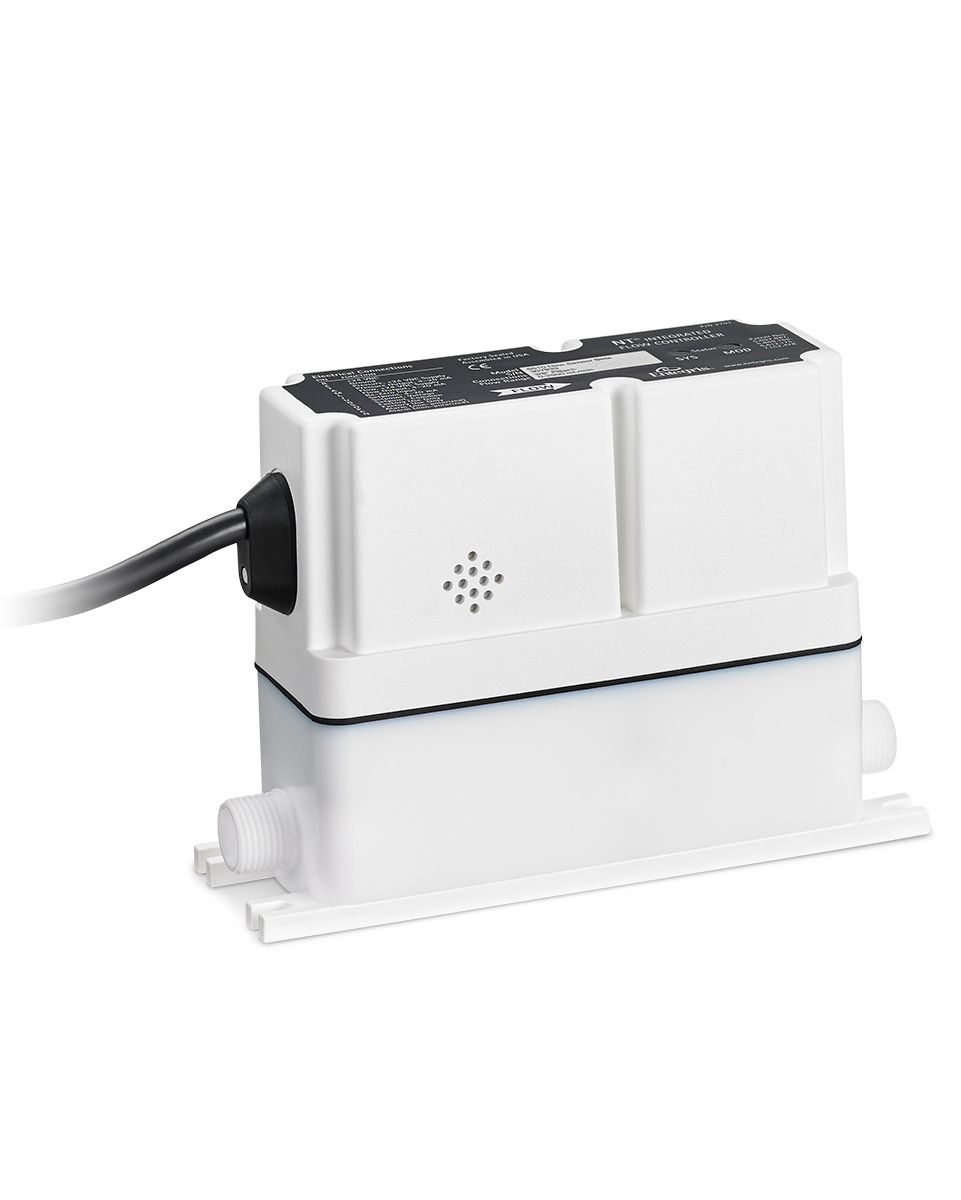

InVue® Integrated Flow Controllers, Model NT6510
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
NT™ Flow Viscosity, Density and Temperature Correction
Use our Flow Viscosity, Density and Temperature Correction tool to calculate a full scale flow correction for media other than DI water at 23°C.
Flow Range: Flow ranges are scaled to zero flow, measurement is from 10-100% of full scale flow range. .
Inlet/Outlet Port Connection: For other options not shown here, please contact Entegris.
Electrical Connector Type: For electrical connector types G01 and G06, a 14-pin mating cable is required for installation. See accessories section for more information.
Product specified with a flared tube connection is packaged with two PVDF nuts. For alternative nut materials, or custom configurations and specifications, please contact Entegris.
For help selecting the correct model, view the Materials of Construction and Chemical Compatibility for Sensing and Control Products technical note found under Product Documentation at the bottom of this page.
Software Download
Windows-based interface for alarm setup, monitoring, and data collection
System Requirements: Windows 7 or 10; 8GB RAM (minimum)
Current software version InVue TechTool 1.0.1.4
The InVue integrated flow controller, NT6510 combines our differential pressure based flowmeter and leading-edge control valve technology to create a closed-loop flow controller ideal for:
- Critical dispense applications
- Chemical spiking and blending
- On-demand chemical mixing
Specifications
Inlet/Outlet port connection | A |
Dimensions |
C |
1/4" Flaretek® tube fitting | 118.1 mm (4.65") | 17.0 mm (0.67") | 187.5 mm (7.38") |
3/8" Flaretek tube fitting | 119.6 mm (4.71") | 17.0 mm (0.67") | 191.0 mm (7.52") |
1/4" PrimeLock® tube fitting | 118.1 mm (4.65") | 17.0 mm (0.67") | 177.8 mm (7.00") |
3/8" PrimeLock tube fitting | 119.6 mm (4.71") | 17.0 mm (0.67") | 177.8 mm (7.00") |
1/4" Super 300 Type Pillar tube fitting | 118.1 mm (4.65") | 17.0 mm (0.67") | 159.3 mm (6.27") |
3/8" Super 300 Type Pillar tube fitting | 119.6 mm (4.71") | 17.0 mm (0.67") | 167.1 mm (6.58") |
Materials of construction | Wetted parts: | Body, valve diaphragms: PTFE |
Sensor interface: CTFE or PFA | ||
Primary O-ring: Perfrez® PXC Ultra | ||
Nonwetted parts: | Polypropylene, PVDF, Viton®, polyurethane, and nylon (in addition to materials listed above) | |
Operating range | 10 –100% of full scale flow | |
Flow control accuracy | ±1% of full scale (Calibrated using DI water @ 23°C [73°F]) | |
Repeatability | ±0.5% full scale | |
Pressure measurement | 0 to 414 kPa (0 to 60 psig) | |
Pressure accuracy | ±1% of full scale | |
Operating pressure | 69 to 414 kPa (10 to 60 psig) | |
Minimum required differential pressure* | 10 psi, differential | |
Output signals | Two 4-20 mA electrically isolated outputs, one for flow and one for pressure | |
Response time | <3 seconds | |
Over-pressure limit | 690 kPa (100 psig) | |
Process temperature | 10° to 65°C (50° to 149°F) | |
Electrical input | 24 VDC (±10%) at 1.2 amps | |
Setpoint input signal | 4 – 20 mA, 0 – 10 VDC, 0 – 5 VDC | |
Enclosure | IP64 | |
Weight | 1.8 kg (4.0 lb) approximate | |
Approvals | CE | |
Software | Windows-based interface for user setup, calibration, monitoring, and data collection System Requirements: Windows 7 or 10, 8GB RAM (minimum) Current software version InVue TechTool 1.0.1.3 |
|
*Minimum required differential pressure is the minimum inlet to outlet fitting differential pressure required to reach full scale flow and response time specifications. Note: Specifications are subject to change without notice. Please Contact Entegris for the most current information. |
The following fitting size and flow range combinations are available: | |||||||
Flow Range (mL/min) | |||||||
TL | TT | T0 | T1 | T2 | T3 | T4 | |
Fitting size | 0-15 | 0-25 | 0-50 | 0-125 | 0-250 | 0-500 | 0-1250 |
1/4" | Yes | Yes | Yes | Yes | Yes* | Yes* | Yes* |
3/8" | Yes** | Yes** | Yes** | Yes** | Yes | Yes | Yes |
*Flaretek and Super 300 Type Pillar only. ** Flaretek only. Please consult Entegris for custom flow range requirements. |
