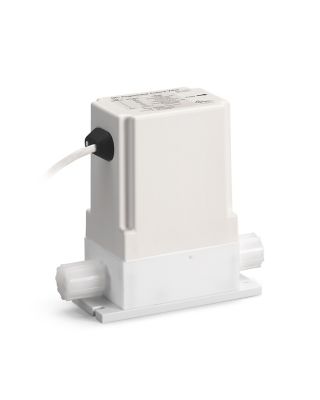

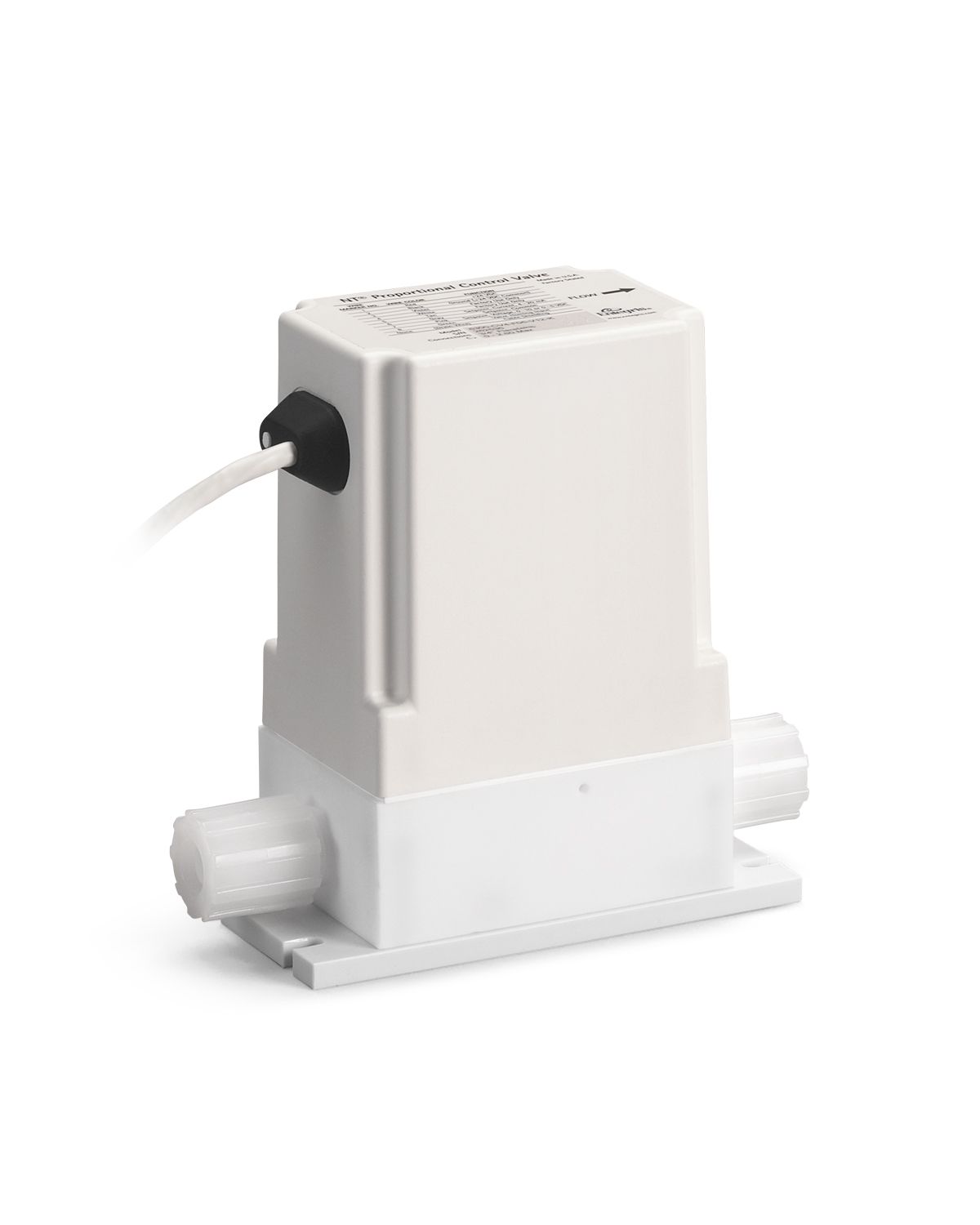

NT™ Proportional Control Valves, Model 6300, Cv up to 2.8
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Inlet/Outlet Port Connections: for PrimeLock® tube fittings please contact Entegris.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
The NT Proportional Control Valve Model 6300 (flow factor Cv 0.16, 0.68, 1.0 and 2.80) is solving today’s flow control challenges by providing a high-purity, linear control valves that can be used on any analog control loop and is ideal for:
- Control for critical dispense, chemical spiking and blending
- Closed-loop control of any separate analog sensor for temperature, pressure, flow, conductivity, etc.
Specifications
| Inlet/Outlet Port Connection 1–4 CV Ranges | Dimensions | ||
| A | B | C | |
| 1⁄4" Flaretek® | 142.2 mm (5.60") | 144.0 mm (5.67") | 19.6 mm (0.77") |
| 3⁄8" Flaretek | 142.2 mm (5.60”) | 144.0 mm (5.67") | 19.6 mm (0.77”) |
| 1⁄2" Flaretek | 144.5 mm (5.69”) | 150.1 mm (5.91”) | 21.6 mm (0.85") |
| 3⁄4" Flaretek | 153.7 mm (6.05”) | 153.7 mm (6.05") | 27.2 mm (1.07") |
| Materials of construction | Wetted parts | Body, PFA |
| Diaphragm, PTFE | ||
| Nonwetted parts | Polypropylene, Viton®, PVDF | |
| Response time | <2 seconds from 5 to 95% full scale | |
| Pressure range* | -100 kPa to 414 kPa (-14.5 psig to 60 psig) | |
| Over pressure limit | 689.5 kPa (100 psig) | |
| Process temperature** | 10° to 65°C (50° to149°F) | |
| Electrical input | 24 VDC ±10%, regulated | |
| Setpoint input signal | 4–20 mA, 0–10 VDC, 0–5 VDC; separate homing line also included | |
| Enclosure | NEMA 5/IP54 | |
| Connection type*** | Flaretek tube fitting | |
| Approvals | CE | |
Note: Specifications are subject to change without notice. Please consult the factory for the most current information.
* Please consult the factory for pressure ranges from 414 kPa to 552 kPa (60 psig to 80 psig).
** Please consult the factory for temperatures from 65° to 80°C (149° to 176°F).
*** For PrimeLock® connections and other options not listed, please contact Entegris.
Successfully Opted for software Updates
Published Dec 16, 2021
Data Sheet
NT™ Proportional Control Valves, Model 6300, Cv up to 2.8
301.8 kB
Published Dec 16, 2021
Data Sheet
NT™ Proportional Control Valves, Model 6300, Cv up to 2.8 - A4
301.7 kB
Published Oct 1, 2023
Technical Note
Materials of Construction and Chemical Compatibility for Sensing and Control Products
118.5 kB
Published Apr 13, 2018
Certificate
CE Declaration of Conformity - Proportional Control Valve, 6300
334.2 kB
Part Numbers
| Part Number | Cv | Inlet/Outlet Port Connection | Electrical Connector Type | Setpoint Input Signal, Controller Type |
|---|---|---|---|---|
| 6300CV2F3B12K | 0.68 | 3/8" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 4-20 mA |
| 6300CV2F3B12L | 0.68 | 3/8" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 0-10 VDC |
| 6300CV2F3B12M | 0.68 | 3/8" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 0-5 VDC |
| 6300CV2F3G1K | 0.68 | 3/8" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 4-20 mA |
| 6300CV2F3G1L | 0.68 | 3/8" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 0-10 VDC |
| 6300CV2F3G1M | 0.68 | 3/8" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 0-5 VDC |
| 6300CV3F4B12K | 1.0 | 1/2" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 4-20 mA |
| 6300CV3F4B12M | 1.0 | 1/2" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 0-5 VDC |
| 6300CV3F4G1K | 1.0 | 1/2" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 4-20 mA |
| 6300CV3F4G1L | 1.0 | 1/2" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 0-10 VDC |
| 6300CV3F4G1M | 1.0 | 1/2" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 0-5 VDC |
| 6300CV4F6B12K | 2.80 | 3/4" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 4-20 mA |
| 6300CV4F6B12L | 2.80 | 3/4" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 0-10 VDC |
| 6300CV4F6B12M | 2.80 | 3/4" Flaretek® tube fitting | FEP-jacketed 12' (366 cm) pigtail electrical cable | 0-5 VDC |
| 6300CV4F6G1K | 2.80 | 3/4" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 4-20 mA |
| 6300CV4F6G1L | 2.80 | 3/4" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 0-10 VDC |
| 6300CV4F6G1M | 2.80 | 3/4" Flaretek® tube fitting | PVC-jacketed 1' (30 cm) electrical cable terminated with 14 pin Turck connector (mating cable sold separately) | 0-5 VDC |
Inlet/Outlet Port Connections: for PrimeLock® tube fittings please contact Entegris.
