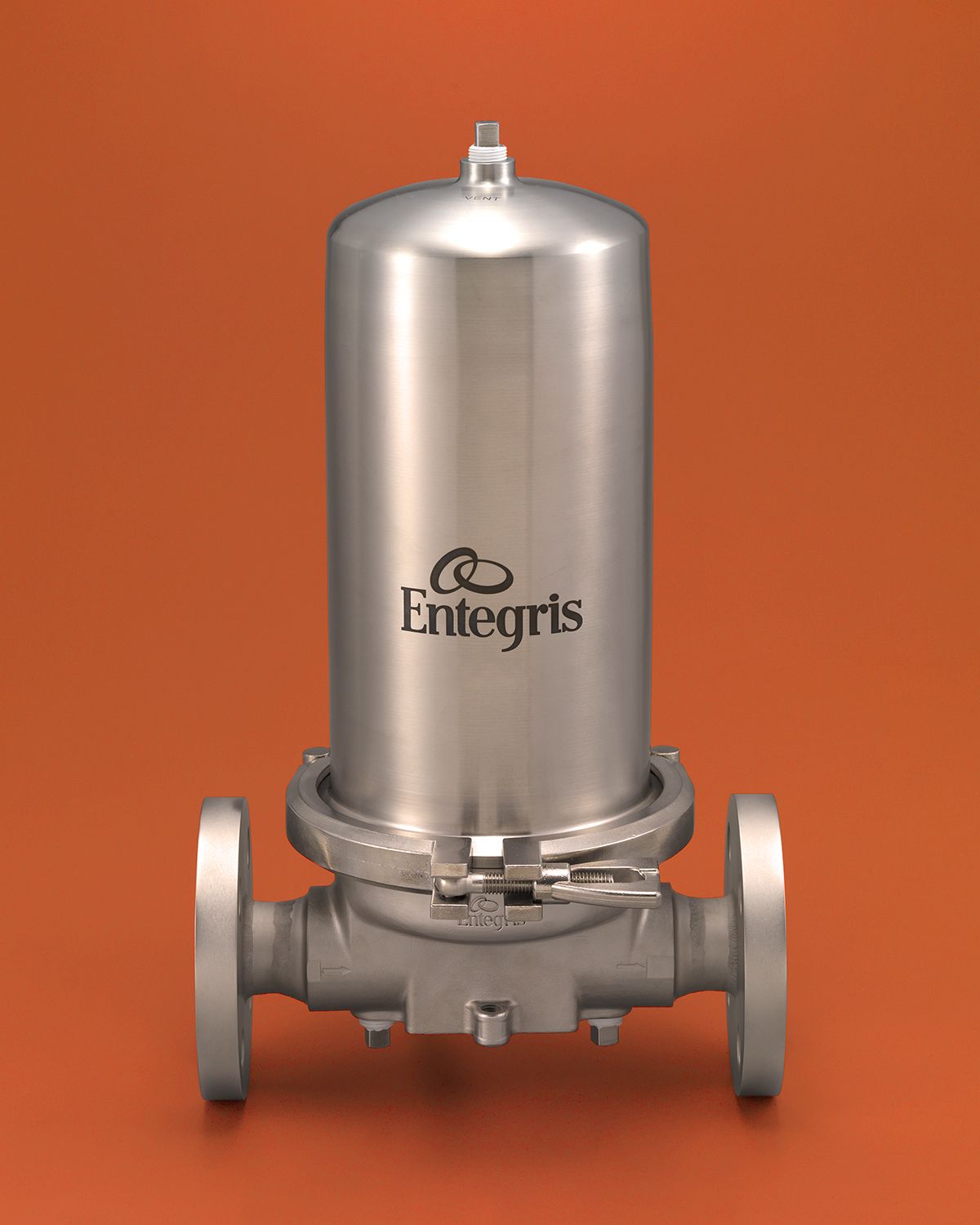

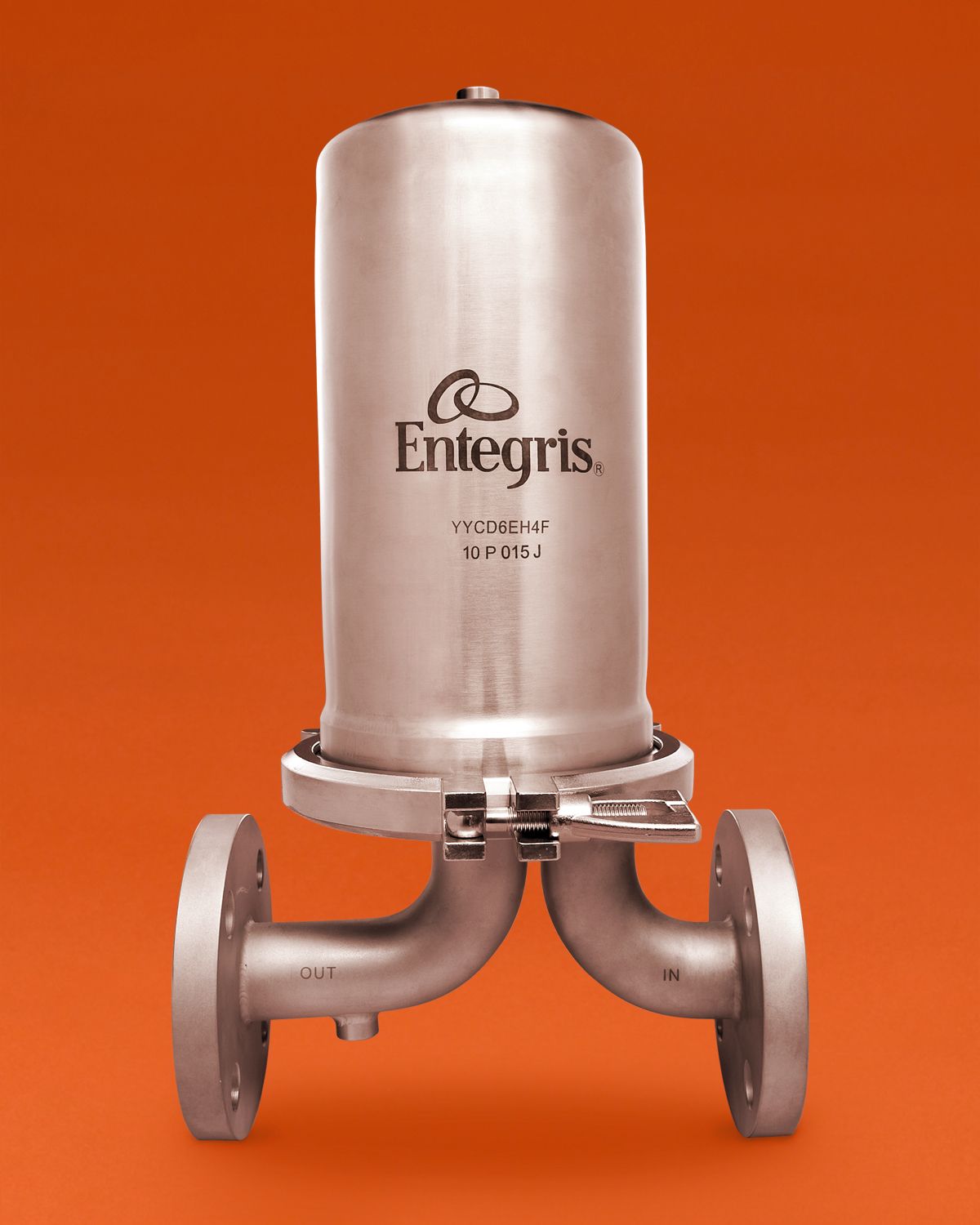

226 HP Half Dove Tail Housing Kit

Bulk, High pressure stainless steel aggressive acid/base and DI water filter housing with high flow rate performance in semiconductor and chemical manufacturing applications

Read More Read Less

Specify Your Part

Flange Type

Connection

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Symbols

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications 226 HP Half Dove Tail Housing Kit Applications

Industry: Semiconductor, Chemical Manufacturing, Flat Panel Display, Data Storage
Process: Facilities
Chemical: Aggressive Acids and Bases, Solvents
Installation Point: Bulk

Specifications

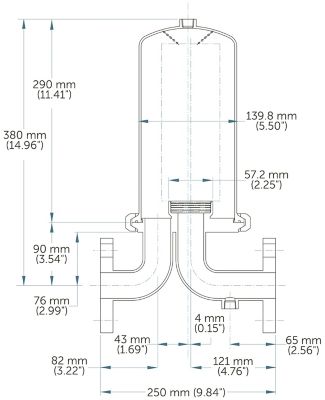

Drawings

Product Specifications

Materials:	Head, bowl, drain, vent, plug, spring: SUS316L stainless steel
	Clamp: Equivalent 304 stainless steel
	Surface finish (internal/external): Head - Electropolishing; Bowl - Buff #400
Connections:	Vent/drain: 1⁄4”, 3⁄8” RC (PT)
	Inlet/outlet: 32/40A JIS 20K FF
	Housing: G-145 EPDM
	Cartridge: CD-0/F (226)
Operating conditions:	Maximum operating pressure: 1.5 MPa @ 80°C (176°F) - static

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Aug 4, 2016 Data Sheet 226 Cast HP Half Dove Tail Housings

Download PDF 669.8 kB

Published Jul 28, 2016 Data Sheet 226 HP Half Dove Tail Housings

Download PDF 716.1 kB

Part Numbers

226 HP Half Dove Tail Housing Kit Part Numbers

Part Number	Flange Type	Connection
YYC06FH3F	JIS 20K 32A flange without drain	Code F
YYC06FH4F	JIS 20K 40A flange without drain	Code F
YYMD60H3F	JIS 20K 32A flange	Code 6
YYMD60H4F	JIS 20K 40A flange	Code 6
YYMD60H5P	1 1/4" PTF (Rc)	Code 6
YYMD60H6P	1 1/2" PTF (Rc)	Code 6
YYMD6FH3F	JIS 20K 32A flange	Code F
YYMD6FH4F	JIS 20K 40A flange	Code F
YYMD6FH5P	1 1/4" PTF (Rc)	Code F
YYMD6FH6P	1 1/2" PTF (Rc)	Code F
