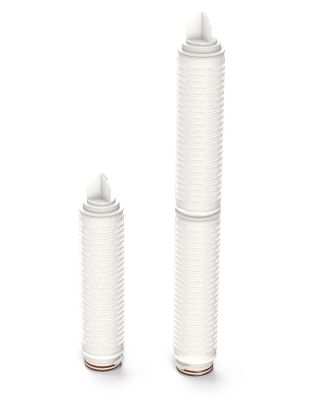

FBP Cartridge Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Facility water
- Bottled water
- Soft drinks
Specifications
| Length | A (Code 0) | B (Code F) | C (Code 5) | D (Code 7) |
| 5" | 160 mm (6.3") | 137 mm (5.4") | 199 mm (7.8") | 201 mm (7.9") |
| 10" | 273.5 mm (10.8") | 254 mm (10.0") | 314 mm (12.4") | 316 mm (12.0") |
| 20" | 518.5 mm (20.4") | 500 mm (19.7") | 559 mm (22.0") | 561 mm (22.1") |
| 30" | 763.5 mm (30.1") | 745 mm (29.3") | 804 mm (31.7") | 806 mm (31.7") |
| 40" | 1008 mm (39.7") | 990 mm (39.0") | 1048 mm (41.3") | 1050 mm (41.3") |
| Retention ratings | 0.1,0.2,0.45,1.0,3.0,5.0,10,20 µm | |
| Materials | Media | Polypropylene |
| Support | Polypropylene | |
| Sleeve, core, top, end caps | Polypropylene | |
| O-ring | Silicone | |
| Gasket (Code F) | Silicone | |
| Filtration area | ≥0.43 m2/10" cartridge | |
| Maximum operating conditions | Maximum forward differential pressure | 5 bar @ 25°C (77°F), 2.0 bar @ 80°C (176°F) |
| Sanitization cycles | Resistance with 50 cycles of hot water sanitization, 30 min at 85°C (181°F) | |
| Material toxicity | All components meet the requirements of the USP <88> Reactivity Test for Class VI Plastics | |
| Filters meet the requirement of USP<87> Biological Reactivity Tests in Vitro cytotoxicity | ||
| Animal free | Meets the EU directive for animal free CPMP EMA/410/01 and 21 CFR parts 189.5 | |
| Indirect food additive | Meets the FDA Indirect Food Additive requirements cited in 21 CFR 177 | |
| Food contact material | Meets the Regulation (EU) No. 1935 /2004 | |
| Quality | Manufactured in accordance with ISO 9001 and ISO 13485 certified quality management system | |
