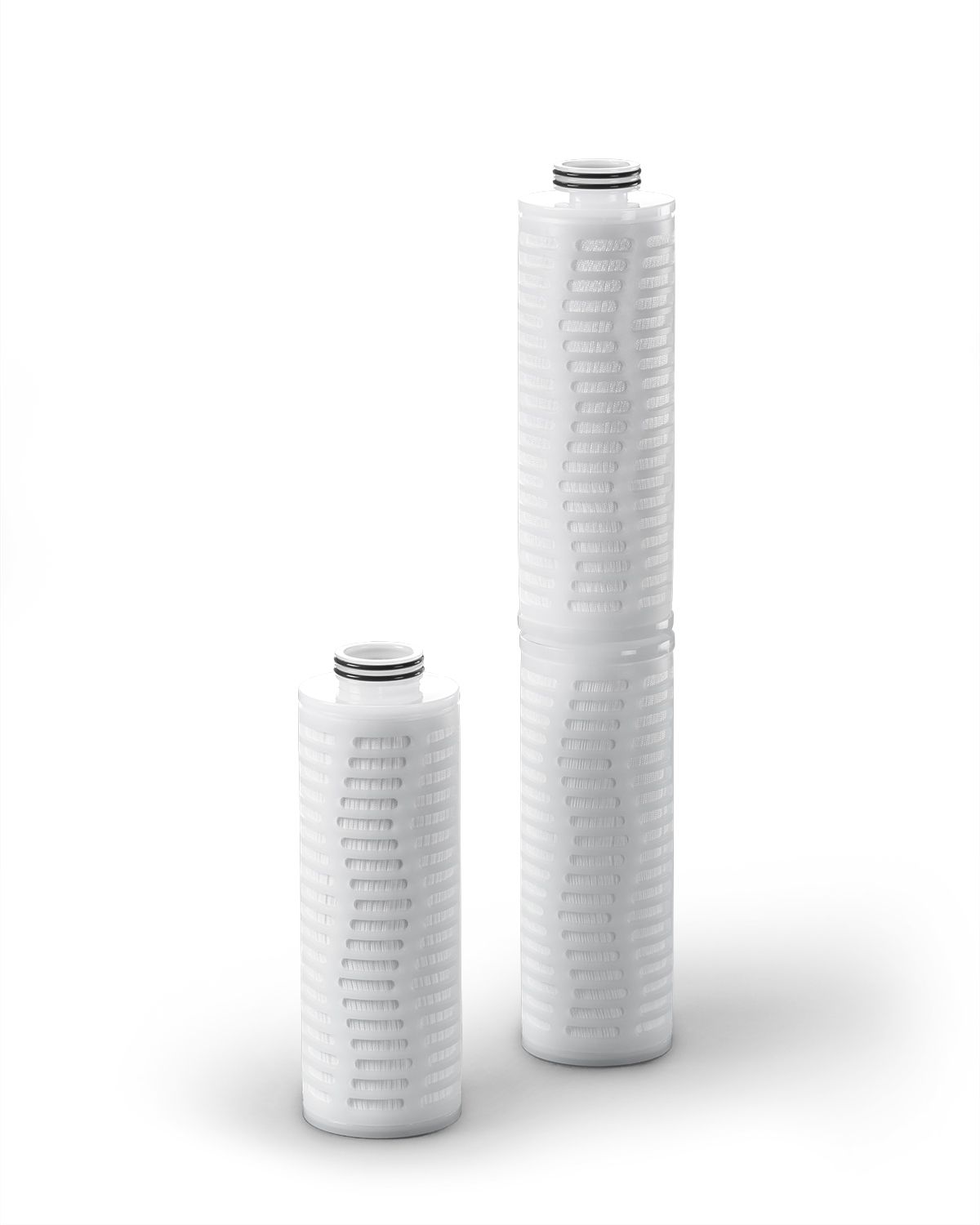

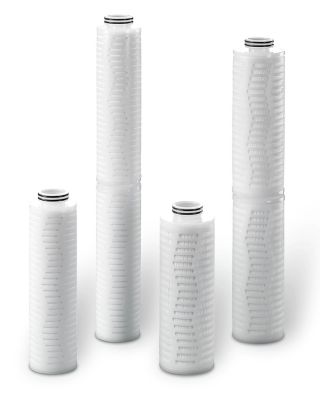

Microgard™ UC Filter

Best-in-class, clean, bulk photochemical filter, providing superior flow rate performance and excellent contaminant retention capabilities in sub 10 nm technology nodes.

Delivers contamination control in bulk photochemical manufacturing and solvent-based photolithography applications
Advanced device design enables higher chemical throughput and flow rate performance
Available in ultraclean or standard clean versions which reduce particle shedding and metal and organic extractables in sub-28 nm nodes
A higher throughput (HT) design is available for select 10" and 20" filter types

Read More Read Less

Specify Your Part

Typical Flow Rate

Length

Retention Rating

Connection

Diameter

O-ring

Chemlock® Key

Filter Cleaning

Prewet

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Microgard™ UC Filter Applications

Bulk solvent chemical filtration
Bulk photochemical filtration
Chemical distribution systems

Specifications

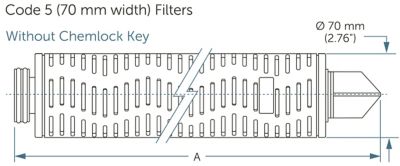

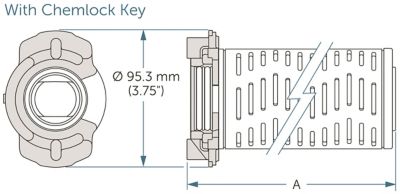

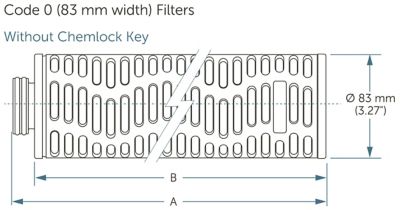

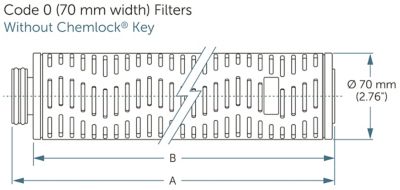

Drawings

Performance Data

Product Specifications

Materials	Membrane		Asymmetric UPE*
			Clean Material Resin
	Sleeve, core, supports		High density polyethylene (HDPE)
	O-ring		E-FKM (AS568-222)
			Retention Ratings
			Standard clean	Ultraclean
Membrane area (based on diameter)	4"	83 mm: 0.9 m² (9.7 ft²)	3 nm	__
	10"	70 mm: 1.31 m² (14.1 ft²)	3, 5, 10 nm	3, 5 nm
		83 mm: 1.85 m² (19.9 ft²)	10 nm	__
	10" HT**	70 mm 1.77 m² (19.1 ft²)	3, 5 nm	3 nm
		83 mm: 2.61 m² (28.1 ft²)	5 nm	__
	20"	70 mm: 2.62 m² (28.2 ft²)	3, 5, 10 nm	3, 5 nm
		83 mm: 3.71 m² (39.9 ft²)	3, 5, 10 nm	3, 5 nm
	20" HT**	70 mm: 3.55 m² (36.2 ft²)	3, 5 nm	3 nm
		83 mm: 5.22 m² (56.2 ft²)	__	3 nm
	30"	70 mm: 3.94 m² (42.4 ft²)	3, 10 nm	__
		83 mm: 5.63 m² (60.6 ft²)	10 nm	__
Operating conditions	Maximum inlet pressure		0.34 MPa (3.4 bar, 50 psi) @ 25°C (77°F)
	Maximum forward/reverse differential pressure		0.24 MPa (2.4 bar, 35 psi) @ 25°C (77°F)
	Maximum operating temperature		60°C (140°F)
Metallic extractables	Testing conducted for Standard clean: 13 metals		Testing conducted for Ultraclean: 23 metals

*UHMWPE - long-form acronym for UPE - Ultra-high moelcular weight polyethylene.
**The high-throughput device design is incorporated into select 10" and 20" units, excluding those with a 10 nm retention rating.
