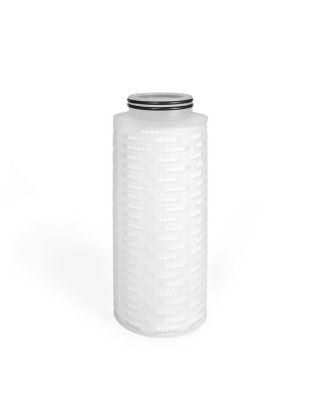

Panelgard® 226 Plus Filter

Download Image

Point of tool, DI water and dilute acid/base filter with high flow rate and good contaminant retention performance in flat panel display cleaning applications.

Read More Read Less

Specify Your Part

Membrane/Media

Retention Rating

O-ring

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Panelgard® 226 Plus Filter Applications

Industry: Flat Panel Display
Process: Chemical, Cleaning
Chemistry: Dilute Acids, Dilute Bases, DI Water
Installation Point: Point of Tool

Specifications

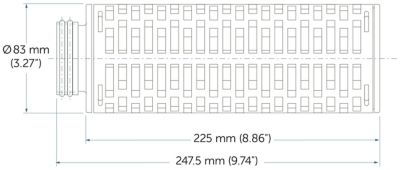

Drawings

Performance Data

Product Specifications

		Plus PES	Plus PP
Materials:	Membrane	Hydrophilic polyethersulfone (PES)	Polypropylene
	Support	Polypropylene	Polypropylene
	Core/Sleeve	Polypropylene	Polypropylene
	O-Rings	EPDM	EPDM
		FKM	Fluoroelastomer
		E-FKM (encapsulated fluoroelastomer)	E-FKM (encapsulated fluoroelastomer)
Dimensions (nominal):	Length	247.5 mm (9.74")	247.5 mm (10")
	Diameter	83 mm (3.27")	83 mm (3.27")
Retention rating		0.1 µm, 0.2 µm, 0.45 µm, 1.0 µm,	1.2 µm, 2.5 µm, 5.0 µm, 10 µm, 20 µm, 30 µm
Operating conditions:	Maximum forward differential pressure:	0.41 MPa (4.1 bar, 59.46 PSI) @ 20°C (68°F)	0.41 MPa (4.1 bar, 59.46 PSI) @ 20°C (68°F)
	Maximum reverse differential pressure:	0.15 MPa (1.5 bar, 21.75 PSI) @ 20°C (68°F)	0.15 MPa (1.5 bar, 21.75 PSI) @ 20°C (68°F)
	Maximum Operating temperature	60°C (140°F)	60°C (140°F) at the above condition

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Oct 1, 2025 Data Sheet Panelgard® 226 PP Plus Cartridge Filters

276.3 kB

Published Jul 29, 2016 Data Sheet Panelgard™ 226 Plus PES Cartridge Filters

170.7 kB

Part Numbers

Panelgard® 226 Plus Filter Part Numbers

Part Number	Membrane/Media	Retention Rating	O-ring
PGFG61P01	PTFE	0.2 µm	Coated Fluorine Rubber
PGFG61PE1	PTFE	0.2 µm	Coated Fluorine Rubber
PGFH61P01	PTFE	0.5 µm	Coated Fluorine Rubber
PGFS61P01	PTFE	3 µm	Coated Fluorine Rubber
PGPA61P01	PTFE	1 µm	Coated Fluorine Rubber
PGPC61P01	PTFE	10 µm	Coated Fluorine Rubber
PGPH61P01	PTFE	0.5 µm	Coated Fluorine Rubber
PGPS61P01	PTFE	3 µm	E-FKM
PGPV61P01	PTFE	0.45 µm	E-FKM
PZ1261P01	PP	1.2 µm	E-FKM
PZ1261PE1	PP	1.2 µm	EPDM
PZ1H61PE1	PP	10 µm	EPDM
PZ2561PE1	PP	2.5 µm	EPDM
PZ2H61PE1	PP	20 µm	EPDM
PZ5061PE1	PP	5 µm	EPDM
PZSA61P01	PES	1.0 µm	E-FKM
PZSA61PE1	PES	1.0 µm	EPDM
PZSG61P01	PES	0.2 µm	E-FKM
PZSG61PE1	PES	0.2 µm	EPDM
PZSH61P01	PES	0.45 µm	E-FKM
PZSH61PE1	PES	0.45 µm	EPDM
PZSV61P01	PES	0.1 µm	E-FKM
PZSV61PE1	PES	0.1 µm	EPDM
