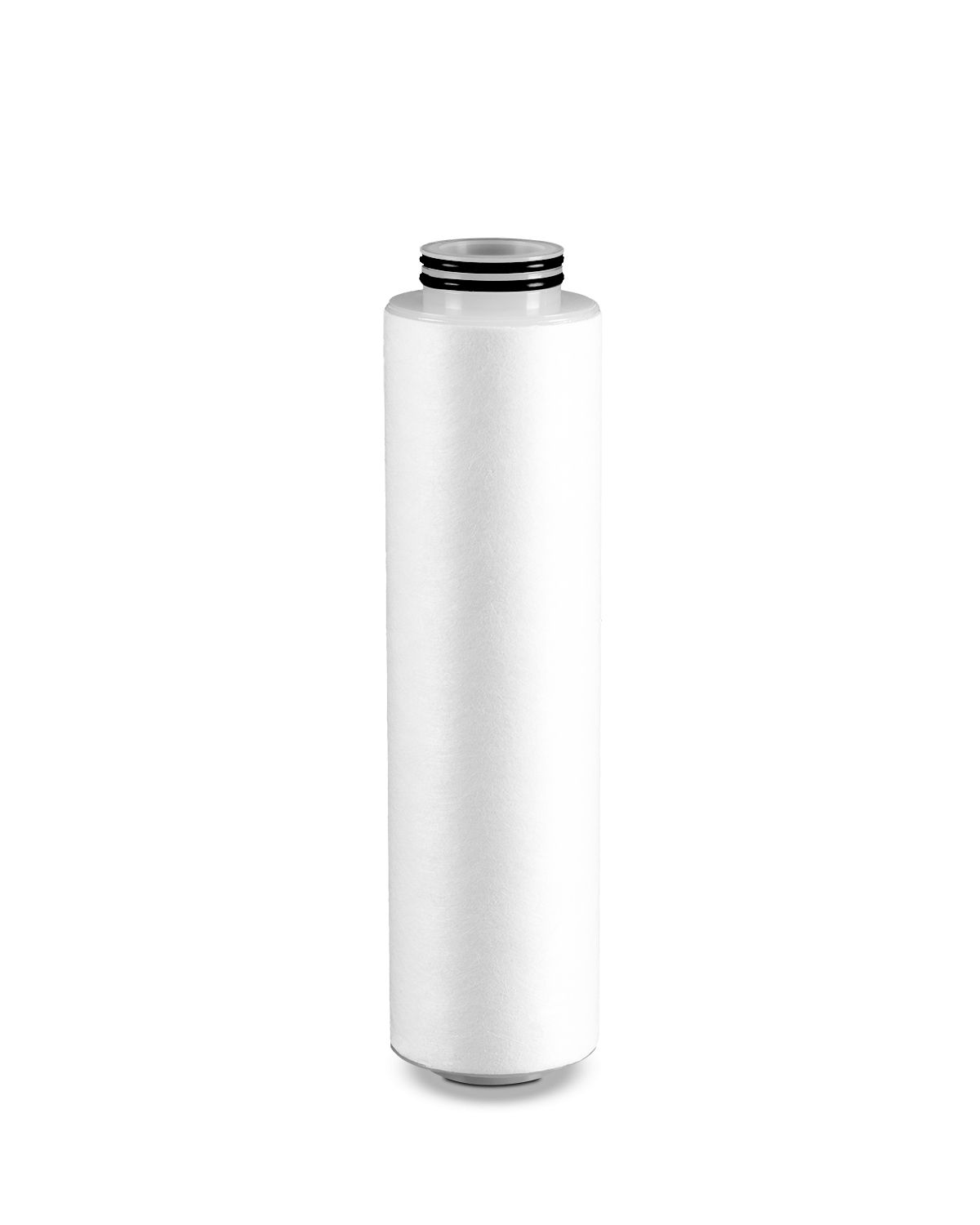

Planargard® NMB Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Ceria and colloidal silica bulk slurry filtration
- Sub-fab CDS filtration
Specifications
| Code 0 Filters Length | A | B | Code F Filters Length | A | B |
| 10" | 240 mm ±2 mm (9.45" ±0.08") | 263 mm ±2 mm (10.35" ±0.08") | 10" | 240 mm ±2 mm (9.45" ±0.08") | 251 mm ±2 mm (9.88" ±0.08") |
| 20" | 494 mm ±2 mm (19.45" ±0.08") | 517 mm ±2 mm (20.35" ±0.08") | 20" | 494 mm ±2 mm (19.45" ±0.08") | 505 mm ±2 mm (19.88" ±0.08") |
| 30" | 748 mm ±3 mm (29.45" ±0.12") | 771 mm ±3 mm (30.35" ±0.12") | 30" | 748 mm ±3 mm (29.45" ±0.12") | 758 mm ±3 mm (29.84" ±0.12") |
| 40" | 1002 mm ±3 mm (39.45" ±0.12") | 1024 mm ±3 mm (40.31" ±0.12") | 40" | 1002 mm ±3 mm (39.45" ±0.12") | 1013 mm ±3 mm (39.88" ±0.12") |
| Materials | Membrane | Polypropylene |
| Support | Polypropylene | |
| Cartridge O-ring | EPR, FKM, silicone, 2-222 | |
| Retention rating | Planargard NMB | 0.05, 0.07, 0.1, 0.3, 0.5 µm |
| Planargard NMB Plus | 0.7, 1, 3, 5 µm | |
| Maximum operating conditions | Maximum temperature | 80°C (176°F) |
| Maximum forward differential pressure | 0.48 MPa (4.8 bar, 70 psi) at 25°C (77°F) |
Successfully Opted for software Updates
Published Jan 1, 2014
Application Note
CMP Filter Characterization with Leading Slurry Particles
Download PDF
587.4 kB
Published Apr 24, 2018
Application Note
Effect of Flow Rate and Concentration on Filtration Efficiency of Colloidal Abrasives
Download PDF
588.9 kB
Part Numbers
| Part Number | Length | Retention Rating | Connection | O-ring |
|---|---|---|---|---|
| PNB0101006 | 10" | 0.1 µm | Code 0 | Silicone |
| PNB01010E6 | 10" | 0.1 µm | Code 0 | EPR |
| PNB01010V6 | 10" | 0.1 µm | Code 0 | FKM |
| PNB0102006 | 20" | 0.1 µm | Code 0 | Silicone |
| PNB01020E6 | 20" | 0.1 µm | Code 0 | EPR |
| PNB01020V6 | 20" | 0.1 µm | Code 0 | FKM |
| PNB0103006 | 30" | 0.1 µm | Code 0 | Silicone |
| PNB01030E6 | 30" | 0.1 µm | Code 0 | EPR |
| PNB0104006 | 40" | 0.1 µm | Code 0 | Silicone |
| PNB01040E6 | 40" | 0.1 µm | Code 0 | EPR |
| PNB01F10E6 | 10" | 0.1 µm | Code F | EPR |
| PNB01F20E6 | 20" | 0.1 µm | Code F | EPR |
| PNB01F30E6 | 30" | 0.1 µm | Code F | EPR |
| PNB01F40E6 | 40" | 0.1 µm | Code F | EPR |
| PNB03010E6 | 10" | 0.3 µm | Code 0 | EPR |
| PNB0302006 | 20" | 0.3 µm | Code 0 | Silicone |
| PNB03020E6 | 20" | 0.3 µm | Code 0 | EPR |
| PNB03030E6 | 30" | 0.3 µm | Code 0 | EPR |
| PNB03040E6 | 40" | 0.3 µm | Code 0 | EPR |
| PNB03F10E6 | 10" | 0.3 µm | Code F | EPR |
| PNB03F20E6 | 20" | 0.3 µm | Code F | EPR |
| PNB03F30E6 | 30" | 0.3 µm | Code F | EPR |
| PNB03F40E6 | 40" | 0.3 µm | Code F | EPR |
| PNB05010E6 | 10" | 0.5 µm | Code 0 | EPR |
| PNB0502006 | 20" | 0.5 µm | Code 0 | Silicone |
| PNB05020E6 | 20" | 0.5 µm | Code 0 | EPR |
| PNB05030E6 | 30" | 0.5 µm | Code 0 | EPR |
| PNB05040E6 | 40" | 0.5 µm | Code 0 | EPR |
| PNB05F10E6 | 10" | 0.5 µm | Code F | EPR |
| PNB05F20E6 | 20" | 0.5 µm | Code F | EPR |
| PNB05F30E6 | 30" | 0.5 µm | Code F | EPR |
| PNB05F40E6 | 40" | 0.5 µm | Code F | EPR |
| PNBA7010E6 | 10" | 0.07 µm | Code 0 | EPR |
| PNBA7010V6 | 20" | 0.07 µm | Code 0 | FKM |
| PNBA7020E6 | 20" | 0.07 µm | Code 0 | EPR |
| PNBA7020E6Q | 20" | 0.07 µm | Code 0 | EPR |
| PNBA7020V6 | 20" | 0.07 µm | Code 0 | FKM |
| PNBA7030E6 | 30" | 0.07 µm | Code 0 | EPR |
| PNBA7030V6 | 30" | 0.07 µm | Code 0 | FKM |
| PNBA7040E6 | 40" | 0.07 µm | Code 0 | EPR |
| PNBA7040V6 | 40" | 0.07 µm | Code 0 | FKM |
| PNBA7F10E6 | 10" | 0.07 µm | Code F | EPR |
| PNBA7F20E6 | 20" | 0.07 µm | Code F | EPR |
| PNBA7F30E6 | 30" | 0.07 µm | Code F | EPR |
| PNBA7F40E6 | 40" | 0.07 µm | Code F | EPR |
